Completness check of the product
Before installation of the outdoor panel, it is necessary to check that
it is complete and all components are available.
Outdoor panel kit includes:
Outdoor panel
Flush mount bracket
Manual
Set of wires with connectors for connection of power supply,
lock, and additional modules
A set of plugs for connections
Wrench set screws

Electrical connection

After verifying the device's completeness, you can switch to the outdoor panel
connection.
For connection you will need::
An Ethernet UTP CAT5 or higher cable connected to a network
switch / router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 V, 2 amps, if there is no PoE.
Wires must be brought for the connection of alarm loops and home
automation (optional).
You can connect any type of electromechanical or electromagnetic lock for which the switched current
does not exceed 5 Amps.
Power supply
DC
for the panel
+12V
+
-
Electromechanical
lock
+12V GND NC COM
+12V
SH-45 GND
Exit Button

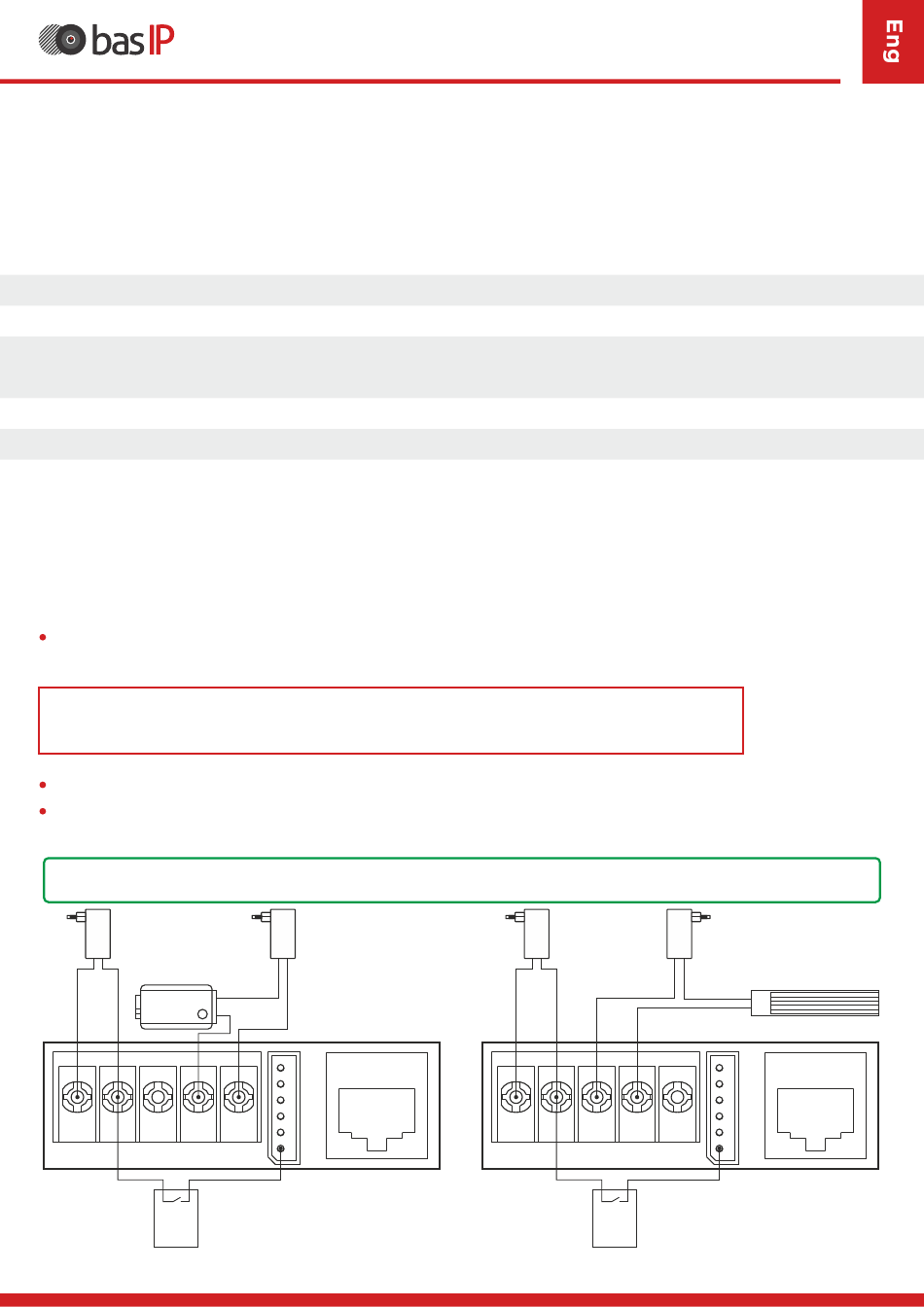

Connection scheme of electromechanical lock
using external power supply for panel and the lock.
Power supply
DC
for the lock
+12V
+
-
485-
LAN (PoE)
485+
DS
DIN
GND
EXIT
NO
Power supply
DC
for the panel
+12V
+
- -
+12V GND NC COM
+12V
SH-45 GND
Exit Button
Connection scheme of electromagnetic lock
using external power supply for panel and the lock.
3
Power supply
DC
for the lock
+12V
+
Electromagnetic Lock
485-
LAN (PoE)
485+
DS
DIN
GND
EXIT
NO
