Electrical Connection - BAS-IP AA-12FB User Manual

EAN: 5060514912829 (BLACK)
EAN: 5060514912843 (GOLD)
Completeness check of the product
Before installation of the outdoor panel, it is necessary to check that
it is complete and all components are available.
Outdoor panel kit includes:
Outdoor panel
Flush mount bracket
Manual
Set of wires with connectors for connection of power supply,
lock, and additional modules
A set of cups
Set of screws with a wrench

Electrical connection

After verifying the device's completeness, you can switch to the outdoor panel
connection.
For connection you will need:
An Ethernet UTP CAT5 or higher cable connected to a PoE network switch
or regular switch/router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 V, 2 amps.
Less
N.C.
Opening
lock time
adjustment
N.O.
More
Switching
contact type:
normally open
or normally closed
Power
-
+
+12 V
Exit Output to connect
button electromechanical lock

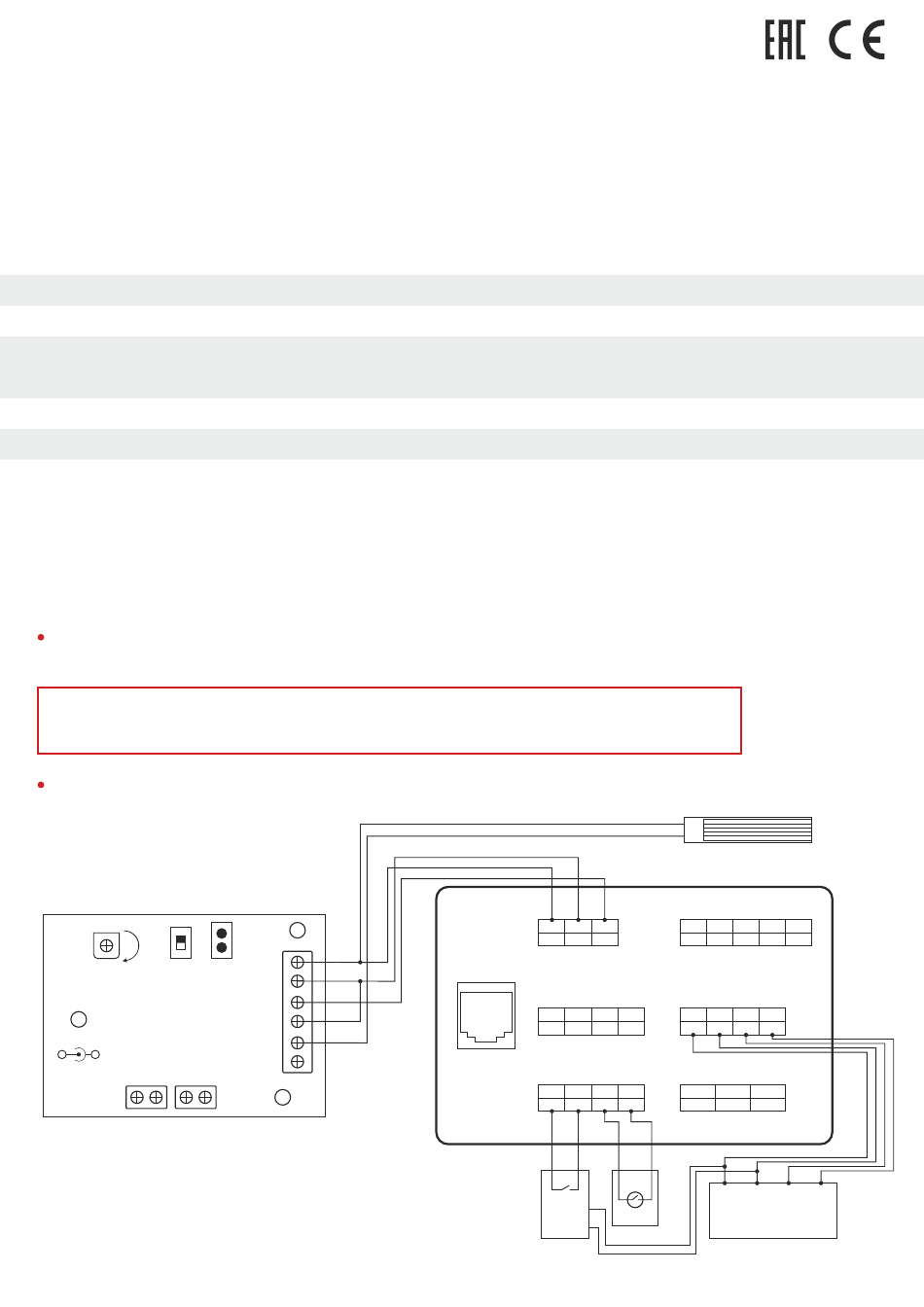

Connection scheme of electromagnetic lock using
uninterruptible power supply UPS-DP/S
EAN: 5060514912836 (SILVER)
GND
Contact
1. +12V
Fire alarm
input
2. Ground
3. Lock
4. COM
5. N.C./N.O.
6. Unused
1 2 3
+12V GND Lock
Power
LAN
Wiegand output
1 2 3 4
+5V GND D0 D1
Exit Button/Door Sensor
1 2 3 4
Exit GND Din DS
+12V
GND
Door Sensor
SH-45
Exit Button
1 pc
1 pc
1 pc
1 pc
1 pc
1 pc
Electromagnetic Lock
1 2 3 4 5
NC NC COM COM NO
Relay outputs to lock
RS485
1 2 3 4
+12V GND 485+ 485-
RS232 (Option)
Green Black White
RX GND TX
SH-42
(optional)
