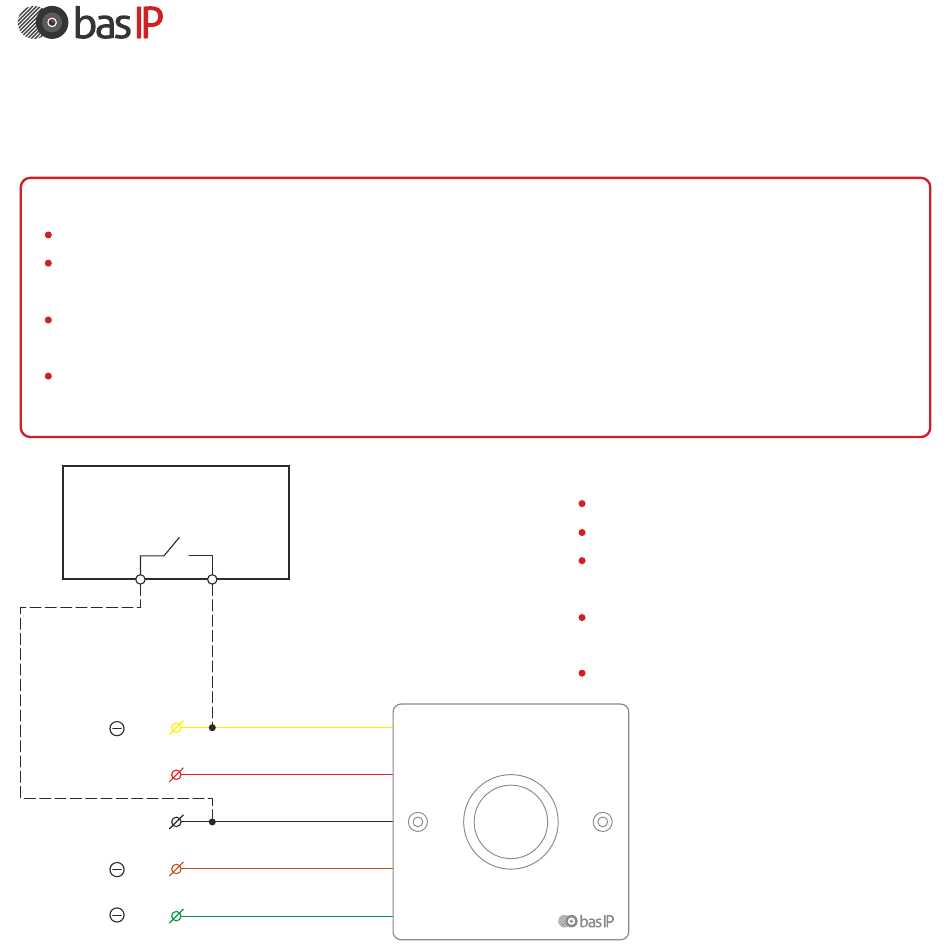

Electrical connection

After verifying the device's completeness, you can switch to the exit button
connection.
IMPORTANT
It is strictly forbidden to supply more than + 12.2V to the SH-47T button.
Do not load the output contact of the button with a current exceeding
100 mA.
It is strictly forbidden to use the SH-47T button to use the power supply
used to power the lock.
It is necessary to use a separate power supply to which locks and other
high-consumption equipment are not connected.
CONTROLLER
←
Out
←
Input
←
Input
Yellow (-)
Red (+)
Black (-)
Brown (-)
Green (-)
Purpose of wires:
Red: + 12V (+ 1%, - 15%).
Black: Ground (General).
Brown: Transfer to trigger
mode.
Green: Changes the backlight
color to green.
Yellow: Controlled output.
