Electrical Connection - BAS-IP SP-03 User Manual

EAN: 5060514913062 (BLACK)
Completness check of the product
Before installing the monitor, be sure to check that it is complete and all
components are available.
The kit includes:
Device
Wall mounting bracket
Manual
A set of wires with connectors for connecting alarm loops
and home automation
Resistors for alarm loops
Installation screws

Electrical connection

After verifying the device's completeness, you can switch to the connection.
To connect monitor you will need:
An Ethernet UTP CAT5 or higher cable connected to a network
switch / router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 Volts DC if there isn't PoE.
Wires must be brought for the connection of alarm loops and home
automation (optional).
EAN: 5060514913079 (WHITE)
Power LAN (PoE)
-
+
+12 Volts DC

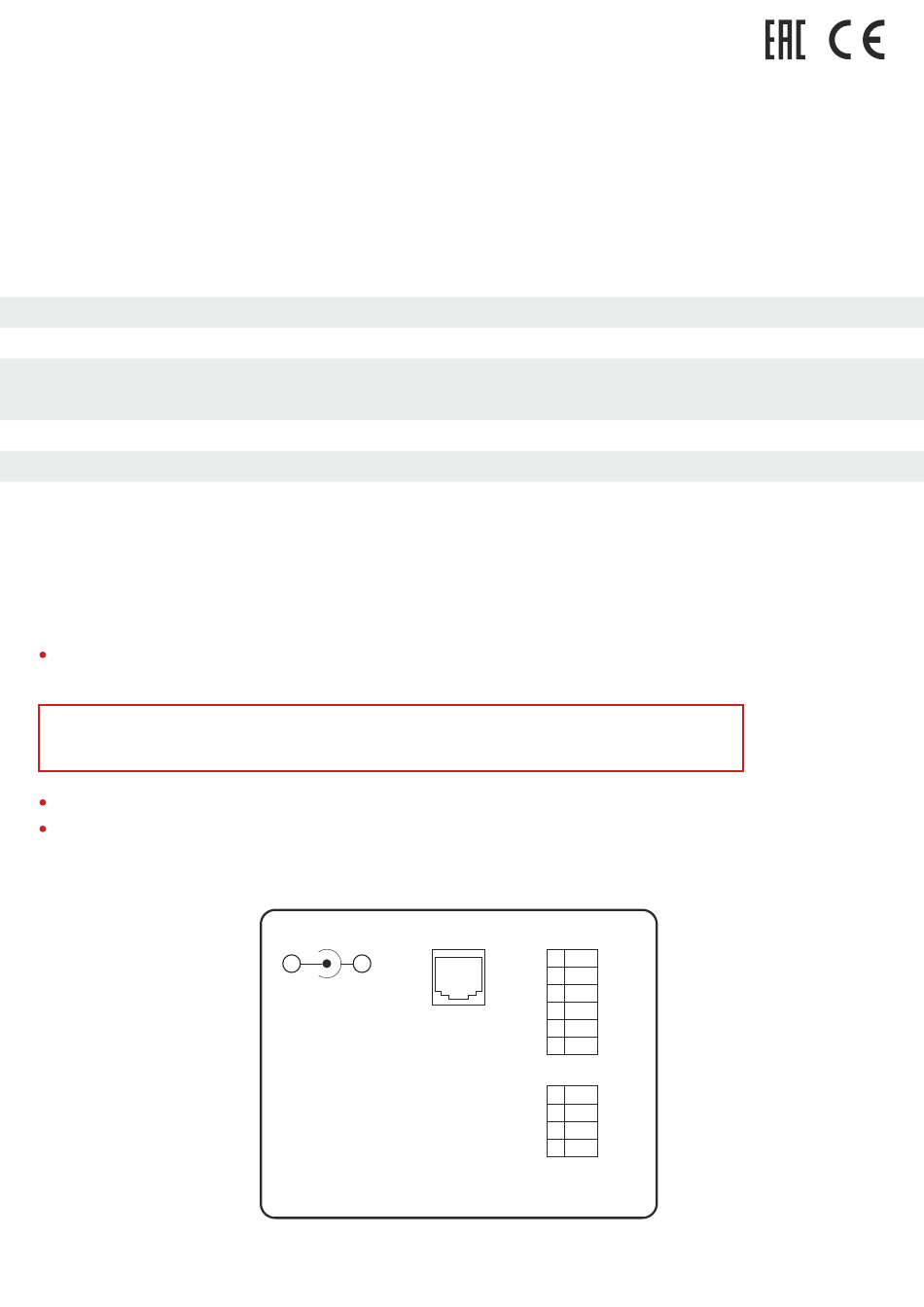

The connection scheme of all components
Siren/Alarm Loops
1 +U
2 GND
3 AL1
4 AL2
5 AL3
6 AL4
RS 485
1 +12V
2 GND
3 485+
4 485-
1 pc
1 pc
1 pc
1 pc
4 pcs
2 pcs
