Electrical Connection - BAS-IP AV-04SD User Manual

Completness check of the product
Before installation of the outdoor panel, it is necessary to check that
it is complete and all components are available.
Outdoor panel kit includes:
Outdoor panel
Surface mounting bracket
Manual
Set of wires with connectors for connection of power supply,
lock, and additional modules
Wrench set screws

Electrical connection

After verifying the device's completeness, you can switch to the outdoor panel
connection.
For connection you will need::
An Ethernet UTP CAT5 or higher cable connected to a network
switch / router.
Cable length recommendations
The maximum length of the UTP CAT5 cable segment should not exceed 100 meters,
according to the IEEE 802.3 standard.
Power supply at +12 V, 2 amps, if there is no PoE.
You can connect any type of electromechanical or electromagnetic lock for which the switched current
does not exceed 1 Amp.
Power supply
for the panel
DC
+12V
+
-
Power Peripheral Interface
+12V GND 485+ 485- NC COM
DC12V
SH-42
(optional)

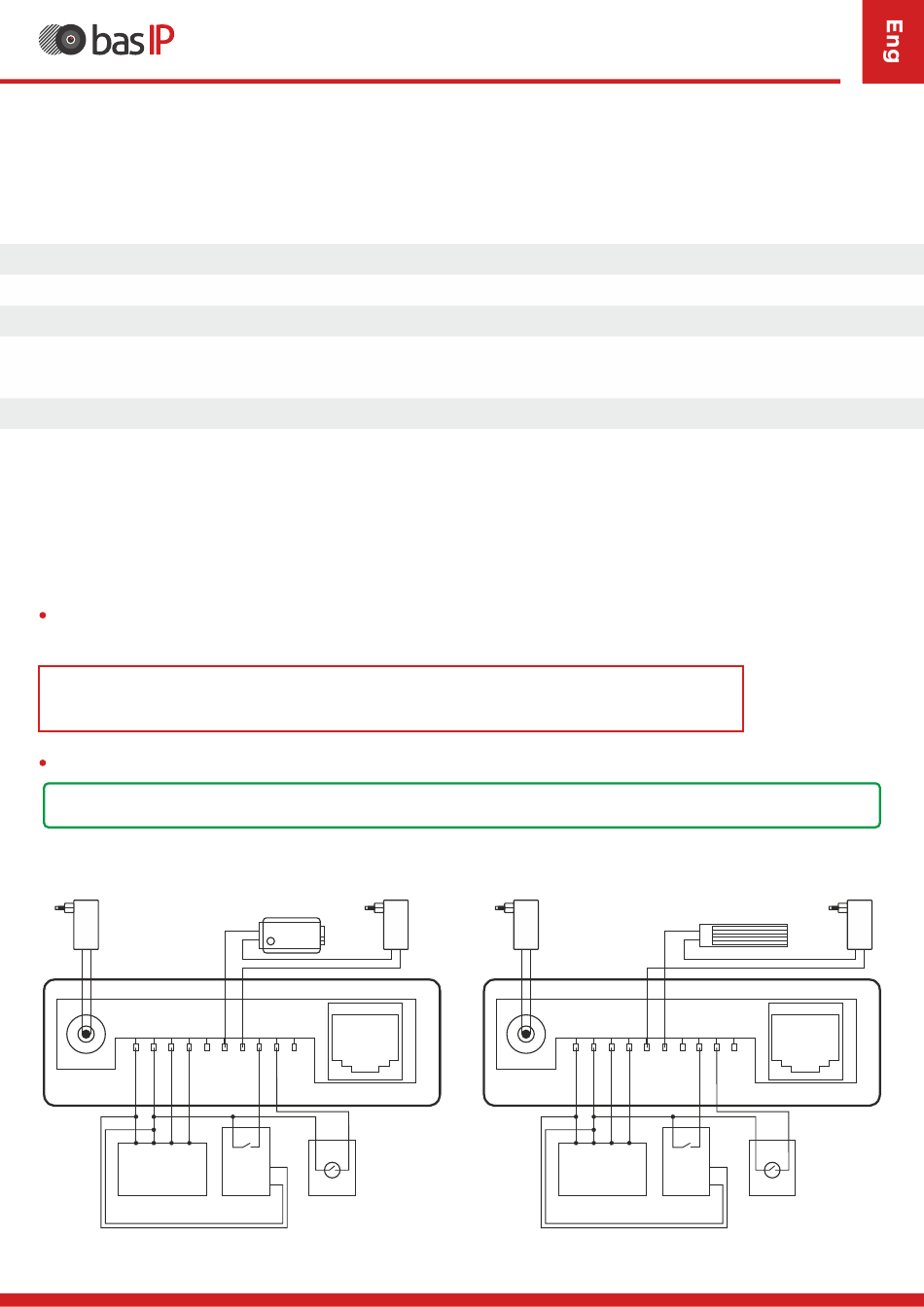

Connection scheme of electromechanical lock
using external power supply for panel and the lock.
Power supply
for the lock
Electromechanical
lock
DC
+12V
+
LAN (PoE)
NO EXIT DS DIN
RJ45
+12V
GND
SH-45 Door Sensor
Exit Button
Power supply
for the panel
DC
+12V
+
- -
Power
+12V GND
DC12V
(optional)
Connection scheme of electromagnetic lock
using external power supply for panel and the lock.
Electromagnetic
Lock
Peripheral Interface
485+ 485- NC COM NO EXIT DS DIN
SH-42
+12V
GND
SH-45 Door Sensor
Exit Button
3
1 pc
1 pc
1 pc
1 pc
1 pc
Power supply
for the lock
DC
+12V
+
-
LAN (PoE)
RJ45
