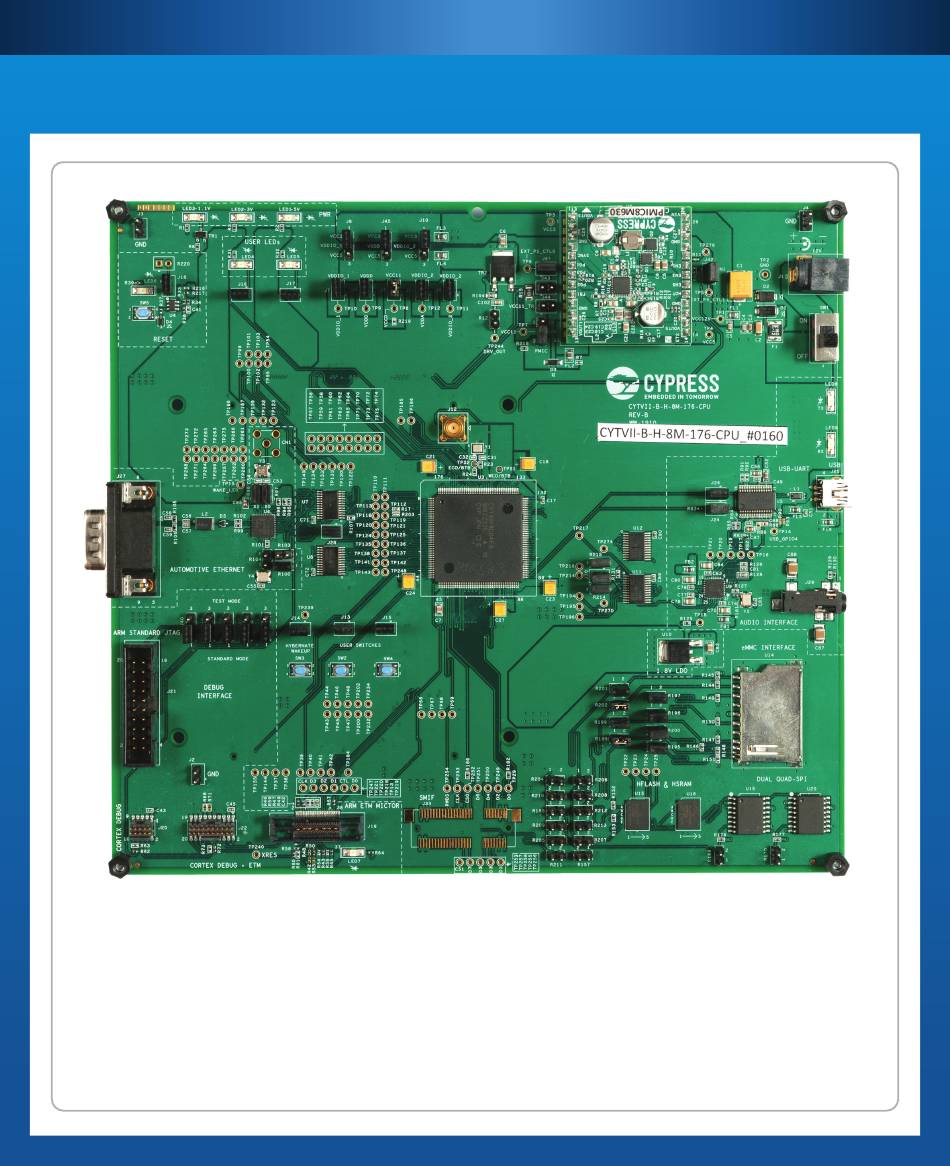

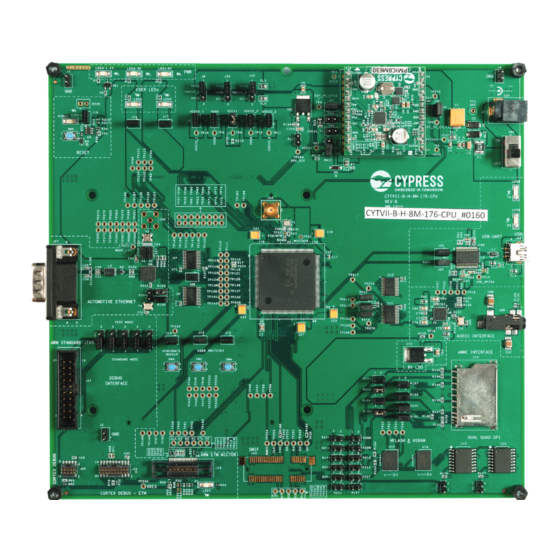

- Page 1 CYTVII-B-H-8M-176 CPU BOARD QUICK START GUIDE TRAVEO II CPU BOARD Kit Contents: 1. Traveo II CPU Board CYTVII-B-H-8M-176 CPU BOARD 2. Type-B Mini USB Cable 3. 12V AC-DC Universal Power Adapter 4. Quick Start Guide (this document) 5. Screws and Spacers...
- Page 2 CYTVII-B-H-8M-176 CPU BOARD QUICK START GUIDE TRAVEO II CPU BOARD • • Ensure that the MCU Reset Controller Jumper (J18) is Ensure that jumpers J7, J6, J5, J11, J9, J41, J42 are inserted inserted. Ensure that Jumpers J8, J45, J10 are in 1-2 position and J46 is in 2-3 position •...
- Page 3 TRAVEO II CPU BOARD Instructions: • The Traveo II CPU Board can be used standalone to evaluate limited features of the Traveo II MCU • The board can be used with Body Controller Base Board, to evaluate all the features of the MCU •...
- Page 4 31. Cypress TVII-B-H-8M Device 16. Jumpers for SDHC 32. MCU Power Jumpers 33. MCU Power LEDs © 2019 Cypress Semiconductor Corporation. All rights reserved. All trademarks or registered trademarks referenced herein are the property of their respective owners. 002-27891 Rev.**...
