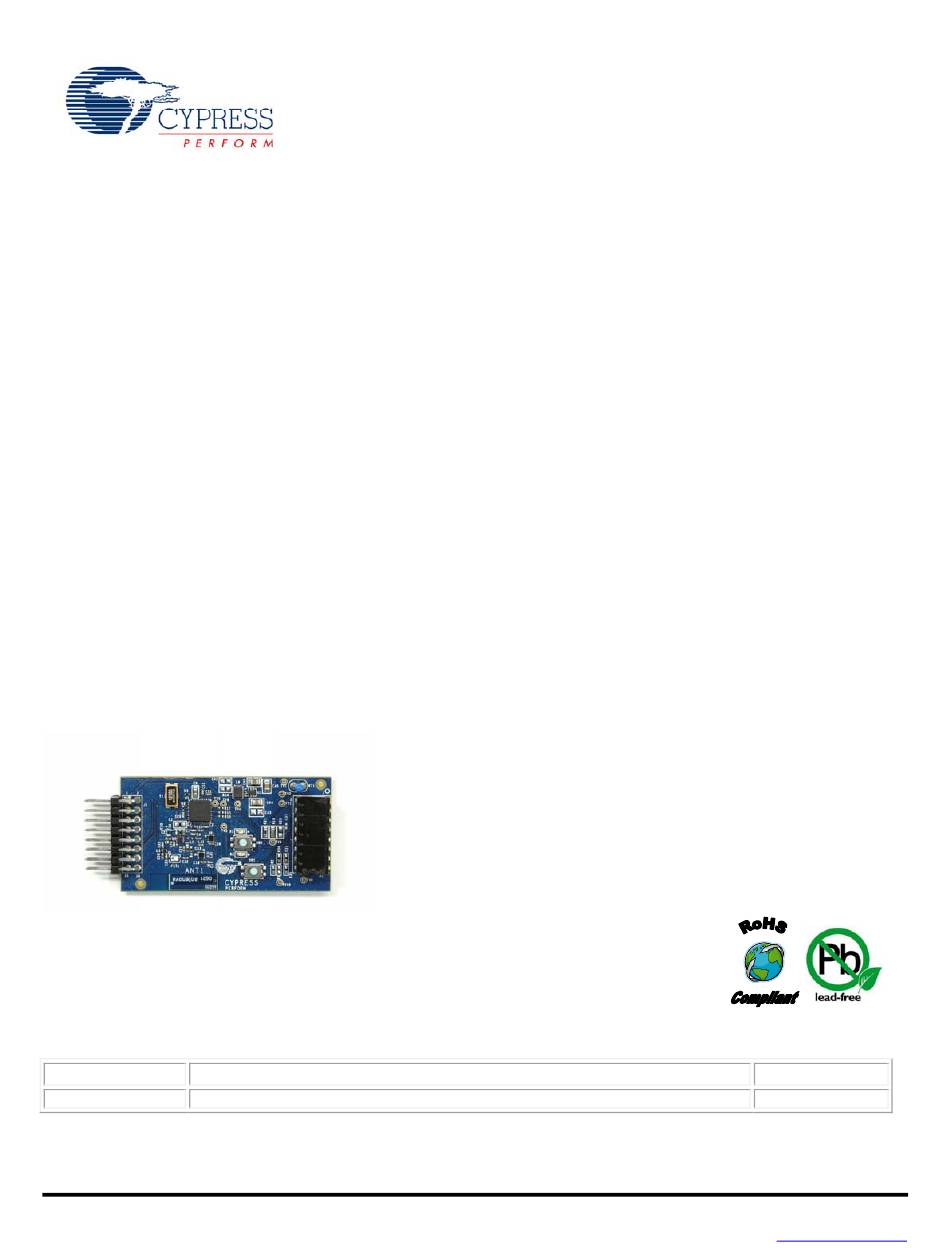

Cypress CY3271 User Manual

Features

•

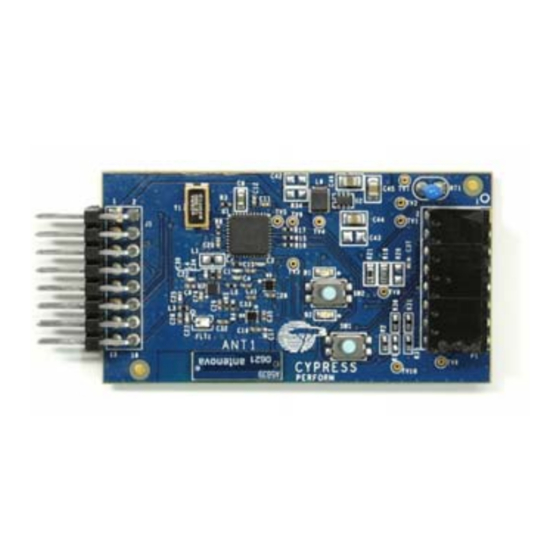

The CY3271 is a RF enabled kit that allows users to easily
evaluate Cypress chips and development systems. The
CY3271 features the Star Network Protocol and the
CYRF8C7936 2.4-GHz Direct Sequence Spread Spectrum
(DSSS) radio and an integrated PA.
•
Operates in the unlicensed worldwide Industrial, Scientific
and Medical (ISM) band, 2.400–2.483 GHz, up to 0dBm and
2.412-2.460 GHz at +20dBm (PA enabled)
•
Less than 240 mA operating current ( Transmit @ 20 dBm)
•
Transmit power up to +20 dBm (EU/Japan limited to
+10dBm)
•
Receive sensitivity up to –93 dBm
• Sleep Current < 10 μA
•
Operating range of up to 1km or more.
•
DSSS data rates up to 250 kbps, GFSK data rate of 1 Mbps
•
Auto Transaction Sequencer (ATS) - no micro controller
intervention
•
Features the Star Network Protocol and LP Radio User
modules.
•
Operating voltage from 1.8 to 3.1 volts
•
Operating temperature from 0 to 70°C

Functional Description

The Cypress CY3271 First Touch kit offers easy to use
The CY3271 is tested for functional operation and is FCC/ETSI
(EU)/Industry Canada Japan certified.

Ordering Information

Part Number
CY3271_A FirstTouch RF kit, RF Expansion
Cypress Semiconductor
198 Champion Court
San Jose, CA 95134
CY3271 RF Expansion Users Manual
Description
Page 1 of 3

Applications

• PC Human Interface Devices (HID)
•
Wireless Gamepads
•
Remote Control
• White Goods (Smart Appliances)
•
Window unit air conditioners
• Consumer
•
Sports and Leisure Equipment
•
Remote Controls
•
Locator Alarms
•
Toys
• Building/Home Automation
•
Automatic Meter Readers (AMR)
•
On-Site Paging Systems
•
Garage door opener
•
Alarm and Security
•
Lighting Control
•
Climate Control
•
Fan Control
• Industrial Control
•
Point-of-sale systems
•
Factory Automation
•
Data Acquisition
Temperature
0 to 50ºC
