CY5677 CYSMART

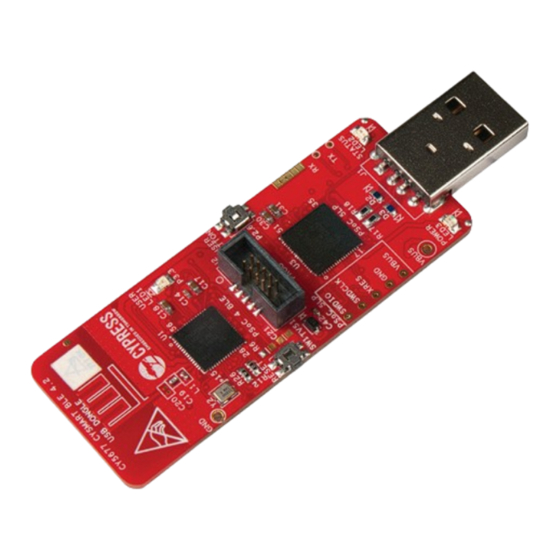

CY5677 CySmart BLE 4.2 USB Dongle is a BLE-to-USB bridge that
uses Cypress's PSoC
(CY8C5868LTI-LP039) devices. The dongle can be used with Cypress's
CySmart
Host Emulation Tool forWindows
TM
For more information on Cypress's BLE solutions visit
PSoC 4 BLE is a 48-MHz ARM
integrates a programmable analog front end, programmable digital peripherals,
CapSense
touch-sensing technology, and includes a royalty-free stack and
®
radio compatible with Bluetooth 4.2.
PSoC 4 BLE external
programming header
User LED
32.768-kHz
crystal
(bottom side)
Wiggle
antenna
Antenna
matching
network
(AMN)
24-MHz crystal
TM
4 BLE (CY8C4248LQI-BL583) and PSoC 5LP
®
Cortex
®
User button
PSoC 4 BLE
reset button
CY8C4248LQI-BL583
PSoC 4 BLE device
Fig-1: Pinout Description for CY5677
BLE 4.2 USB DONGLE
to test and debug BLE devices.
®
www.cypress.com/BLE
-M0 based single-chip solution that
®
CY8C5868LTI-LP039
PSoC 5LP programmer
and debugger
P1_4 (PSoC 4 BLE)
P1_5 (PSoC 4 BLE)
Status LED
USB plug
Power LED
PSoC 5LP
programming test points
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cypress CYSMART CY5677
Summary of Contents for Cypress CYSMART CY5677
- Page 1 CY5677 CySmart BLE 4.2 USB Dongle is a BLE-to-USB bridge that uses Cypress's PSoC 4 BLE (CY8C4248LQI-BL583) and PSoC 5LP ® (CY8C5868LTI-LP039) devices. The dongle can be used with Cypress's CySmart Host Emulation Tool forWindows to test and debug BLE devices.
- Page 2 CY5677 Contains Model: CY5677 Manufactured by Cypress Semiconductor. FCC ID: WAP-CY5677 203-JN0581 IC: 7922A-CY5677 © 2015 -2017 Cypress Semiconductor Corporation. All rights reserved. All trademarks or registered trademarks referenced herein are the properties of their respective owners. 002-04016 Rev.*C...
