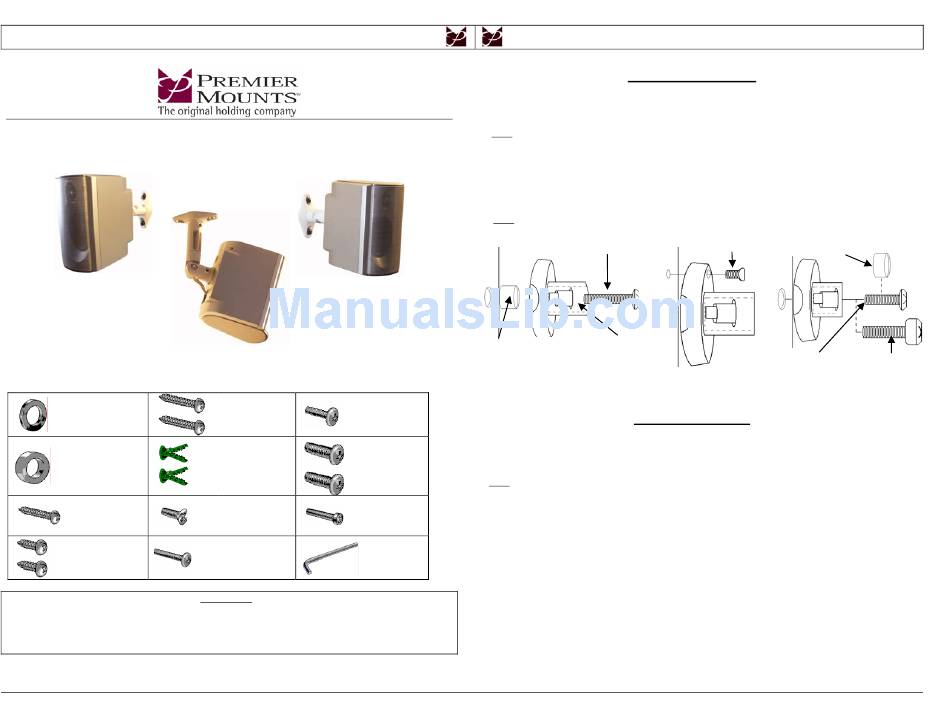

Premier Mounts PSPK Installation Instructions

PSPK

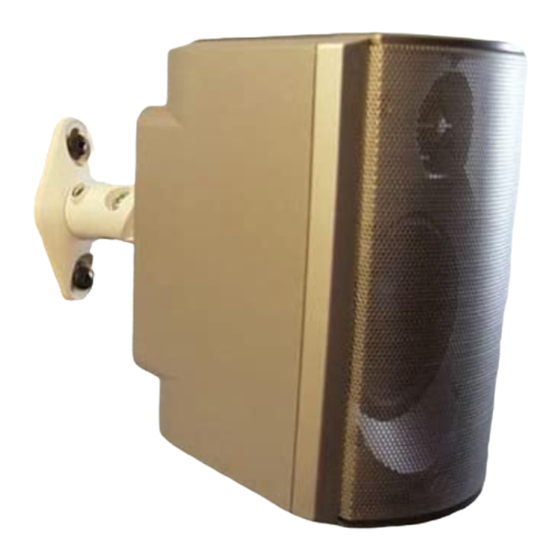

SPEAKER MOUNT INSTALLATION INSTRUCTIONS
Each hardware pack contains the following:
8-32 Round
Key Hole Nut
(Qty 1)
M5 x 1/8"
Plastic
Washer
(Qty 1)
#8 x 3/4"
Self Tapping
Screw (Qty 1)
#12 x 3/4"
Self Tapping
Screw (Qty 2)
Please read the instruction sheet prior to installation. This speaker mount was designed solely for the
mounting of small speakers weighing less than 10lbs. The manufacturer is not responsible for the damage
that will occur if speakers weighing more than 10lbs. are used.
Installation Instructions
IN-PSPK.R1
#12 x 1-3/4" 8/32 x 5/8"
Self Tapping Machine
Screw (Qty 2) Screw (Qty 1)
#12-14
1/4" -20 x
Alligator Plastic
1/2" Machine
Anchor
Screw (Qty 2)
(Qty 2)
M4 x 8mm Flat 1/4" -20 x
Head Machine 7/8" Machine
Screw (Qty 1) Screw (Qty 1)
M5 x 20mm
Allen Wrench
Machine Screw
(Qty 1)
(Qty 1)
IMPORTANT
1. Most satellite speakers will require the use of the M5 x 20mm machine screw used in combination with the M5 x 1/8"
plastic washer. The plastic washer is used as a spacer between the threaded insert and the speaker mount post
(Figure 1).
NOTE: It is critical the M5 plastic washer is used correctly, otherwise the threaded insert may pull out from the
speaker housing.
2. Once the proper configuration is determined, secure the post to the speaker.
3. Utilize the M4 x 8mm flat head machine screws (Figure 2).
4. Check the size of the hole and make sure the 8-32 x 5/8" machine screw, the 1/4"-20 x 1/2" machine screw, the
1/4"-20 x 7/8", or the M5 x 20mm fits inside (Figure 3).
5. When the correct size is determined, place the screw through the speaker post and attach to the rear of the speaker
enclosure.
NOTE: If the screw does not tighten properly, use the M5 x 1/8" plastic washer to tighten it up.
M5x20mm
Machine Screw
Mounting Post
M5x1/8"
Plastic Washer
Figure 1
6. If your speaker has a factory key hole design, you will use the 8-32 x 5/8 machine screws in
combination with the 8-32 round key hole nut.
7. Loosely pre-assemble the speaker mount post with the 8-32 x 5/8" machine screw and key hole nut
(Figure 4).
NOTE: Be sure the key hole nut is installed with the knurled edge toward the post.
8. Engage the key hole nut into the key hole slot, as shown.
9. Put tension on the assembly by gently pulling back on the speaker mount post while tightening the
8-32 x 5/8" machine screw (Figure 4).
10. The key hole nut will engage on the housing in the key hole slot.
11. If the post does not tighten securely against the housing , it will be necessary to use the M5 x 1/8" plastic washer as
a spacer under the head of the 8-32 x 5/8" machine screws (Figure 4).
1 2
Single Hole Mounting
M4x8mm Flat Head
Machine Screw
8-32x5/8"
Machine Screw
Figure 2
Key Hole Mounting
Installation Instructions
PSPK
M5x1/8"
Plastic Washer
¼"-20 x 7/8"
Machine Screw
Figure 3
Please Turn Over
