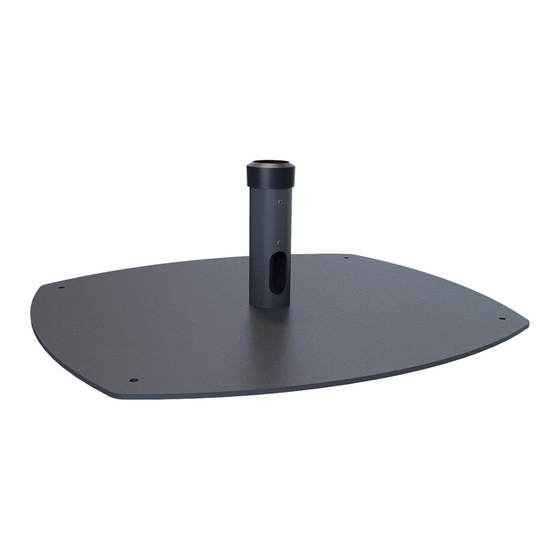

PSP-S-BASE
Floor stand
60" - [33/27]*
72" - [36/36]*
84" - [42/42]*
Poles are avalible in single or pair, black or chrome, full length or cut-in-half lengths [actual cut lengths]*.
1
Insert poles
and align the
openings.
9500433 v1.0
publ. 07/22/20
SINGLE POLE CARTS AND STANDS
SINGLE POLE CARTS AND STANDS
Floor stand (back to back)
POLE LENGTH OPTIONS
Poles and splice collar (PSP-EXT), Sold separately.
Plastic
collar
(2) M8 x 10
Set screws
PSP-BASE
2
Refer to VPM installation
manual for detail.
Installation Guide
+
VPM
VESA Pole Mount
PSP-EXT*
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Premier Mounts PSP-S-BASE
Summary of Contents for Premier Mounts PSP-S-BASE
- Page 1 SINGLE POLE CARTS AND STANDS Installation Guide SINGLE POLE CARTS AND STANDS PSP-S-BASE PSP-BASE Floor stand Floor stand (back to back) VESA Pole Mount POLE LENGTH OPTIONS 60” - [33/27]* 72” - [36/36]* PSP-EXT* 84” - [42/42]* Poles are avalible in single or pair, black or chrome, full length or cut-in-half lengths [actual cut lengths]*.
- Page 2 SINGLE POLE CARTS AND STANDS Installation Guide OPTIONAL w/ additional Bolted casters Ø 3/8” thru hole at four locations. Part Number Wheel Size Description 3/8”-16 x 1” long threaded stem. CAST-BW 3” dia. Set of 4, Black, 2 non-locking and 2 locking casters.
