18/56 Installation

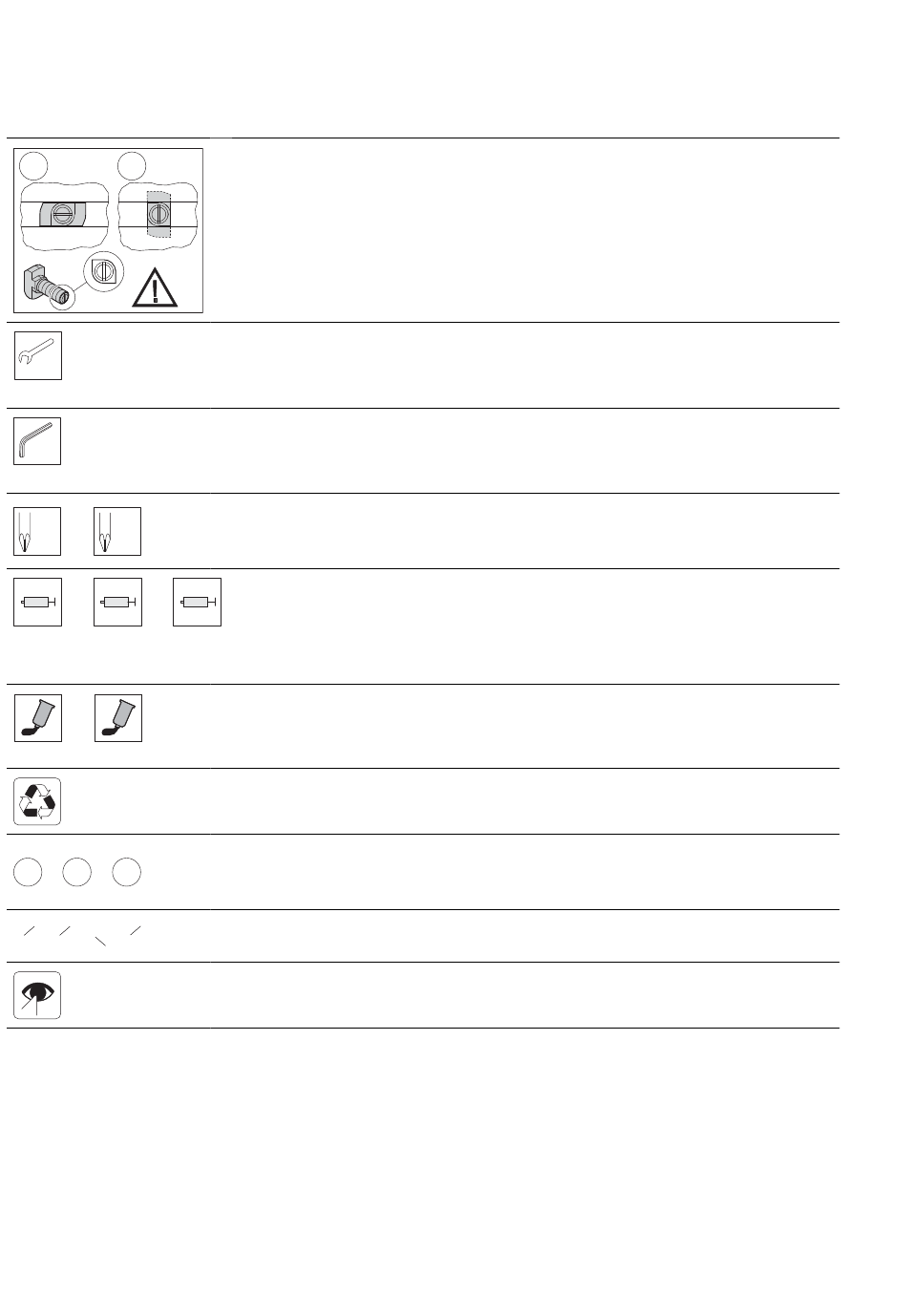

Table 6: Symbols used
1 2
SW13
M = 20Nm
D
SW5
M = 8Nm
D
PZ2 PH3
ISO-FLEX Klüber
TOPAS Struktovis
NCA 52 GHD
Loctite 243 Loctite 601
1 2 3
A B C X
Bosch Rexroth AG, MIT: HD 2/H, 3 842 358 796/2015-01

7.4 Symbols used

Connection with T-head bolt and collar nut.
When inserting and tightening, make sure the T-head is in the correct position
in the collar nut. The notch at the end of the screw indicates the position of the
T-head.
1 = insertion position of the T-head bolt into the nut
2 = clamping position of the T-head bolt into the nut
Tightening torque 25 Nm
Hex key
SW = screw width ... mm
M = necessary tightening torque ... Nm
D
Hex socket head cap screw key
SW = screw width ... mm
M = necessary tightening torque ... Nm
D
Screwdrivers for cross-head screws
PZ ... = Pozidriv screwdriver, size ...
PZ ... = Phillips screwdriver, size ...
Lubricate / Lubricate with specifi c grease:
• ISO-FLEX TOPAS NCA 52: www.klueber.com
• Klüber Struktovis GHD: www.klueber.com
Secure the screws with:
• Loctite 243: medium strength (detachable), www.loctite.de
• Loctite 601: high-strength screw retention (non-detachable), www.loctite.de
The marked parts are not required for the assembly described. Dispose of the
parts or use them for other purposes.
Graphical depiction of assembly sequence.
The numbers correspond to the sequence of assembly, in accordance with the
instructions of the accompanying text.
Graphical depiction of components.
The letters denote the components mentioned in the accompanying text.
Detail view from a different direction, for example, on the back or bottom of the
product.
