9. Install the front
protective sheets
Please note:
Depending on the
confi guration of the
workpiece carrier and the
separating stops used,
it may be necessary to
separate the protection
sheets at the perforation
(X, Y) (saw).
Bosch Rexroth AG, MIT: HD 2/H, 3 842 358 796/2015-01
X
9
10x
SW13
M =25 Nm
D

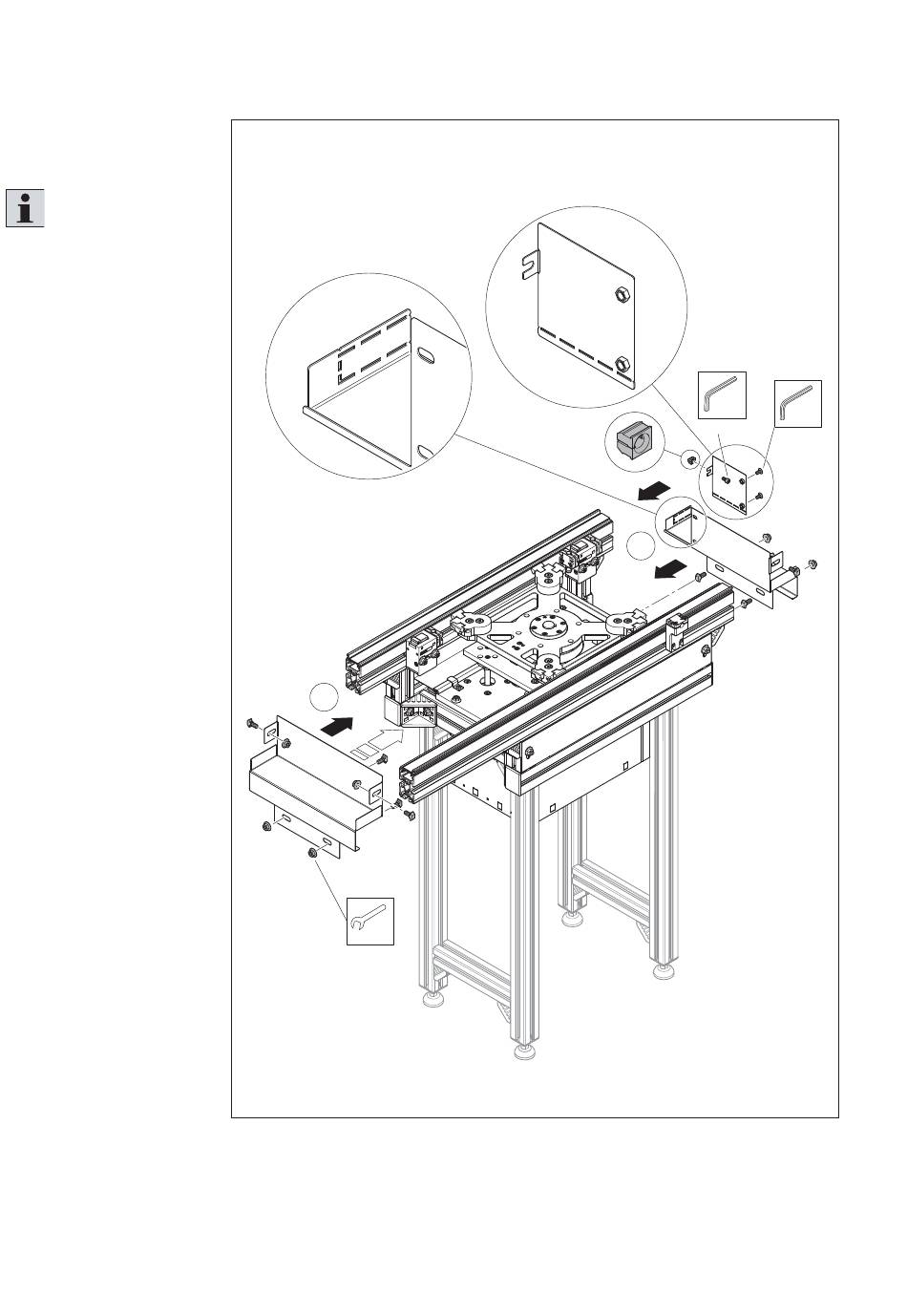

Fig. 17: Install side protective covers (example shown here size 2 180°)
Y
9
2x
SW4
SW4
M =4 Nm
D
M =4 Nm
D
