DT-SCU
User Manual
Please read this manual carefully before using the product you
purchase, and keep it well for future use.We reserve the right to
modify the specification in this manual at any time without notice.
Camera Interface
2-Wire System
Model: SCU
Power
In-Use
CAM1
CAM3
CAM(1~4)
Camera Interface
CAM2
CAM4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DT-SCU and is the answer not in the manual?

Questions and answers

Related Manuals for 2easy DT-SCU

Summary of Contents for 2easy DT-SCU

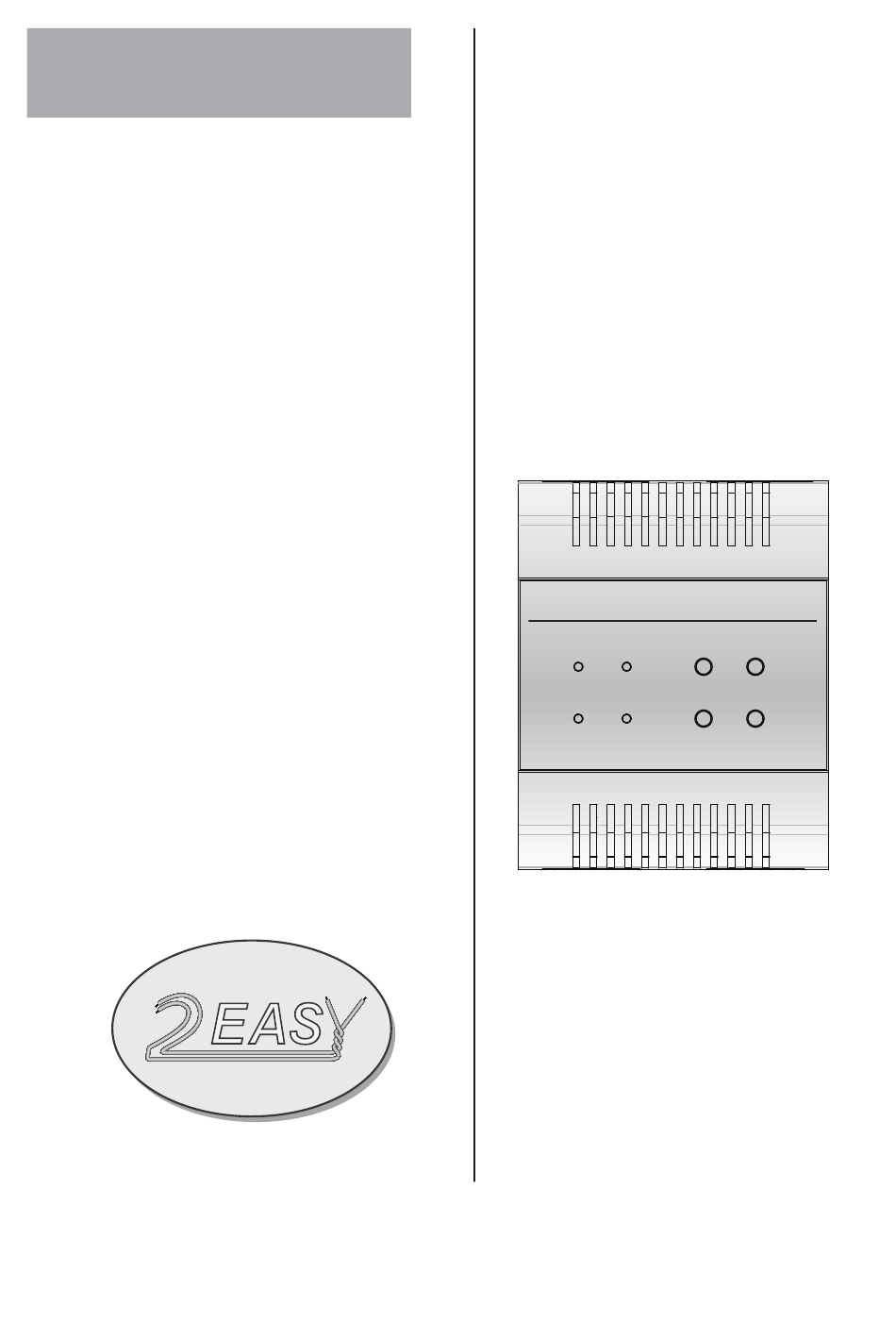

  • Page 1 DT-SCU Camera Interface User Manual 2-Wire System Camera Interface Model: SCU Power In-Use CAM1 CAM2 CAM3 CAM4 CAM(1~4) Please read this manual carefully before using the product you purchase, and keep it well for future use.We reserve the right to...

  • Page 2: Terminal Description

    1.About DT-SCU Unit Discription: The camera interface DT-SCU is a controller function device designed for DT system to control camera. In addition, DT-SCU can be configured as DT-DCU working mode to fit before used DT-DCU accessory of the project. For details, see later section 5.
  • Page 3 RS485:Reserved. CAM1~2:Connection for a regular analogue CCTV (TYPE A Camera) CAM3~4:Connection of a 2 wire camera( TYPE B Camera ); If connecting a CCTV camera to this port, it must be connected via a DT-CCU to convert to an analogue signal (see DT-CCU manual for further details) . BUS(IN):Connect to the bus line, no polarity on bus pair.

  • Page 4: Unit Mounting

    TYPE B Camera used. When DT-SCU connected TYPE B Camera, it should DIP4 be set to ON. When all DT-SCU of the system are configured to connect the two cameras(two TYPE A Cameras or two TYPE B Cameras ), it should be set to ON; DIP5 When all DT-SCU of the system are configured to connect the four cameras(two TYPE A Cameras and two TYPE B Cameras ), it should be set to OFF.

  • Page 5: Wiring Diagram

    4. Wiring Diagram 1# CCTV 2# CCTV 1 2 3 4 5 6 BUS(IM) BUS(DS) BUS(IN) BUS(OUT) 4# CCTV RF CARD 3# CCTV...

  • Page 6: Dip Switch Configuration

    5. The use instruction of as a DT-DCU When DT-SCU configured as DT-DCU working mode, DT-SCU has the same function with DT-DCU accessory, here no longer tired out; The following is only a brief introduction of its configuration operations: 1). DIP switch configuration;...
  • Page 7 2).Working mode configuration, the camera switching time setting, and monitoring time setting. In the standby, press and hold "CAM4" button for 3 seconds, it will enter the state of program. indicator:IN-USE (flash) In the program state, press and In the program state, press In the program state, press hold "CAM1"...

  • Page 8: Specification

    6. Specification • Power Supply : DC24V; • Working Temperature: C~+55 • Wiring: 2 wire,non-polarity; • Dimension: 90(H)×72(W)×60(D)mm. The design and specifications can be changed without notice to the user. Right to interpret and copyright of this manual are preserved. DT-ENG-SCU-V1 20161115...
