2easy 2-wire Series Technical Manual
Apartment intercom system
Hide thumbs
Also See for 2-wire Series:
- Manual (17 pages) ,
- Installation and user manual (34 pages) ,
- Technical manual (26 pages)
Related Manuals for 2easy 2-wire Series
Summary of Contents for 2easy 2-wire Series

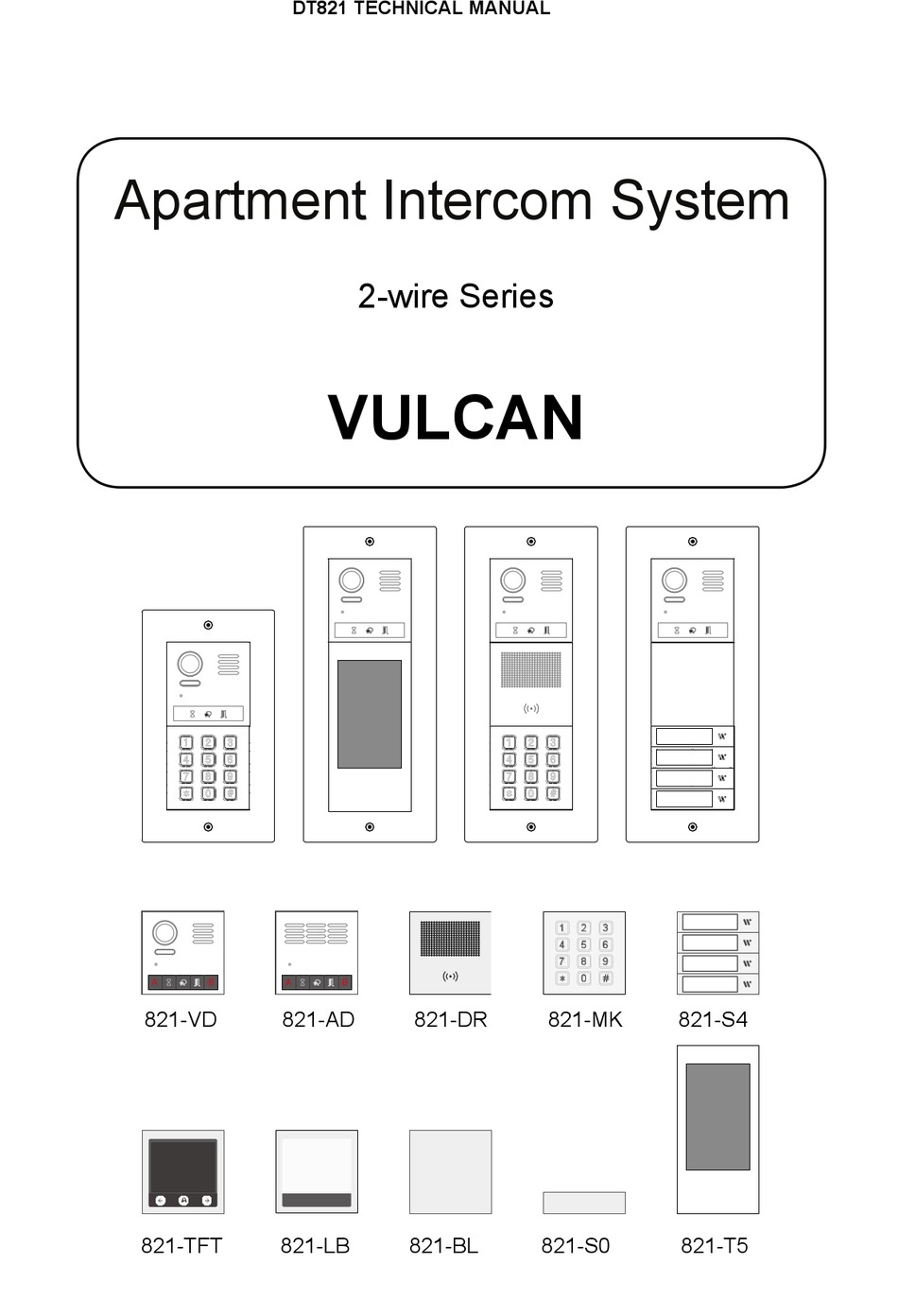

- Page 1 DT821 TECHNICAL MANUAL Apartment Intercom System 2-wire S eries VULCAN 821-VD 821-AD 821-DR 821-MK 821-S4 821-TFT 821-LB 821-BL 821-S0 821-T5...
- Page 2 INSTALLATION GUIDE 1. Parts and Functions Speaker Fisheye Lens Night View LED Microphone 1 2 3 4 5 6 Status Indicator Connection Dot-matrix Display Port Card Reader MK Modul e Screw Hole Surface mount box Flush mount wall box Door Station...
- Page 3 INSTALLATION GUIDE 2. Terminal Description JP-LK CN/KMB CN/T-COIL 1 2 3 4 5 6 CN/FUN CN/WGN • +12V: 12VDC power output • LK-: power ground • LK+: relay common contact • NO.: relay normally open contact • EB+: exit button positive • EB-: exit button negative • JP-LK: electronic lock type setting • SET : DIP switches for system configuration...
- Page 4 INSTALLATION GUIDE Unlock timing: 1~99s Working temperature: - 20ºC ~ +55ºC Wiring: 2 wires (no-polarity) Dimension: H316×W133×D48mm(3-Modules) H232×W133×D48mm(2-Modules) 4. Mounting Flush mounting Use screws to fasten the panel Cut a hole and install the wall box Final result Connect and plug bus line connector with cable Surface mounting...
- Page 5 5. Connection Diagram Impedance Code=31 Code=30 OFF ON switch Code=29 Code=28 Code=3 Code=2 Impedance OFF ON switch Code=1 Code=0...
- Page 6 VD MODULE 6. VD (VIDEO) Module Speaker Camera lens Night view LED Invisible key B Invisible key A Status indicator Talk indicator Unlock indicator Note: Key A and key B can not be seen on the panel, they are cryptic. Normally, key A and key B are not active.
- Page 7 VD MODULE • DIP-4 is for button code selection for Door Stations with buttons. All Buttons are pre-programmed with User Code/Address (see page 15). If you planning to use factory programming, keep DIP-4 Off. When factory programming going to be modified, change DIP-4 to On position •...
- Page 8 VD MODULE • Unlocking Time Setting 1. Press Key A, Unlock Indicator turns on with double beep sound 2. Press and hold Key B to change unlocking time from default 1s. Every beep and/or flash of Status Indicator increase unlocking time by second. If door station has TFT screen connected, time increase will be visible on the screen • Ringtone Setting 1.
- Page 9 VD MODULE • Ringtone Volume Setting 1. Press Key B to enter Ringtone Volume Setting, the Talk Indicator turns on and plays the tune at the current volume 2. Press Key A to increase/decrease volume 3. Press Key B to exit If door station has TFT screen connected, the current Volume and changes will be visible on the screen • Talk Volume Setting...
- Page 10 VD MODULE • Camera NTSC / PAL Settings 1. Press Key A, the Talk Indicator and Status Indicator turns on with double beep sound 2, Press Key A again to enter the Camera NTSC/PAL setting. PAL(Default): the Status indicator blinks ones with beep sound NTSC: the Status indicator blinks twice with double beep sound • Enable/Disable Image Zoom Mode 1.
- Page 11 MK MODULE 7. MK (MECHANICAL KEYPAD) Module Mechanical keypad Connect to main or last module Connect to next module Parameters Setting To be able to change any default settings go first into Programming Mode by typing in Default Master Code 1234 # and type in the corresponding codes.
- Page 12 MK MODULE Setting items Setting range Default Setting code Setting the key 10 to 99 seconds/ 10 seconds illumination time continually lit Setting the unlock time 01 to 99 seconds 1 second Setting the unlock mode 0:opened/1:closed open Operation tone settings 0,1,2 Reset code settings 1,2,3,4...
- Page 13 MK MODULE Input the master code. Beep+, Beep Default: # 1.Reset all settings 2.Setting the master code 3.Setting the key 4.Setting the illumination time unlock time (Default 1234) (Default 10s) (Default 5 s) Type in the setting code Type in the setting code Type in the setting code Type in the setting code 00 #...
- Page 14 MK MODULE Input the master code. Beep+, Beep Default: 5.Setting the unlock mode 6.Setting operation tone 7.Reset code setting 8. &# function setting (Default 0(opened)) (Default ON) (Default Normal) Type in the setting code Type in the setting code Type in the setting code Type in the setting code 04 # 05 #...
- Page 15 MK MODULE Input the master code. Beep+, Beep Default: # 9. Call tone setting 10.SPK volume adjust 11.Night light level setting setting (Default enable) (Default:4) (Default 4) Type in the setting code Type in the setting code Type in the setting code 08 # 11 # 13 #...
- Page 16 MK MODULE Input the master code. Beep+, Beep Default: # 12.Setting the code 13.Setting the code 14.Setting the code 15.Setting the code forTemporary1 forTemporary2 for user group1 for user group2 20~59 60~99 Type in the setting code Type in the setting code Type in the setting code Type in the setting code 18 #...
- Page 17 DR MODULE 8. DR (DOT-MATRIX) Module Dot-matrix display Connect to main or last module Card/keyfob reader Connect to next module Dot-matrix: 16 x 24 dot matrix display Card Reader: support 125KHz and 13.56MHz unencrypted RFID tags Features • Up to 320 user cards can be registered by door station • Easy management with indicators and sounds • The distance of card reading is 3 to 5 cm • The Master Cards are necessary when you add or delete user cards.
- Page 18 DR MODULE i) Add User Cards/Keyfobs a. Show the Master ADD card to the Proximity Reader, double beep will sound b. On Direct Call Button Module, press the Flat button which ID card needs to be associated with (skip if there is no Direct Call Button module) c.Show all blank ID cards, one by one d.Repeat steps b and c for each button e.Finish with Master Add card...
- Page 19 DR MODULE ii) Delete User Card a. Show the Master DELETE Card to the Proximity Reader, double beep will sound b. For Door Station with Direct Call buttons: if card is not present, press desired button and all ID cards registered to that flat will be deleted. If card is present, directly show the card and it will be deleted.
- Page 20 S4 MODULE 9. S4 Module Name plate S4 Module address settings Connect to main or last module Connect to next module Call button Call codes The DT821 automatically assigns the call codes to the connected module’s buttons. Regardless of the structure of the call button module, the button numbers are starting from the bottom Call Code Call Code...
- Page 21 S4 MODULE Call Code Call Code 1234 1234 Nametag replacement Nametag area to insert customized name card. The suggested card size is: L58 x W11.7mm To replace nametag, remove the name tag via suck cup as below -21-...
- Page 22 MODULE MOUNT 10. Module Mount FLUSH MOUNT SURFACE MOUNT -22-...
- Page 23 MODULE CONNECTION 11. Terminal Description • VD module Name Descriptions DIP switches for system configuration JP-LK For electronic lock type setting CN/KMB Call button module connection port Reserved CN/T-COIL No-polarity bus line,connect to power supply CN-LK Electric lock and exit button connection port Mechanical keypad module or TFT display module CN/FUN connection port...
- Page 24 MODULE CONNECTION • MK and DR module Name Descriptions CN/FUN_IN Connect to CN/FUN of video entry module CN/FUN_OUT Connect to next keypad or TFT module • S4 module Name Descriptions CN/FUN_IN Connect to CN/FUN of video entry module CN/FUN_OUT Connect to next keypad or TFT module DIP switches for system configuration -24-...
- Page 25 MODULE CONNECTION 12. Connections • VD and DR and MK module CN/KMB • VD and DR and S4 module CN/KMB -25-...
- Page 26 MODULE CONNECTION • VD and BL and S4 module CN/KMB 13. Electric Lock Connection 1) Door Lock Controlled with Internal Power 1. The door lock is limited to 12Vdc, and holding current must be less than 250mA when using internal power 2.
- Page 27 ELECTRIC LOCK CONNECTION Power-on-to-Unlock type: Power-off-to-Unlock type: 12V 300mA +12V +12V LK - LK - N.O. 12V 300mA N.O. Exit button Exit button 1 2 3 Jumper position in 2-3 1 2 3 Jumper position in 1-2 JP_LK JP_LK 2) Door Lock Controlled with External Power 1.
- Page 30 VULCAN DT-821-V1 The design and specifications can be changed without notice to the user. Right to inter- pret and copyright of this manual are preserved.
