User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-HW719-Q221V1
dedicated KVM switch and rackmount screen technology
19" Widescreen High Brightness LCD 1000 cd/m²
RP-HW719

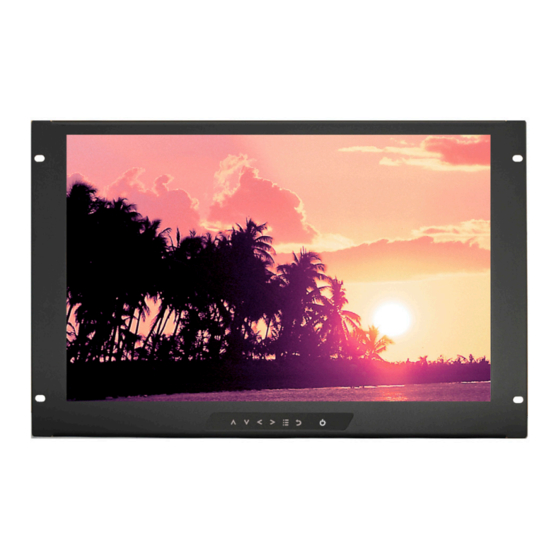

7U Rackmount Display Panel
Options :
- SDI / MCS
- AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CyberView RP-HW719
Summary of Contents for CyberView RP-HW719
- Page 1 KVM switch and rackmount screen technology User Manual 19” Widescreen High Brightness LCD 1000 cd/m² RP-HW719 7U Rackmount Display Panel Options : - SDI / MCS - AV / HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-HW719 Package Content Structure Diagram & Dimension P.1 - 2 Installation < Part. 2 > Specifications / OSD / Remote Controller Product Specifications P.4 - 5 On-screen Display Operation ( OSD ) P.6 - 7 <... - Page 4 Caution : Do not spray or apply any liquids directly onto the monitor. Always apply the solution to your microfiber cloth first, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
-
Page 5: Part. 1 > Rp-Hw719
< Part 1 > < 1.1 > Package Content RP-HW719 RP-HW719 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 6 (W x D x H) Weight 480 x 58 x 310 mm 529 x 124 x 495 mm 5.8 kg 7.9 kg RP-HW719 18.9 x 2.3 x 12.2 inch 20.8 x 4.9 x 19.5 inch 12.8 lb 17.4 lb UM-CV-751-RP-HW719-Q221V1...
-
Page 7: Installation
< 1.3 > Installation RP-HW719 Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. -
Page 8: Product Specifications
Power Power Supply Range Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON Max. 34W Power saving mode Max. 2W Power button OFF Max. 1W Regulatory Safety FCC & CE certified Environmental RoHS3 & REACH compliant UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com... - Page 9 RP-HW719 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical...
-
Page 10: On-Screen Display Operation ( Osd )
All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-HW719 OSD Configuration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup...
- Page 12 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
-
Page 13: Part. 3 > Options
LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty. - Page 14 ( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fix the issue. Audio Power S-Video HDMI out - in - in Video PC P.10 UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
- Page 15 < 3.5 > AV3.0 Upgrade Options : RP-HW719 - HDMI ( HDMI 1.3, CEA-861-D - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in &...
- Page 16 Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to finish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the first setup P.12 UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
- Page 17 < 3.7 > Options : DC Power RP-HW719 Model 125V Input rating Input voltage: 24-Volt 48-Volt 110-Volt Input range: 18 ~ 36V 36 ~ 75V 66 ~ 160V Input current - No load 50 mA 50 mA 35 mA - Full load...
- Page 18 Standard Lockable DC Power YM-Ext-461CP001 D-type 3W3 Connector ( Male ) LUSB - A111 - 00 MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided. P.14 UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
- Page 19 Intentionally Left Blank UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifications without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2021 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-HW719-Q221V1 www.austin-hughes.com...
