User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-H717-Q220V1

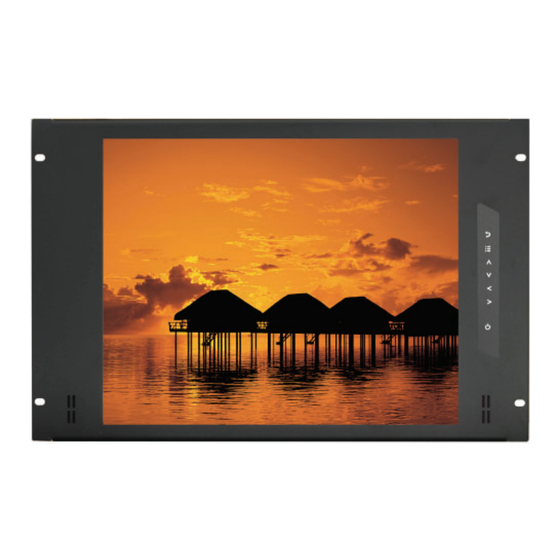

dedicated KVM switch and rackmount screen technology
17" / 19" High Brightness LCD 1000 cd/m²
RP-H717 / RP-H819
Rackmount Display Panel
Options :
- SDI / MCS
- AV / HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CyberView RP-H717
Summary of Contents for CyberView RP-H717
- Page 1 KVM switch and rackmount screen technology User Manual 17” / 19” High Brightness LCD 1000 cd/m² RP-H717 / RP-H819 Rackmount Display Panel Options : - SDI / MCS - AV / HDMI / Audio - Touchscreen / DC power...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RP-H717-Q220V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-H717 / RP-H819 Package Content Structure Diagram & Dimension P.1 - 3 Installation < Part. 2 > Specifi cations / OSD / Remote Controller Product Specifi cations P.5 - 6 On-screen Display Operation ( OSD ) P.7 - 8... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-H717-Q220V1 www.austin-hughes.com...
-
Page 5: Package Content
< Part 1 > < 1.1 > Package Content RP-H717 / H819 RP-H717 or RP-H819 X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 < 1.2 > Structure Diagram Front view RP-H717 RP-H819 Rear view... - Page 6 < 1.2 > Dimension - RP-H717 Front View Side View RP-H717 UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 480 x 54.2 x 310 mm 529 x 124 x 495 mm 5.5 kg...
- Page 7 < 1.2 > Dimension - RP-H819 RP-H717 / H819 Front View Side View RP-H819 UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 480 x 53.3 x 354.8 mm...
-
Page 8: Installation
< 1.3 > Installation Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. UM-CV-751-RP-H717-Q220V1 www.austin-hughes.com... -
Page 9: Product Specifi Cations
< Part 2 > < 2.1 > Product Specifi cations RP-H717 / H819 RP-H717 RP-H819 Panel Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ. - Page 10 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical RP-H717 RP-H819 Specifi cation Product ( W x D x H ) 480 x 54.2 x 310 mm 480 x 53.3 x 354.8 mm 18.9 x 2.1 x 12.2 inch 18.9 x 2.1 x 14 inch...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) RP-H717 / H819 RP-H819 Power light Green = On Orange = Power saving Membrane Switch Function Power on / off LCD Display the OSD menu Scrolls through menu options and adjusts the displayed control... - Page 12 H position, V position, phase and clock Video: for the colour, tint, sharpness, noise reduction, DCDi and TV Setup Audio: for volume, bass, treble, balance, AVL and mute Misc: for the language, OSD position, graphic mode, ratio, reset and timer UM-CV-751-RP-H717-Q220V1 www.austin-hughes.com...
- Page 13 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
-
Page 14: Part. 3 > Options
LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty. - Page 15 < 3.3 > AV2.2D Upgrade Options : RP-H717 / H819 - DVI-D ( DVI-D TMDS single link - AV ( S-Video + Composite, BNC ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in & out )
- Page 16 LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi x the issue. Audio DVI-D Power S-Video HDMI out - in - in Video PC UM-CV-751-RP-H717-Q220V1 P.12 www.austin-hughes.com...
- Page 17 < 3.6 > Options : Touchscreen & driver RP-H717 / H819 17″ / 19" USB Touchscreen Specifi cation 17” 19” 17” 19” Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤...
- Page 18 4880 mA 2442 mA 749 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 6.25A Effi ciency For DC power option : ( 1 ) If the unit with LCD, earthing may be required UM-CV-751-RP-H717-Q220V1 P.14 www.austin-hughes.com...
- Page 19 < 3.8 > Options : MIL-type or Lockable Connector RP-H717 / H819 Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male )
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-H717-Q220V1 www.austin-hughes.com...
