User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-HF617-Q322V2
dedicated KVM switch and rackmount screen technology

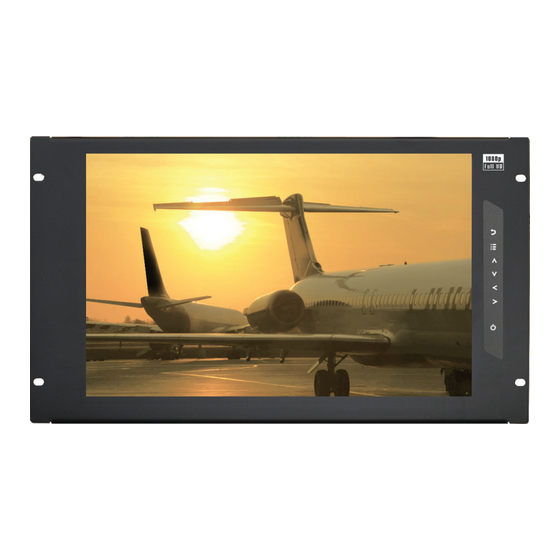

17" High Brightness FHD 1080p LCD 1000 cd/m²
RP-HF617
6U Rackmount Display Panel
Options :
- SDI / MCS
- HDMI / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CyberView RP-HF617
Summary of Contents for CyberView RP-HF617
- Page 1 KVM switch and rackmount screen technology User Manual 17” High Brightness FHD 1080p LCD 1000 cd/m² RP-HF617 6U Rackmount Display Panel Options : - SDI / MCS - HDMI / Audio - Touchscreen / DC power - MIL-type or lockable connector...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RP-HF617-Q322V2 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-HF617 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cation On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input MCS Multi-display control solution AV3.0 Upgrade :... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-HF617-Q322V2 www.austin-hughes.com...
-
Page 5: Rp-Hf617
< Part 1 > < 1.1 > Package Content RP-HF617 RP-HF617 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view... - Page 6 (W x D x H) Weight 480 x 48 x 266 mm 529 x 124 x 451 mm 4.5 kg 6 kg RP-HF617 18.9 x 1.9 x 10.5 inch 20.8 x 4.9 x 17.8 inch 9.9 lb 13.2 lb UM-CV-751-RP-HF617-Q322V2...
-
Page 7: Installation
< 1.3 > Installation RP-HF617 Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. -
Page 8: Product Specifi Cation
Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON Max. 39W Power saving mode Max. 2W Power button OFF Max. 1W Compliance FCC & CE Safety CE / LVD & UKCA Environmental RoHS3 & REACH / WEEE UM-CV-751-RP-HF617-Q322V2 www.austin-hughes.com... - Page 9 RP-HF617 Environmental Operating Temperature 0 to 55°C degree Conditions Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical...
-
Page 10: On-Screen Display Operation ( Osd )
Adjust the saturation of the image color Picture size : Adjust the image size Color temp : Standard / Cool / Warm / User to choose Noise reduce : Reduce the noise of the image Sharpness : Adjust the image from weak to sharp UM-CV-751-RP-HF617-Q322V2 www.austin-hughes.com... - Page 11 < 2.2 > On-screen Display Operation ( OSD ) RP-HF617 Auto adjust : Automatically adjust sizes, centers and fi ne tunes the video signal to eliminate waviness and distortion. Clock : Adjust the clock value Phase : Adjust the phase value H.
- Page 12 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 13 LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 14: Hdmi + Audio
< 3.3 > Options : AV3.0, HDMI + Audio - HMDI ( HDMI 1.3, HDCP 1.1 ) - Audio ( Built-in Dual Stereo Speakers, 2W x 2 ) ( 3.5mm audio jacks for audio in ) Power Audio HDMI UM-CV-751-RP-HF617-Q322V2 P.10 www.austin-hughes.com... - Page 15 < 3.4 > Options : Touchscreen & driver RP-HF617 Projected Capacitive 10-pt Touch screen Specifi cation Model TPC-10 Multi-touch Technology Projected Capacitive Touch Point Input Type Finger or Capacitive Stylus Resolution 4096 x 4096 Touch Point Accuracy ± 2 mm Response Speed <...
- Page 16 Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the fi rst setup UM-CV-751-RP-HF617-Q322V2 P.12 www.austin-hughes.com...
- Page 17 < 3.5 > Options : DC Power RP-HF617 Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load...
-
Page 18: Mil-Type Or Lockable Connector
Standard Lockable DC Power YM-Ext-461CP001 D-type 3W3 Connector ( Male ) LUSB - A111 - 00 MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided. UM-CV-751-RP-HF617-Q322V2 P.14 www.austin-hughes.com... - Page 19 Intentionally Left Blank UM-CV-751-RP-HF617-Q322V2 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-HF617-Q322V2 P.16 www.austin-hughes.com...
