User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-HF821-Q220V1
dedicated KVM switch and rackmount screen technology
21.5" High Brightness FHD LCD 1000 cd/m²

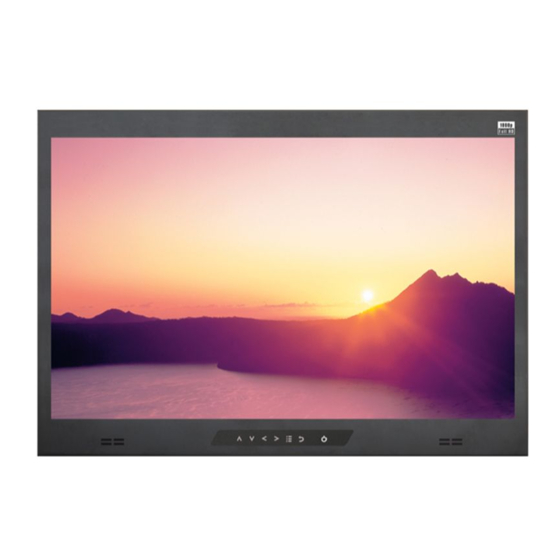

RP-HF821
8U Rackmount Display Panel
Options :
- SDI / MCS
- HDMI / DP / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CyberView RP-HF821
Summary of Contents for CyberView RP-HF821
- Page 1 KVM switch and rackmount screen technology User Manual 21.5” High Brightness FHD LCD 1000 cd/m² RP-HF821 8U Rackmount Display Panel Options : - SDI / MCS - HDMI / DP / Audio - Touchscreen / DC power - MIL-type or lockable connector...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RP-HF821-Q220V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-HF821 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.10... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-HF821-Q220V1 www.austin-hughes.com...
-
Page 5: Rp-Hf821
< Part 1 > < 1.1 > Package Content RP-HF821 RP-HF821 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram... - Page 6 (W x D x H) Weight 501.9 x 64 x 353 mm 585 x 124 x 557 mm 8.8 kg 11.2 kg RP-HF821 19.8 x 2.5 x 13.9 inch 23 x 4.9 x 21.9 inch 19.4 lb 24.6 lb UM-CV-751-RP-HF821-Q220V1...
- Page 7 Intentionally Left Blank...
-
Page 8: Installation
< 1.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-CV-751-RP-HF821-Q220V1 www.austin-hughes.com... - Page 9 < 1.3 > Rear Mounting Bracket Installation RP-HF821 Step ■ Mount the rear bracket with M6 screw set. ■ 8 x M6 screw set are required. M6 screw sets are not provided. Step ■ Insert the RP-F821 display panel into the rear bracket.
-
Page 10: Product Specifi Cations
Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON Max. 32W Power saving mode Max. 2W Power button OFF Max. 1W Regulatory FCC & CE certifi ed Safety CE / LVD certifi ed Environmental RoHS2 & REACH compliant UM-CV-751-RP-HF821-Q220V1 www.austin-hughes.com... - Page 11 RP-HF821 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 501.9 x 64 x 353 mm...
-
Page 12: On-Screen Display Operation ( Osd )
: To adjust the vertical position of the video Clock : To auto adjust H. Size of the screen Phase : To fi ne tune the screen. Picture size : FULL SCREEEN / 4:3 / 5:4 / 16:10 UM-CV-751-RP-HF821-Q220V1 www.austin-hughes.com... - Page 13 < 2.2 > On-screen Display Operation ( OSD ) RP-HF821 Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value...
- Page 14 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 15 LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 16: Av4.4 Upgrade
( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi x the issue. UM-CV-751-RP-HF821-Q220V1 P.12 www.austin-hughes.com... - Page 17 < 3.4 > Options : Touchscreen & driver RP-HF821 F21" USB Touchscreen Specifi cation Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤ 50g Durability 10 million touches...
- Page 18 4880 mA 2442 mA 749 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 6.25A Effi ciency For DC power option : ( 1 ) If the unit with LCD, earthing may be required UM-CV-751-RP-HF821-Q220V1 P.14 www.austin-hughes.com...
-
Page 19: Mil-Type Or Lockable Connector
Part no. Standard Lockable DC Power YM-Ext-461CP001 D-type 3W3 Connector ( Male ) LUSB - A111 - 00 MIL - type or Lockable connectors above can be integrated with our LCD displays. Sale service just for connectors not provided. UM-CV-751-RP-HF821-Q220V1 www.austin-hughes.com... - Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-HF821-Q220V1 P.16 www.austin-hughes.com...
