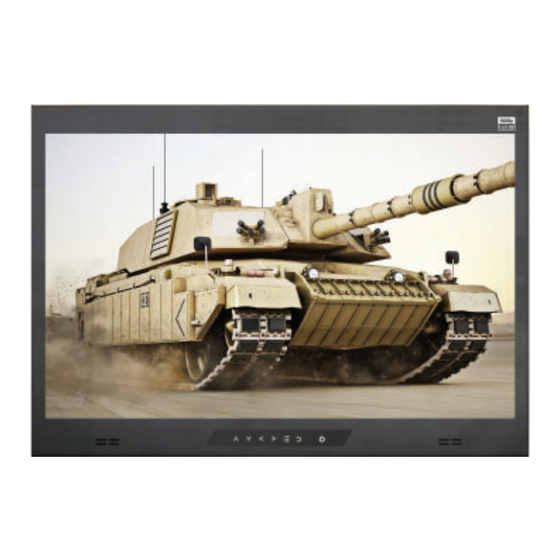

KVM switch and rackmount screen technology User Manual 21.5” FHD 1920 x 1080 LCD RP-F821 8U Rackmount Display Panel Options : - SDI / MCS - HDMI / DP / Audio - Touchscreen / DC power - MIL-type or lockable connector...
Page 2
■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RP-F821-Q220V1 www.austin-hughes.com...
Page 4
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-F821-Q220V1 www.austin-hughes.com...
< Part 1 > < 1.1 > Package Content RP-F821 RP-F821 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram...
Page 6
(W x D x H) Weight 501.9 x 64 x 353 mm 585 x 124 x 557 mm 8.8 kg 11.2 kg RP-F821 19.8 x 2.5 x 13.9 inch 23 x 4.9 x 21.9 inch 19.4 lb 24.6 lb UM-CV-751-RP-F821-Q220V1...
Page 7
Intentionally Left Blank UM-CV-751-RP-F821-Q220V1 www.austin-hughes.com...
< 1.3 > VESA mount Installation M4 screw VESA mount ( 100*100mm ) ■ Hardware and M4*4 pcs for VESA mount are not provided UM-CV-751-RP-F821-Q220V1 www.austin-hughes.com...
Page 9
Mount the rear bracket with M6 screw set. ■ 8 x M6 screw set are required. M6 screw sets are not provided. Step ■ Insert the RP-F821 display panel into the rear bracket. Step ■ Fix the unit to the bracket with the top latch. Step...
Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON Max. 28W Power saving mode Max. 2W Power button OFF Max. 1W Regulatory FCC & CE certifi ed Safety CE / LVD certifi ed Environmental RoHS2 & REACH compliant UM-CV-751-RP-F821-Q220V1 www.austin-hughes.com...
Page 11
RP-F821 Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical Product ( W x D x H ) 501.9 x 64 x 353 mm...
: To adjust the vertical position of the video Clock : To auto adjust H. Size of the screen Phase : To fi ne tune the screen. Picture size : FULL SCREEEN / 4:3 / 5:4 / 16:10 UM-CV-751-RP-F821-Q220V1 www.austin-hughes.com...
Page 13
< 2.2 > On-screen Display Operation ( OSD ) RP-F821 Color Color temperature : User / Warm / Cool / 5400k mode and Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value...
Page 14
Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.
Page 16
( 1 ) In some circumstances, if the user connects the LCD to PC via HDMI port for video and audio signals, the LCD may display incorrectly on a full screen. If so, please adjust the display card setting on display size to fi x the issue. UM-CV-751-RP-F821-Q220V1 P.12 www.austin-hughes.com...
Page 17
< 3.4 > Options : Touchscreen & driver RP-F821 F21" USB Touchscreen Specifi cation Model e-Resistive e-Capacitive Technology 5-Wire Resistive Capacitive Touch Point Single Single Method Stylus or Finger Finger Activation Force ≤ 50g / Stylus=R0.8 ≤ 50g Durability 10 million touches...
Page 18
1220 mA 749 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 4.16A 6.25A Effi ciency For DC power option : ( 1 ) If the unit with LCD, earthing may be required UM-CV-751-RP-F821-Q220V1 P.14 www.austin-hughes.com...
< 3.6 > Options : MIL-type or Lockable Connector RP-F821 Input Part no. MIL Standard MIL - type MS3470W8-33P MIL - DTL - 26482 DC Power Connector ( Male ) MS3470W14-15P MIL - DTL - 26482 ( Male ) There are several additional MIL DC and VGA connector types with varying design characteristics to meet cost considerations and to provide users with the most design fl...
