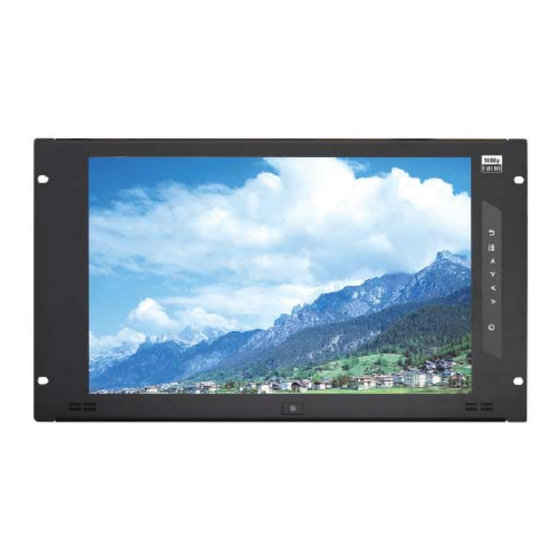

CyberView RP-F617TV User Manual

17” fhd 1080p lcd 6u rackmount display panel w/ digital tv
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
dedicated KVM switch and rackmount screen technology

User Manual

17" FHD 1080p LCD
RP-F617TV
6U Rackmount Display Panel
w/ Digital TV
751
Designed and manufactured by Austin Hughes
UM-CV-751-RP-F617TV-Q215V1
www.austin-hughes.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RP-F617TV and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CyberView RP-F617TV

Summary of Contents for CyberView RP-F617TV

  • Page 1: User Manual

    KVM switch and rackmount screen technology User Manual 17” FHD 1080p LCD RP-F617TV 6U Rackmount Display Panel w/ Digital TV Designed and manufactured by Austin Hughes UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
  • Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...

  • Page 3: Table Of Contents

    Contents < Part. 1 > RP-F617TV Package Content Structure Diagram & Dimension P.1 - 2 Installation LCD Specifi cations / OSD < Part. 2 > Product Specifi cations P.4 - 5 On-screen Display Operation ( OSD ) < Part. 3 >...
  • Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...

  • Page 5: Part. 1 > Rp-F617Tv

    < Part 1 > < 1.1 > Package Content RP-F617TV RP-F617TV unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 < 1.2 > Structure Diagram Front view Power adapter Rear view...
  • Page 6 (W x D x H) Weight Weight 480 x 48 x 266 mm 529 x 124 x 451 mm 4.5 kg 6 kg RP-F617TV 18.9 x 1.9 x 10.5 inch 20.8 x 4.9 x 17.8 inch 9.9 lbs 13.2 lbs UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...

  • Page 7: Installation

    < 1.3 > Installation RP-F617TV Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack.

  • Page 8: Product Specifi Cations

    Auto-sensing 100 to 240VAC, Power 50 / 60Hz Power Consumption Screen display ON 34W or less Power saving mode 4W or less Power button OFF 1W or less Safety FCC & CE certifi ed Regulatory Environmental RoHS2 & REACH compliant UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
  • Page 9 RP-F617TV Operating Temperature 0 to 55°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Product ( W x D x H ) 480 x 48 x 266 mm Physical Specifi...

  • Page 10: On-Screen Display Operation ( Osd )

    All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...

  • Page 11: Remote Controller

    < Part 3 > Digital TV - ATSC < 3.1 > Remote Controller RP-F617TV UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
  • Page 12 Show the EPG when watching channel FREEZE key to hold the picture PAUSE [ Reserved for future use ] SUBPAGE [ Reserved for future use ] SIZE [ Reserved for future use ] REVEAL [ Reserved for future use ] SUBTITLE UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...

  • Page 13: On-Screen Display Operation ( Osd )

    < 3.2 > On-screen Display Operation ( OSD ) RP-F617TV Press MENU key to display menu or close the current menu and open the previous menu. And press LEFT / RIGHT to select sub menu. Press ENTER key to sub menu.
  • Page 14 ■ Press UP / DOWN keys to choose the channel which you want to select. ■ Press ENTER key to select the channel if in the channel list. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.10 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...

  • Page 15: Picture Menu

    RP-F617TV < 3.2.2 > Picture Menu Enter Picture Menu, you can select Picture Mode, Color Mode, Zoom Mode, 3DNR, Backlight, DLC and Color Range items by pressing UP / DOWN keys. ■ Press UP / DOWN keys to select the different items.
  • Page 16 < 3.2.2.3 > Zoom Mode Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.12 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
  • Page 17 RP-F617TV < 3.2.2.4 > Backlight Menu ■ Press UP / DOWN keys to select different setting. ■ Press LEFT / RIGHT keys to change the value. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.
  • Page 18 ■ Press ENTER key for a moment to restore the window. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. Power off both the computer and the TV set before making any connection. P.14 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...

  • Page 19: Audio Menu

    RP-F617TV < 3.2.3 > Audio Menu Enter Audio menu, you can select Equalizer Standard, MTS, Audio Language, SPDIF Type, Surround Sound, Audio Only and AVC items by pressing UP / DOWN keys. ■ Press UP / DOWN keys to select the different items.
  • Page 20 < 3.2.3.3 > Audio Language Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.16 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
  • Page 21 RP-F617TV < 3.2.4 > Timer Menu Enter Time menu, you can select Sleep Timer, Time Zone, DST, Time Format, Auto Sync, Clock, Wake Up, 3D Type 2D, 3D Detect and 3D_LR items by pressing UP / DOWN keys. ■ Press UP / DOWN keys to select the different items.

  • Page 22: Time Menu

    ■ Press UP / DOWN keys to select different setting. ■ Press LEFT / RIGHT keys to change the value. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.18 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
  • Page 23 RP-F617TV < 3.2.4.4 > Wake Up Menu ■ Press UP / DOWN keys to select different setting. ■ Press LEFT / RIGHT keys to change the value. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.

  • Page 24: Setup Menu

    < 3.2.5.1 > Menu Language Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.20 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
  • Page 25 RP-F617TV < 3.2.5.2 > Transparent Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.
  • Page 26 ■ Press UP / DOWN keys to select different setting. ■ Press LEFT / RIGHT keys to change the value. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.22 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
  • Page 27 RP-F617TV < 3.2.5.5 > Restore Default Menu ■ Press ENTER key to enter the restore menu. ■ Press LEFT / RIGHT keys to select yes or no. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.
  • Page 28 ■ Press LEFT / RIGHT keys to change the value. ■ Press ENTER key to enter the sub-menu or set the select. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.24 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...

  • Page 29: Lock Menu

    RP-F617TV < 3.2.6 > Lock Menu Followed by the Lock Menu, Enter Password, Change Password, System Lock, Input Block, US, Canada, RRT Setting and Reset RRT are the items, which can be selected by pressing UP / DOWN keys. RRT Setting and Reset RRT are only available in DTV when the program has RRT.
  • Page 30 < 3.2.6.3 > US Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to enter the sub-menu. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu. P.26 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
  • Page 31 RP-F617TV < 3.2.6.3.1 > TV Rating Menu ■ Press UP / DOWN keys to select different setting. ■ Press ENTER key to set the select. ■ Press MENU key to return the previous menu. ■ Press EXIT key to exit the main menu.
  • Page 32 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2015 Austin Hughes Electronics Ltd. All rights reserved. P.28 UM-CV-751-RP-F617TV-Q215V1 www.austin-hughes.com...
