Summary of Contents for CyberView RP-F117

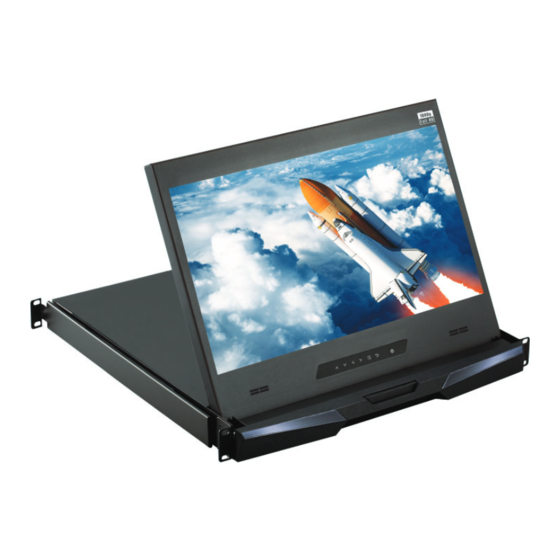

- Page 1 KVM switch and rackmount screen technology User Manual 17” FHD 1080p LCD RP-F117 RP-F1417 1920 x 1080 native resolution 1920 x 1080 native resolution Ultra short depth 400mm / 15.7″ Designed and manufactured by Austin Hughes UM-CV-751-RP-F117-Q220V1 www.austin-hughes.com...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RP-F117-Q220V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
< Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input HDMI 1.4 video input Audio input & output ( RP-F117 only ) P.10 F17” Touchscreen : Resistive ( 1-point touch ) P.11 DC Power : 12V / 24V / 48V / 125V P.13... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-F117-Q220V1 www.austin-hughes.com...
-
Page 5: Rp-F117
< Part 1 > RP-F117 / RP-F1417 < 1.1 > Package Content RP-F117 unit X 1 RP-F1417 unit X 1 - 6ft VGA cable X 1 - 6ft VGA cable X 1 - Power cord X 1 - 2.5A Power adapter & Power cord X 1 - M6 screw, cage nut &... - Page 6 < 1.2 > Dimension - RP-F117 Front View Rear View DVI-D Power UNIT : mm Side View 1mm = 0.03937 inch Top View RP-F117 Product Dimension Packing Dimension Gross Model Net Weight (W x D x H) (W x D x H) Weight 441.6 x 480 x 44 mm...
- Page 7 (W x D x H) Weight 441.6 x 400 x 44 mm 588 x 758 x 120 mm 8.7 kg 13.7 kg RP-F1417 17.4 x 15.7 x 1.73 inch 23.1 x 29.8 x 4.7 inch 19.1 lb 30.1 lb UM-CV-751-RP-F117-Q220V1 www.austin-hughes.com...
-
Page 8: Installation
Measure the depth of the front and rear mounting rails. ■ Align each rear mounting bracket to a suitable length. Step Complete the installation ■ Fix the display drawer into the rack. M6 screw, cage nut & cup washer x 8 are provided. UM-CV-751-RP-F117-Q220V1 www.austin-hughes.com... -
Page 9: Specifi Cations / Osd
Environmental Operating Temperature 0 to 55°C degree Humidity 20~90%, non-condensing Conditions Altitude 16,000 ft Storage / Non-operating Temperature -20 to 60°C degree Humidity 5~90%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random UM-CV-751-RP-F117-Q220V1 www.austin-hughes.com... - Page 10 RP-F117 RP-F1417 Physical Specifi cation Product ( W x D x H ) 441.6 x 480 x 44 mm 442 x 400 x 44 mm 17.4 x 18.9 x 1.73 inch 17.4 x 15.7 x 1.73 inch Packing ( W x D x H )
-
Page 11: On-Screen Display Operation ( Osd )
: To adjust the vertical position of the video Clock : To auto adjust H. Size of the screen Phase : To fi ne tune the screen. Picture size : FULL SCREEEN / 4:3 / 5:4 / 16:10 UM-CV-751-RP-F117-Q220V1 www.austin-hughes.com... - Page 12 : Auto / Line in / DP Volume : Adjust the volume of sound Sleep mode : Set the off time - 10 min / 20 min / 30 min / 50 min / 60 min / 120 min / 240 min UM-CV-751-RP-F117-Q220V1 www.austin-hughes.com...
- Page 13 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 14 < 3.2 > Options : DP Option - Display Port ( DP 1.0, HDCP 1.3 ) RP-F117 AC Input 100~240V RP-F1417 +12 VDC HDMI Option - HDMI ( HDMI 1.4, HDCP 1.4 ) HDMI RP-F117 AC Input 100~240V HDMI RP-F1417...
- Page 15 USB Type A Compatibility Windows 7 / XP / Vista, Linux ■ RP-F117 Dimension will be changed if touchscreen required ■ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc ■ For detailed information, please refer to the attached CD disc ■...
- Page 16 Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the fi rst setup UM-CV-751-RP-F117-Q220V1 P.12 www.austin-hughes.com...
- Page 17 For DC power option : ( 1 ) If the unit with LCD, earthing may be required ( 2 ) DC option excludes AC power adapter and power cord. ( 3 ) RP-F117 Dimension will be changed if DC power required UM-CV-751-RP-F117-Q220V1 P.13 www.austin-hughes.com...
- Page 18 6#32*4.5 mm screw x 8. necessary ■ fl at head screw Installation completed 6#32*4.5mm x 2 This step is necessary for front. Failure to complete this will cause damage. fl at head screw 6#32*4.5mm x 2 UM-CV-751-RP-F117-Q220V1 P.14 www.austin-hughes.com...
- Page 19 Intentionally Left Blank UM-CV-751-RP-F117-Q220V1 www.austin-hughes.com...
- Page 20 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2020 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-F117-Q220V1 P.16 www.austin-hughes.com...
