User Manual
Designed and manufactured by Austin Hughes
UM-CV-751-RP-HF719-Q322V1
dedicated KVM switch and rackmount screen technology

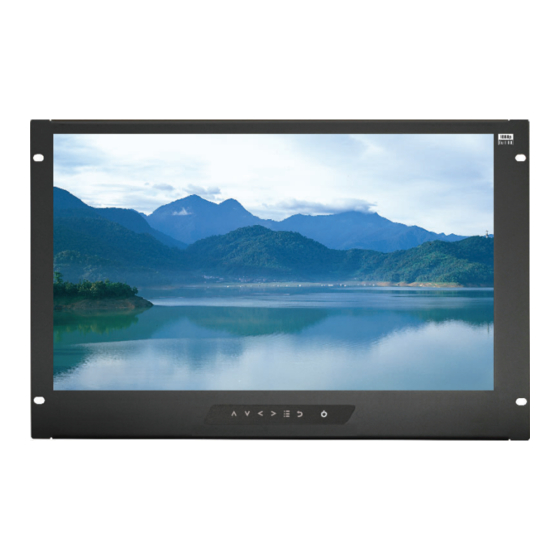

19" High Brightness FHD LCD 1000 cd/m²
RP-HF719
7U Rackmount Display Panel
Options :
- SDI / MCS
- HDMI / DP / Audio
- Touchscreen / DC power
- MIL-type or lockable connector
www.austin-hughes.com
751
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for CyberView RP-HF719
Summary of Contents for CyberView RP-HF719
- Page 1 KVM switch and rackmount screen technology User Manual 19” High Brightness FHD LCD 1000 cd/m² RP-HF719 7U Rackmount Display Panel Options : - SDI / MCS - HDMI / DP / Audio - Touchscreen / DC power - MIL-type or lockable connector...
- Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit diff erent from that to which the receiver is connected. UM-CV-751-RP-HF719-Q322V1 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-HF719 Package Content Structure Diagram & Dimension Installation < Part. 2 > Specifi cations / OSD Product Specifi cations On-screen Display Operation ( OSD ) < Part. 3 > Options 3G / HD / SD-SDI Broadcast-grade input P.10... - Page 4 fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-HF719-Q322V1 www.austin-hughes.com...
-
Page 5: Rp-Hf719
< Part 1 > < 1.1 > Package Content RP-HF719 RP-HF719 unit X 1 - 6ft VGA cable X 1 - Power adapter X 1 - Power cord X 1 - Fastener screw for rear bracket x 2 < 1.2 > Structure Diagram... - Page 6 (W x D x H) Weight 480 x 57.5 x 310 mm 529 x 124 x 451 mm 5.8 kg 7.9 kg RP-HF719 18.9 x 2.3 x 12.2 inch 20.8 x 4.9 x 17.8 inch 12.8 lb 17.4 lb UM-CV-751-RP-HF719-Q322V1...
-
Page 7: Installation
< 1.3 > Installation RP-HF719 Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. Step ■ Fix the LCD into the rack. -
Page 8: Product Specifi Cations
Auto-sensing 100 to 240VAC, 50 / 60Hz Power Consumption Screen ON Max. 40W Power saving mode Max. 2W Power button OFF Max. 1W Compliance FCC & CE Safety CE / LVD & UKCA Environmental RoHS3 & REACH / WEEE UM-CV-751-RP-HF719-Q322V1 www.austin-hughes.com... - Page 9 RP-HF719 Environmental Operating Temperature -20 to 70°C degree Conditions Humidity 10~90%, non-condensing Altitude 16,000 ft Storage / Non-operating Temperature -20 to 70°C degree Humidity 5~95%, non-condensing Altitude 40,000 ft Shock 10G acceleration (11ms duration) Vibration 10~300Hz 0.5G RMS random Physical Product ( W x D x H ) 480 x 57.5 x 310 mm...
- Page 10 Intentionally Left Blank...
-
Page 11: On-Screen Display Operation ( Osd )
< 2.2 > On-screen Display Operation ( OSD ) RP-HF719 Membrane Switch Function Turn the monitor on or off Display the OSD menu Act as an Enter key to select screen setting options Scroll through menu options and adjust the displayed control... - Page 12 Red / Green / Blue color balance Sharpness : Adjust the image from weak to sharp : Adjust the screen hue value Saturation : Adjust the saturation of the image color Dynamic luminous control : Control the dynamic brightness UM-CV-751-RP-HF719-Q322V1 www.austin-hughes.com...
- Page 13 RP-HF719 OSD Set Language : Select the language in which the OSD menu is displayed - English OSD H-Position : Align the screen image left or right OSD V-Position : Align the screen image up or down OSD time out...
- Page 14 Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView displays, a SDI input module can support up to 1080p @60Hz resolution without using additional space or power and it comes standard with a 2-year warranty.
- Page 15 LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.
-
Page 16: Av4.4 / Dp / Bnc
( Audio input & output ) Audio out in in Power Video PC DVI-D HDMI BNC Option - Composite ( BNC - Audio ( Audio input & output ) Audio out in in Power Video PC DVI-D UM-CV-751-RP-HF719-Q322V1 P.12 www.austin-hughes.com... - Page 17 < 3.4 > Options : Touchscreen & driver RP-HF719 Resistive 1-pt Touchscreen Specifi cation Model e-Resistive Technology 5-Wire Resistive Touch Point Single Method Stylus or Finger Activation Force ≤ 50g / Stylus=R0.8 Durability 10 million touches Response Time 15 ms Optical Transmittance 80% ±...
- Page 18 Step 2. Double click the Setup.exe Step 3. Follow the installation instruction to fi nish the setup Step 4. After installation, run the TouchKit program & the “4 point calibration” Please do the initial calibration after the fi rst setup UM-CV-751-RP-HF719-Q322V1 P.14 www.austin-hughes.com...
- Page 19 < 3.5 > Options : DC Power RP-HF719 Model 125V 250V Input rating Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt 300-Volt Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V 180 ~ 425V Input current - No load...
-
Page 20: Mil-Type Or Lockable Connector
The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2022 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-HF719-Q322V1 www.austin-hughes.com...
