Page 1: User Manual
KVM switch and rackmount screen technology User Manual 17” / 19” / 20” LCD RP-717 / RP-819 / RP-920 Rackmount Display Panel Options : - SDI / MCS - AV / HDMI / Audio - Touchscreen / DC power... - Page 2 ■ Re-position or relocate the receiving antenna. ■ Increase the separation between the equipment and receiver. ■ Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. UM-CV-751-RP-717-Q413V5 www.austin-hughes.com...
-
Page 3: Table Of Contents
Contents < Part. 1 > RP-717 / RP-819 / RP-920 Package Content Structure Diagram & Dimension P.1 - 4 Installation Specifi cations / OSD / Remote Controller < Part. 2 > Product Specifi cations P.6 - 9 On-screen Display Operation ( OSD ) P.10 - 11... -
Page 4: Before Installation
fi rst, not directly on the parts you are cleaning. Gently wipe the surface. Use as little pressure as possible. Wait until your monitor is completely dry before plugging it in and powering it up. UM-CV-751-RP-717-Q413V5 www.austin-hughes.com... -
Page 5: Package Content

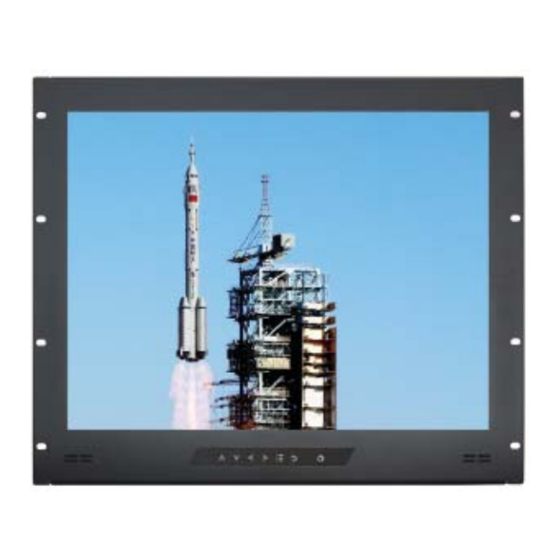

< Part 1 > < 1.1 > Package Content RP-717 / 819 / 920 RP-717 or RP-819 or RP-920 X 1 6ft VGA cable X 1 Power adapter X 1 Power cord X 1 < 1.2 > Structure Diagram RP-717... - Page 6 < 1.2 > Dimension - RP-717 Front View Side View RP-717 UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H) Weight Weight 480 x 54.2 x 310 mm...
- Page 7 < 1.2 > Dimension - RP-819 RP-717 / 819 / 920 Front View Side View RP-819 UNIT : mm Bottom View 1mm = 0.03937 inch Product Dimension Packing Dimension Gross Model (W x D x H) (W x D x H)
- Page 8 (W x D x H) Weight Weight 480 x 63.5 x 399 mm 583 x 124 x 529 mm 8.4 kg 10.7 kg RP-920 18.9 x 2.5 x 15.7 inch 23 x 4.9 x 20.8 inch 18.5 lbs 23.5 lbs UM-CV-751-RP-717-Q413V5 www.austin-hughes.com...
-
Page 9: Installation
< 1.3 > Installation RP-717 / 819 / 920 RP-717 / RP-819 Step ■ Mount the display panel with M6 screw set. ■ M6 screw x 4 pcs required ( Left & right side ). M6 screw sets are not provided. - Page 10 < Part 2 > < 2.1 > Product Specifi cations - RP-717 / RP-819 RP-717 RP-819 Panel Manufacturer Panel Size ( diagonal ) 17-inch TFT color LCD 19-inch TFT color LCD Display pixel ( dots x lines ) 1280 x 1024 1280 x 1024 Brightness ( typ.
- Page 11 RP-717 / 819 / 920 Operating Temperature 0 to 50°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Physical RP-717 RP-819 Specifi cation Product ( W x D x H ) 480 x 54.2 x 310 mm...
-
Page 12: Product Specifi Cations
Auto-sensing 100 to 240VAC, Power 50 / 60Hz Power Consumption Screen display ON 48W or less Power saving mode 4W or less Power button OFF 1W or less Safety FCC & CE certifi ed Regulatory Environmental RoHS2 & REACH compliant UM-CV-751-RP-717-Q413V5 www.austin-hughes.com... - Page 13 RP-717 / 819 / 920 Operating Temperature 0 to 50°C degree Environmental Conditions Humidity 20~90%, non-condensing Storage Temperature -5 to 60°C degree Humidity 5~90%, non-condensing Shock 10G acceleration (11ms duration) Vibration 5~500Hz 1G RMS random Product ( W x D x H ) 480 x 63.5 x 399 mm...
-
Page 14: On-Screen Display Operation ( Osd )
(To auto adjustment by pressing the button for 5 seconds) Exit the OSD screen Toggle analog, digital & video connection (DVI-D and video options only) RP-717 / RP-920 Membrane Switch Function Turn the monitor on or off Display the OSD menu... - Page 15 < 2.2 > On-screen Display Operation ( OSD ) RP-717 / 819 / 920 OSD Confi guration Page Image: for the brightness, contrast, color temp, red, green, and blue Geometry: for the auto adjust, H position, V position, phase and clock...
-
Page 16: Options : 3G / Hd / Sd-Sdi Input
Austin Hughes’ SDI input is an ideal solution for the broadcast- grade video and high resolution CCTV market. Designed for use with CyberView Full HD 1080p and ultra high resolution 1920 x 1200 LCD displays, Austin Hughes provides a SDI input module without using additional space or power and it comes standard with a 2-year warranty. -
Page 17: Multi-Display Control
LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters. Designed for use with CyberView LCD displays, Austin Hughes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty. - Page 18 - HDMI ( S-Video + Composite, BNC ) - AV ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers ) - Audio Audio Power S-Video HDMI out - in - in Video PC P.14 UM-CV-751-RP-717-Q413V5 www.austin-hughes.com...
- Page 19 < 3.5 > AV3.0 Upgrade Options : RP-717 / 819 / 920 ( HDMI 1.1, CEA-861-D ) - HDMI ( DVI-D TMDS single link ) - DVI-D ( S-Video + Composite, BNC ) - AV ( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
-
Page 20: Options : Touchscreen & Driver
USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc ■ For detailed information, please refer to the attached CD disc ■ As the touchscreen unit is not made of toughened glass, please handle it carefully USB Touchscreen DVI-D Power P.16 UM-CV-751-RP-717-Q413V5 www.austin-hughes.com... - Page 21 RP-717 / 819 / 920 < 3.6 > Options : Touchscreen & driver TRB & TCB Driver Please follow the below steps to setup the touch screen:- Step 1. Run the bundled CD disc or download the driver from the link below : http://www.austin-hughes.com/downloads/RMDL/software.html...
- Page 22 36 ~ 75V Input current - No load 50 mA 50 mA 50 mA - Full load 4950 mA 2450 mA 1220 mA Output rating Output voltage: 12-Volt 12-Volt 12-Volt Output current: 4.16A 4.16A 4.16A Effi ciency P.18 UM-CV-751-RP-717-Q413V5 www.austin-hughes.com...
- Page 23 < 3.8 > Options : MIL-type or Lockable Connector RP-717 / 819 / 920 Input Part no. MIL Standard MS3470W8-33P MIL - DTL - 26482 DC Power MIL - type ( Male ) Connector MS3470W14-15P MIL - DTL - 26482...
- Page 24 The company reserves the right to modify product specifi cations without prior notice and assumes no responsibility for any error which may appear in this publication. All brand names, logo and registered trademarks are properties of their respective owners. Copyright 2013 Austin Hughes Electronics Ltd. All rights reserved. UM-CV-751-RP-717-Q413V5 www.austin-hughes.com...
