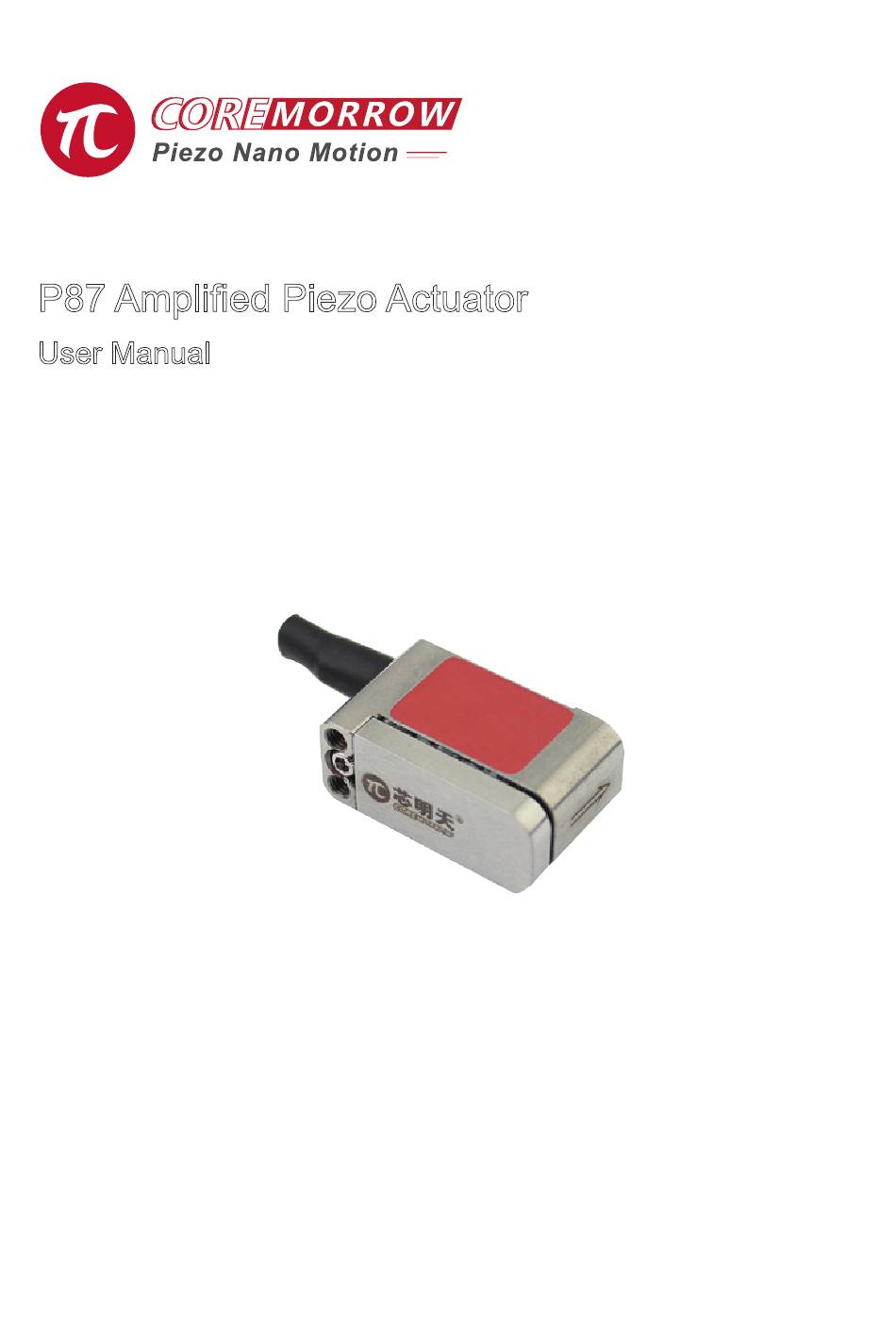

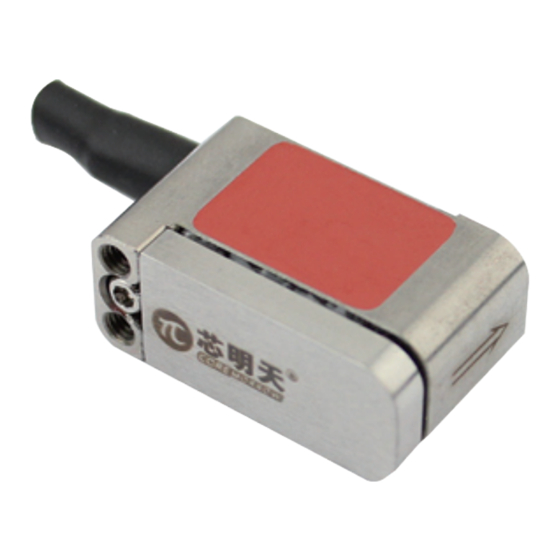

- Page 1 P87 Amplified Piezo Actuator User Manual Version: V1.0 This document describes the following products: ■ P87.X38S...
- Page 2 DECLARATION Thank you for choosing Core Tomorrow (CoreMorrow for short) products! This user manual is applicable to P87 Amplified Piezo Actuator, for your smooth and correct use of this product, please read this manual carefully before using it. Please follow the instructions in the installation and use process.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of This Manual ........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guide ............................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guide
2. Safety Guide P87 Amplified Piezo Actuator is designed with the most advanced technology and safety standards for your own safety and the correct use of the product, please observe the following points when in use. A change in temperature and pressure will charge the piezoelectric actuator, and... -
Page 6: Product Overview
P87 Amplified Piezo Actuator has the following advantages: High performance piezo stack: P87 Amplified Piezo Actuator is driven by a highly reliable ceramic actuator with a fully insulated structure, so its performance and service life are far better than the traditional actuator. -
Page 7: Product Features
P87 Amplified Piezo Actuator can travel up to 38μm, with small size, no mechanical friction, fast response speed, high repeatable positioning accuracy. This product can also be customized according to the needs, with high flexibility, easy to operate, to meet different applications. -
Page 8: Operating Environment
2. Use M2.5 screws to mount the P87 and tighten. 3. Mount a load and tighten it properly to achieve high positioning accuracy. 4. Connect P87's connector to the corresponding interface of the controller according to the identification on the leads. -
Page 9: Load
When mounting the load, ensure that the load quality is less than the maximum load capacity of P87, and try to mount the load in the center of the moving surface. The correct position to mount the load is shown below: FIG.3 The load is applied to the center of the moving surface... - Page 10 P87 Amplified Piezo Actuator User Manual The wrong mounting way is shown in the figure below: FIG.4 Try not to let the position of the center of gravity far exceed the active platform It is forbidden to mount the load on one side of the moving platform, which will cause serious damage to the product, as shown in the figure below.
-
Page 11: Operating
150V). 5.After use, please carry out voltage reset operation. Please take light steps when P87 in operation, do not knock the product, so as not to affect the use of the product or even damage the product. In order to achieve better motion precision of P87, it is recommended to use our company's supporting controller. -
Page 12: Transportation And Inspection
P87 Amplified Piezo Actuator User Manual Notes： The driving voltage shall not exceed the voltage range of P87. If any abnormal noise or oscillation occurs during use, turn off the power immediately and check the parameter setting. 6. Transportation and inspection 6.1 Transportation... -
Page 13: Maintenance And Treatment
Attention: Please handle with care when opening the package, so as not to knock against the product and cause permanent damage to it. Please do not use heavy tools or rough way to open. Please do not discard all the packaging materials which are needed for repair and return. -
Page 14: Daily Maintenance
P87 Amplified Piezo Actuator User Manual If the user cannot solve the problem by himself in the process of using, please record the problem in detail and contact CoreMorrow, and professional technical personnel will help to solve. Problems caused by improper operation are not covered by the warranty. -
Page 15: Parameter
8. Connector 8.1 Driving and Sensor Connector The connector of PZT driving wire is LEMO, and model is LEMO ERA.00.250.CTL, as shown in below. FIG.6 1-contact LEMO The sensor connector is 4-contacts LEMO, and the model is LEMO ERA.0S.304.CLL，as shown in the following figure. FIG.7 4-contacts LEMO Note：Open-loop products have only PZT drive line, no sensor line. -
Page 16: Customer Service
P87 Amplified Piezo Actuator User Manual 9.Customer Service If you have questions about the products you are currently using, please let us know the following information: Product model and relevant number The controller model Software driver version Computer operating system that installs supporting software 10.Contact us...
