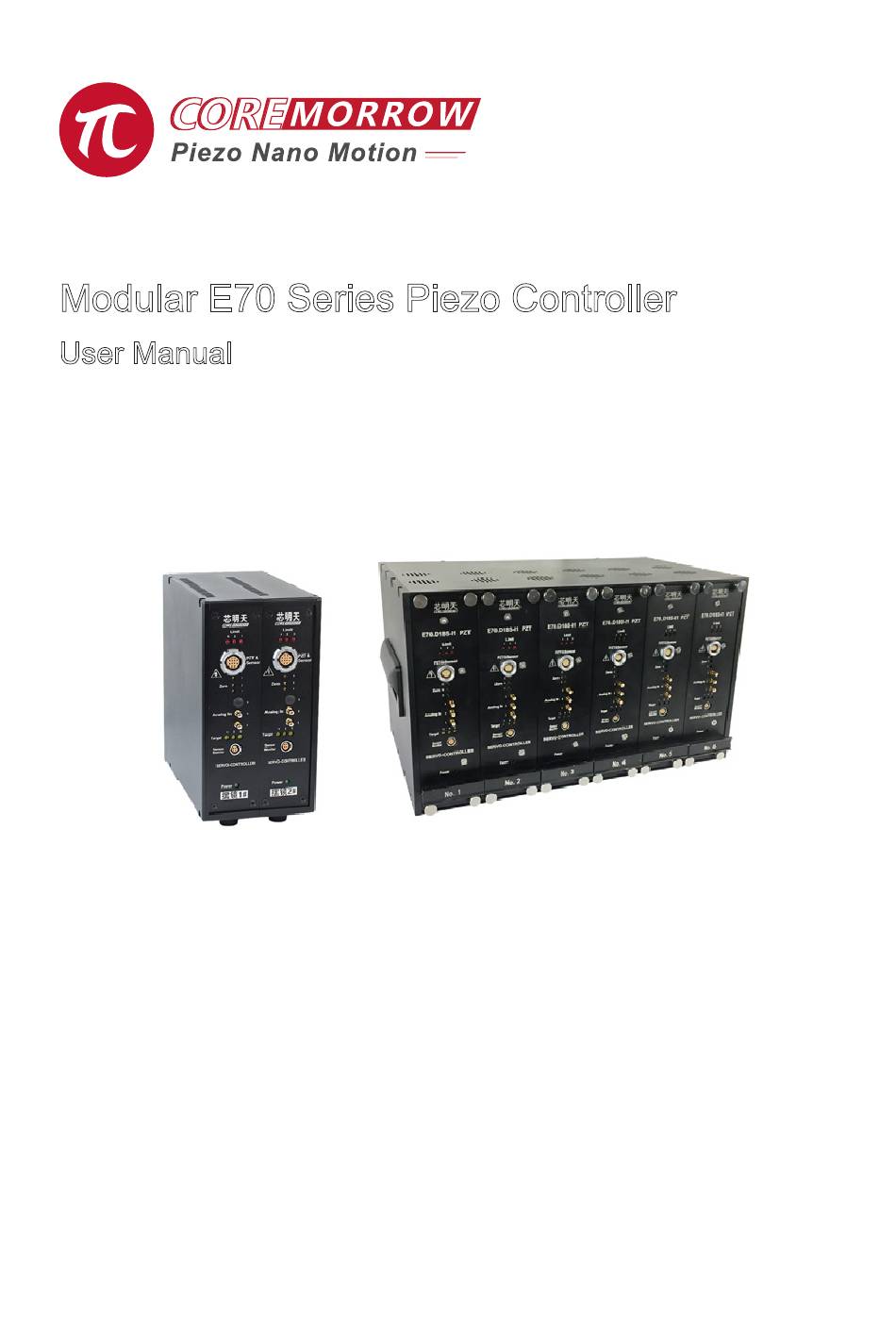

- Page 1 Modular E70 Series Piezo Controller User Manual Version: V1.0 This document describes the following products: ■ Modular E70 Servo controller SGS sensor...
- Page 2 DECLARATION Declaration! This user manual is a integrated user manual of the Modular E70 series piezoelectric controller. Please read this user manual carefully before using this controller. Follow the instructions in the manual during use. If there is any problem, please contact us for technical support. If you do not follow this manual or disassemble and modify the product yourself, the company will not be liable for any consequences arising therefrom.
-
Page 3: Table Of Contents
Contents 1.Security ………………………………………………………………………………………………………………………… 2 1.1 Introduction …………………………………………………………………………………………………………… 2 1.2 Safety Instructions ………………………………………………………………………………………………… 2 1.3 User Manual Notes ………………………………………………………………………………………………… 2 2.Features and Applications …………………………………………………………………………………………… 3 2.1 Series ……………………………………………………………………………………………………………………… 3 2.2 Appearance …………………………………………………………………………………………………………… 4 3.Checking ……………………………………………………………………………………………………………………… 6 4.Installment …………………………………………………………………………………………………………………… 6 4.1Installation Precautions …………………………………………………………………………………………… 6 4.2 Ensure ventilation …………………………………………………………………………………………………... -
Page 4: Security
If open Modular E70 privately, touching live parts may cause electric shock, resulting in serious or even fatal injury or damage to the Modular E70 series controller. Only authorized professional could open the Modular E70 series controller. -
Page 5: Features And Applications
If your user manual is incomplete, it will miss a lot of important information, cause serious or fatal injuries, and cause property damage. You have read and understood the contents of the user manual before installing and operating the Modular E70 series piezo controller. -
Page 6: Appearance
Modular E70 Series Piezo Controller User Manual 2.2 Appearance 2.2.1 Front Panel Symbol Function Description Power indicator is always on, Modular E70 is in working Power LED green condition. Output voltage to drive piezo actuator(PZT) . Sensor PZT&Sensor LEMO-ECG-2B-312 input signal Set DIP switch/software to select control mode. - Page 7 2.2.2 Rear Pane Symbol Function Description Connect the computer with the controller interface RS422 D-SUB 9 module through RS-422 port access terminal to realize computer control Power connector socket. Connect via power adapter or Power supply DC-022B(ø2.5) DC power supply. Switch KCD1-102 Control the power on and off of the piezo controller.
-
Page 8: Checking
4.Installment 4.1Installation Precautions Note! Improper installation of modular E70 series piezo controller may cause personal injury or damage modular E70 series piezo controller! Installation and using of modular E70 should be close to the power source, so that the power plug can be easily and quickly disconnected from the main power source. -
Page 9: Connect Power
Connect to the computer control mode of PC, connect to PC through the cable connection USB interface or RS-232/422 interface socket. 5.Parameter 5.1 Environmental Conditions The using environment of modular E70 series controller: Environmental conditions Condition description Application For room use only Highest relative humidity 80%, temperature can reach 30°... -
Page 10: Drawings
Modular E70 Series Piezo Controller User Manual 5.2 Drawings Type E70.D6S E70.D9S E70.D12S E70.D96S L(mm) 1280 Note: When two modules are cascaded, the total width is 90mm, and each increase for a module, the total width increases by 40mm, and so on. -
Page 11: Driving Principle
5.3 Driving Principle 6.Power Calculation ● Average output（Sine wave operation mode） Pa ≈ Upp • Us • f• Cpiezo Pa=Average output[W] Cpiezo=Piezo actuator capacitance[F] Upp=Peak and peak drive voltage [V] f=Operating frequency of the sine wave[Hz] Us=Drive voltage[V]（（Vs+）-（Vs-））... -
Page 12: Maintenance, Storage, Transportation
Modular E70 Series Piezo Controller User Manual 7. Maintenance, Storage, Transportation 7.1 Cleaning measures Note! The PCB board of the function module in the modular E70 system is an ESD (electrostatic discharge) sensitive device. Take precautions against any static build- up of these devices before use to avoid contact with circuit component leads and PCB wiring. -
Page 13: Service And Maintenance
Any part of modular E70 is dismantled, there will be no warranty service. Modular E70 is a precision instrument which should be handled with care. In case of any problem, please record the problem and contact CoreMorrow to be repaired by professional technicians. -
Page 14: Contact Us
Modular E70 Series Piezo Controller User Manual 9.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
