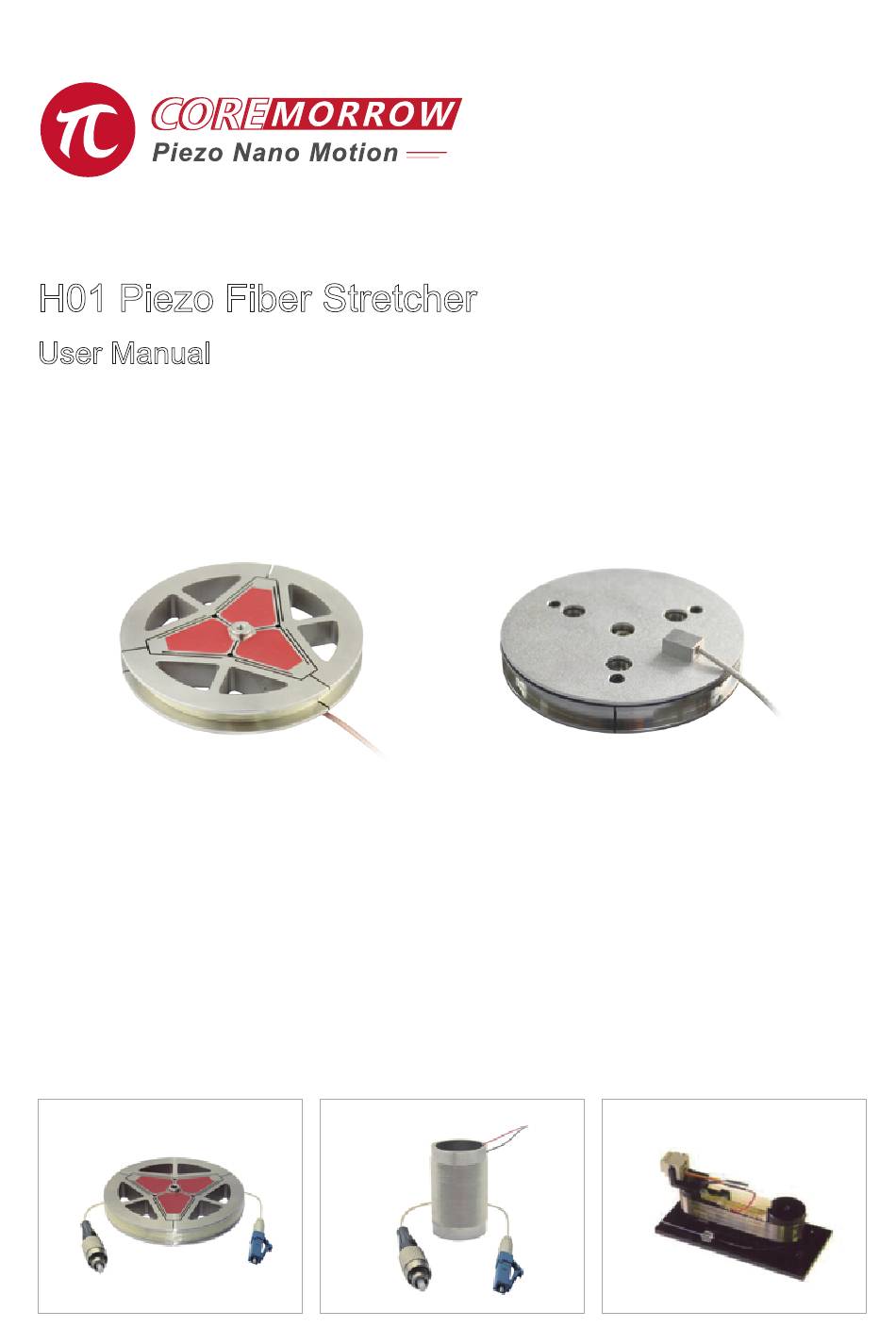

- Page 1 H01 Piezo Fiber Stretcher User Manual Version: V1.0 This document describes the following products: ■ H01.80 ■ H01.20 ■ H01.6...
- Page 2 DECLARATION Thank you for choosing Core Tomorrow (CoreMorrow for short) products! This user manual is applicable to H01 piezo fiber stretcher, for your smooth and correct use of this product, please read this manual carefully before using it. Please follow the instructions in the installation and use process.
-
Page 3: Table Of Contents
Contents 1. Introduction ............................2 1.1 Purpose and content ........................2 1.2 Symbol and meaning ........................2 1.3 Users of this Manual .........................2 1.4 Manual Lost and Reissued ......................2 2. Safety Guidelines ..........................3 3. Product Overview ...........................4 3.1 Product Introduction ........................4 3.2 Product Features ........................5 3.3 Motion direction ........................5 4. -
Page 4: Introduction
The default user of this manual has knowledge of piezoelectric products and controllers, and has a certain basis for their installation and use. 1.4 Manual Lost and Reissued If this manual is lost, please contact CoreMorrow. We will send you the latest version of the user manual. -
Page 5: Safety Guidelines
2. Safety Guidelines H01 piezo fiber stretcher is designed with the most advanced technology and safety standards for your own safety and the correct use of the product, please observe the following points when in use. A change in temperature and pressure will charge the piezoelectric actuator, and the actuator will remain charged for a period of time when it is disconnected from the controller, so the operator should pay attention to when in use. -
Page 6: Product Overview
The radial stroke of H01.80 piezo fiber stretcher is up to 80um, the stretching length of a circle of fiber is more than 500μm. The axial stiffness of H01.20 is 30N/μm. H01 features fast response speed, high repeated positioning accuracy, high flexibility and easy to operate, so it can meet different applications. -
Page 7: Product Features
Optional large stroke and large stiffness versions.; The product can be used statically or dynamically. 3.3 Motion direction H01.80 H01.20 FIG.1 Motor direction of H01 piezo fiber stretcher 4. Operating environment Operating temperature: -20~80℃ Environment free of dust, clean, and non-corrosive substances Relative humidity: <60%... -
Page 8: Installation And Operation
4 fixed holes φ4.2 through hole FIG.2 H01 Installation Diagram 1.Wrap the fiber neatly, evenly and closely in the groove. 2.Fix and tighten H01 with M3 or M4 screws. 3.Properly tighten the fixing screw. 4.Connect the product to the controller. -
Page 9: Operating
150V). 5.After use, please carry out voltage reset operation. Please take light steps when H01 in operation, do not knock the product, so as not to affect the use of the product or even damage the product. In order to achieve better motion precision of H01, it is recommended to use our company's supporting controller. -
Page 10: Transportation And Inspection
H01 Piezo Fiber Stretcher User Manual 6. Transportation and inspection 6.1 Transportation This product is packed in cartons. Transportation is carried out under the packaging conditions. This product can be transported by various means of transport under normal circumstances. In the process of transportation, direct rain and snow, corrosive substances, strong collision, extrusion, irregular placement and other improper behaviors should be avoided as far as possible. -
Page 11: Maintenance And Treatment
7.Maintenance and Treatment 7.1 Daily maintenance If the product is not used for a long time, please store it in a dust-free, well-ventilated, clean and non-corrosive indoor environment after packaging. In the daily maintenance, please do not loosen the bolts on the product structure, so as not to affect the movement accuracy of the product. -
Page 12: Disposal
In order to fulfill our responsibility as a product manufacturer, we will dispose all old equipments on the market in an environmentally friendly manner. If you have equipment that cannot be disposed, you can ship it to CoreMorrow. Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China Tel: +86-451-86268790 8. -
Page 13: Customer Service
Computer operating system that installs supporting software 10.Contact us Harbin Core Tomorrow Science & Technology Co., Ltd. Tel: +86-451-86268790 Fax: +86-451-86267847 Email: info@coremorrow.com Website: www.coremorrow.com Address: Building I2, No.191 Xuefu Road, Nangang District, Harbin, HLJ, China CoreMorrow Official and CTO WeChat are below:...
