Summary of Contents for PXM PxArt+ 3

  • Page 1 PX389 PxArt+ 3 MANUAL...
  • Page 2: Table Of Contents

    11. Dimensions......................12. Technical data......................Declaration of conformity....................Manufacturer reserves the right to make modifications in order to improve device operation. PXM Marek Żupnik spółka komandytowa tel.: (12) 626 46 92 Podłęże 654 fax: (12) 626 46 94 32-003 Podłęże E-mail: info@pxm.pl...
  • Page 3: General Description

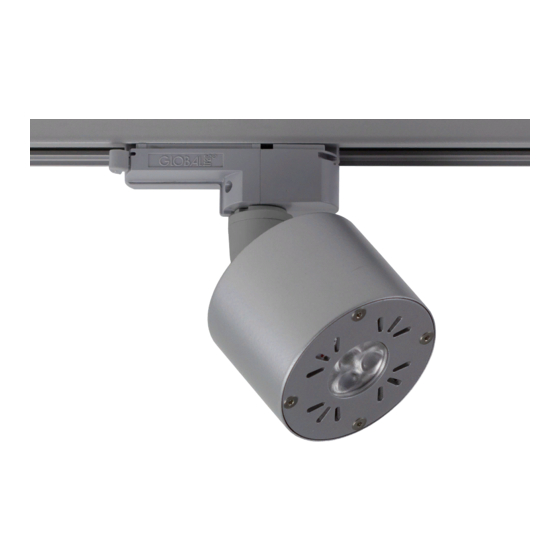

    1. GENERAL DESCRIPTION PxArt + 3 is a professional LED illuminator designed to illuminate museum and exhibition displays. ® By using the latest semiconductor light sources OSLON Square and advanced control electronics, a high-class illuminator has been created that meets very high requirements concerning museum and exposition lighting.
  • Page 4 While working at an ambient temperature of 25°C housing unit can heat up to 90°C. Because of the danger of burns, avoid direct contact with the casing. In case of improper usage of the product it may cause a risk of serious injury or death because of the threat of fire.
  • Page 5: Version Data

    The dimming of the lamp brightness occurs when the temperature is above 70°C, which prevents the device from overheating. If the device reaches a temperature of 90°C, the power of the lamp will be totally reduced. The light is then switched automatically in the event of temperature drop below the maximum temperature (90°C).
  • Page 6: Lamp Description

    4. LAMP DESCRIPTION DMX+ DMX- a three-phase track for control systems ® GLOBAL Trac Pulse Control end feed power cable DMX cable (shielded cable, two-core cable) adapter GLOBAL Trac GAC 600 5. DMX SIGNAL AND POWER CONNECTION 5.1. Adapter GLOBAL Trac GAC 600 CONTACTS DMX DMX - (on the opposite side DMX +)
  • Page 7: Section Through The Dmx Global Trac Pulse Control Current Rails

    5.2. Section through the DMX GLOBAL Trac Pulse control current rails. POWER phase 2 phase 3 phase 1 neutral DMX - DMX + 6. MANUAL CHANGE OF LAMP SETTINGS The lamp has been equipped with a button which allows for changing the brightness level. The button has been placed at the bottom part of the junction box, above the lamp reflector.
  • Page 8: Co-Operation With The Px277 Configurator

    The programming button above the reflector has been equipped with a diode which indicates the condition of the lamp. Depending on a situation, the diode signals the following: start of the lamp - quick flickering of the diode for 2 seconds, DMX signal receiving - slow flickering of the brightness adjustment button, (1Hz frequency) in the first minute after receiving the DMX signal.
  • Page 9: Description Of The Information Parameters

    7.1. Description of the information parameters PX277 controller allows you to read important information concerning the lamp to which it has been connected. Model Lamp model PX389 +MONO NEXT Lamp operation time (total operation time of the lamp, also Bright. address without diodes turned on) and lighting time are presented as 00y 001d 06h: 48m follows (designations from the left):...
  • Page 10: Scene Brightness

    8.2. Scene brightness Lamps from PxArt series can work without using DMX control. In such case, PxArt Settings Controller enables changing the scene brightness value. This value can be set between 0 to 255. Model [Scene bright.] set to value 0 turns off the PX389 +3 MONO stage and turns the value 255 to 100%.
  • Page 11: Restoring Default Settings

    8.5. Restoring default settings The device comes with the option to restore default settings. To use this option, select the [Default sett.] menu and press "enter". A window informing about the need to press "previous" and "next" buttons will appear for 2 seconds simultaneously.
  • Page 12 Description Parameter name DEVICE_MODEL_ 0x0080 device description, e.g. name DESCRIPTION MANUFACTURER_LABEL 0x0081 manufacturer description, e.g. name DEVICE_LABEL * 0x0082 additional device description, It is possible to enter an additional device description using up to 32 ASCII characters. FACTORY_DEFAULTS 0x0090 device default settings DMX_PERSONALITY 0x00E0 DMX operational mode...
  • Page 13: Device Programming

    10. DEVICE PROGRAMMING Model PX389 +3 MONO NEXT Bright. address ENTER Bright. address 001 * NEXT NEXT Bright. address 512 * ENTER Scene bright. Scene bright. 000 * NEXT NEXT Scene bright. 255 * ENTER Smooth Smooth Off * NEXT NEXT Smooth P2P *...
  • Page 14: Dimensions

    11. DIMENSIONS ∅ 87 Dimensions in millimetres...
  • Page 15: Technical Data

    12. TECHNICAL DATA Power: 230 V AC Number of LEDs: Power input: 10 W Max. increase of the housing + 20° C temperature: Luminous flux: 540 lm in versions 90 CRI lub 680 lm in versions 80 Lifetime of diodes: 50 000 h Angles of reflectors: 10°, 22°, 40°...
  • Page 16: Declaration Of Conformity

    30-701 Kraków fax: 12 626 46 94 DECLARATION OF CONFORMITY according to guide lines 2004/108/WE and 2006/95/WE Name of producer: PXM Marek Żupnik sp. k. Address of producer: ul. Przemysłowa 12 30-701 Kraków declares that the product: Name of product:...
