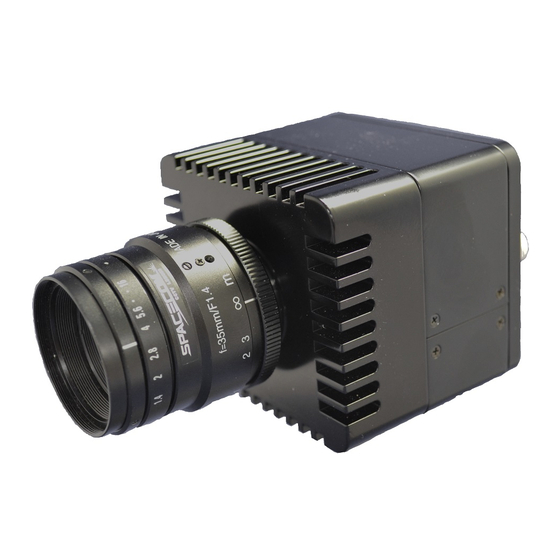

- Page 1 November 12, 2020 Ver.1.04 USB3.0 Near Infrared (InGaAs) Camera ARTCAM-130SWIR-USB3 INSTRUCTION BOOKLET ARTRAY CO., LTD. - 1 -...
-
Page 2: Table Of Contents
Contents Attention..................................- 3 - Introduction..................................- 6 - Main Features ................................- 6 - The Product..................................- 6 - Setup....................................- 7 - Camera connection method (connection example)................... - 7 - 5.1. Specifications ................................. - 8 - Camera Specification............................- 8 - 6.1. -
Page 3: Attention
1. Attention ■ About this manual 1．Before using the camera, please read this manual thoroughly. 2．Please keep this manual reachable and always refer to the contents when needed. 3．Please contact us if the manual is lost or damaged. We will provide a replacement. 4．We cannot guarantee the safety of improper uses of the camera. - Page 4 ■ For Safe Use Warning ● In following circumstances, please stop using the product and turn off the power immediately to prevent the risks of fires and electric shocks. If the product is defective, please contact us for repair or exchange. For your safety, please do not disassemble, modify or repair the camera on your own.
- Page 5 For more details, please refer to the sites below: Hardware Warranty: http: //www.artray.us/download/artray_warranty.pdf ■ Dispose To dispose this product, please return the camera to us. If you decide to dispose the camera without returning it us, please follow related regulations and have the camera disposed as an industrial waste.
-
Page 6: Introduction
2. Introduction This manual is to identify the specification of ARTCAM-130SWIR-USB3, NIR camera adopts InGaAs (Indium gallium arsenide) sensor with USB3.0 interface. 3. Main Features NIR Detection with High Sensitivity The InGaAs sensor can detect radiation invisible to human eyes and CCD/CMOS cameras in the wavelength range between 400 nm to 1700 nm bond. -
Page 7: Setup
5. Setup 5.1. Camera connection method (connection example) - 7 -... -
Page 8: Specifications
6. Specifications 6.1. Camera Specification ITEM Sensor Type 1.3 M pixels InGaAs Image Sensor Interface USB3.0 (Bulk transfer) Number of Output Bits 13bit Frame Rate 30 fps Shutter Speed 1/10,000 ~ 1sec Synchronization System Internal Synchronization / External Trigger Synchronization Lens Mount C Mount External I/O terminal... -
Page 9: Sensor Surface Perimeter Dimension
6.1.1. External Dimensions Drawing of the base without a tripod mount 6.1.2. Sensor Surface Perimeter Dimension - 9 -... -
Page 10: Sensor Specification (Based On Sensor Manufacturer's Data)
6.2. Sensor specification (based on sensor manufacturer's data) 6.2.1. List of sensor specifications ITEM Image pickup device SCD InGaAs sensor Cardinal1280 Number of effective pixels 1280(W) x 1024(H) Number of output pixels 1280(W) x 1024(H) Pixel Size 10[μm] x 10[μm] 12.8[mm] x 10.24[mm] Imaging Area (Diagonal 17.173 mm, equivalent to approximately 1 inch) -
Page 11: Camera Function
6.3. Camera function The functions of the camera are as follows. SETTING DEFAULT ITEM REMARKS RANGE VALUE Changing the shutter speed Shutter Speed 1 ~ 10,000 Shutter speed [μ sec] = set value * 100 0 ~ 255 Global Gain Gain magnification = set value * 1/32 (0 ~ 7.97times) RAW image... -
Page 12: External Trigger Function
6.4. External Trigger Function This camera has an external trigger electronic circuit, which is insulated by a photocoupler, and thus enables synchronized shooting by the input signal received from the external circuit. HR10A-7R-6S(73)(HIROSE) R1 = 2.4kΩ (5～12V) R2 = 4.7kΩ The Pin Assignment of the External I/O Terminal Pin Number Function... - Page 13 Details of trigger timing Item Items Required Time Numbers Effective Trigger Input Pulse ≧10μsec. Time required from the starting of the External ≦1μsec. Trigger to the starting of the Internal Trigger Signals (may delay caused by the photocoupler) Time required from the starting of the Internal ≦1μsec.
-
Page 14: Recommended Pc
What may cause the problem is that the regulation of the power lines becomes not enough, and so causes impudence mismatch on data signals. *For the recommended extension cable, please contact our sales department. (TEL: +81-3389-5488) ARTRAY CO., LTD. Obtained ISO 9001: 2015 2018/9/17 1-17-5 Kouenjikita, Suginami-ku, Tokyo 166-0002 Japan Tel: +81-3-3389-5488 Fax: +81-3-3389-5486 Email: sales@artray.us...
