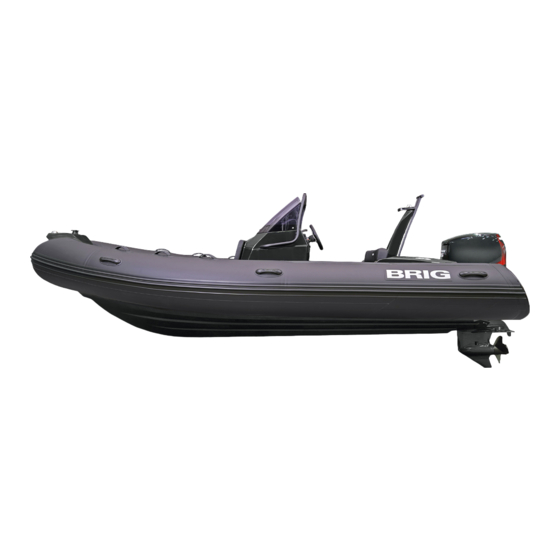

- Page 1 English OWNER'S MANUAL Rigid Inflatable Boat Eagle 5 MODEL: complete set: deluxe version: Eagle 5L sport version: Eagle 5S Design category (2013/53/EU): ISO6185: Category VIII...
-
Page 2: Table Of Contents
PREPARATION FOR EXPLOITATION INFLATION/DEFLATION BOAT TUBE STORAGE BATTERY INSTALLATION BOAT TRANSPORTATION BY TRAILER HOW TO INSTALL SUNDECK REBOARDING MEANS CREW LIMIT MOORING. STRONG POINT ANCHORING AND TOW ING. STONG POINT MAINTENANCE OPERATING REGULATIONS W ARNING SIGNS AND LABELS — 2 — "BRIG"... - Page 3 CHECK, THAT THE CHECKS HAVE BEEN MADE AND THAT THE PLANTS HAVE BEEN COMPLETED BEFORE DELYVERY. BRIG Ltd declines any responsibility for systems and accessories that hav e not been installed and checked by expert and authorised personnel. The manual and all its enclosures should be stored carefully, and the manual should always be kept aboard.
- Page 4 Craft Directive 2013/53/EU Certifying Body: INTERNATIONAL MARINE CERTIFICATION INSTITUTE Rue Abbe Cuypers 3 / B-1040 Bruxelles / Belgique Notified Body : 0609 www.imci.org Name of Manufacture: BRIG Ltd. Lozovskaya 88, Dergachy 62303 Kharkovskaya obl. UKRAINE www.brig-ribs.com — 4 — "BRIG"...
-
Page 5: Danger Levels
Before using your boat, read this MANUAL carefully and ensure that you have understood all the procedures it describes. Before taking command of your boat, be sure to have acquired experience and confidence in its operation. — 5 — EAGLE 5-2020 2378J.01... -
Page 6: Identification Plate
W ithout them the boat does not comply with the legislation in effect. The plates must never be removed. Any tampering or removal not authorised by the manufacturer is the full responsibility of the owner. — 6 — "BRIG"... -
Page 7: Safety Regulations
(ISO 6185), so always make reference to total maximum transportable weight. The max weight of the installable motors indicates the maximum overall weight applicable on the stern board, including any emergency motors. NEVER exceed the stated value. — 7 — EAGLE 5-2020 2378J.01... -
Page 8: Beaufort W Ind Scale
NOTE: T he significant wav e height is the mean height of the highest one-third of the waves , whic h approximately corresponds to the wave height estimated by an experienced observer. Some waves will be double this height. — 8 — "BRIG"... - Page 9 Extinguisher or any other fire-fighting equipment should be checked periodically and replaced with the same or superior types if expired or inefficient. Equip the boat with fire-fighting equipment before launch and use. — 9 — EAGLE 5-2020 2378J.01...
-
Page 10: Technical Specifications 1
TECHNICAL SPECIFICATIONS. The basic parameters and dimensions of the EAGLE 5 (version Eagle 5L and Eagle 5S) comply with the d ata specified in the following table. All dimensions measurments indicated have a tolerance of +/- 3%, weight measurments indicated have a tolerance of +/- 5%. -
Page 11: Complete Set 1
COMPLETE SET . In the table shows the maximum possible complete set, which may differ from your boat. Des c ri p t io n Unit of Eagle 5 measure Inflatable boat pcs . Foot pump pcs . Pad dle pcs . - Page 12 Des c ri p t io n Unit of Eagle 5 measure M ast with white navigation light p c s . Front step plate with nav igation lights p c s . Drain automatic bilge pump p c s .
-
Page 13: The Main Dimensions 1
The length of the boat with the engine can vary depending on the model of the engine and the angle of its deviation. (See Fig. D0) 5500mm ( 5.5m ) Eagle 5L Fig. D0 4950mm (4.95m) — 13 — EAGLE 5-2020 2378J.01... - Page 14 5500mm ( 5.5m ) Eagle 5S Fig. D0 4950mm (4.95m) — 14 — "BRIG"...
-
Page 15: Boat Design 1
1 7 — Mooring cleats. 1 8 — Mas t. 1 9 — Navigation lights (red and green). 2 0 — Anc hor light (white). 2 1 — Stern lifting eyes. 2 2 — Bow liftig eyes. Fig.D1 — 15 — EAGLE 5-2020 2378J.01... - Page 16 Fig.D1 — 16 — "BRIG"...
-
Page 17: Hull 1
— outer neck for water fill (15); — inspection hatches (16); — two stern cleats (17); The fore part of the cockpit may be simply converted into the sundeck by means of false decks and soft cushions. — 17 — EAGLE 5-2020 2378J.01... -
Page 18: Reinforced Buoyancy Tube 1
— spindle (6) with spring (7) and cup diaphragm (8). Also there are the following elements fitted on the tube (Fig. D1): — doubled rubbing strake (3, Fig.D1); — safety handles (4, Fig.D1); — bow step-plate with a special moulded antiskid coating (6, Fig.D1). Fig.D3 — 18 — "BRIG"... -
Page 19: Steering Console Deluxe Version 1
GPSmap, etc. ; — hatch (7); — electric horn (8); — compass (9); Steering Console — cup holder (11); Deluxe Version — fuse holding box with warning lights (located inside the Fig.D4 cons ole). — 19 — EAGLE 5-2020 2378J.01... -
Page 20: Steering Console Sport Version 2
GPSmap, etc.; — niche for things (7) with socket 12V; — electric horn (8); — compass (9); — fuse holding box with warning lights (10) (located inside the cons ole). Steering Console Sport Version Fig.D5 — 20 — "BRIG"... - Page 21 Fuse holding box with HORN warning lights Always check the fuse. Burning red LED display on the fuse box warns of H ORN faulty fuse Always keep a spare set the fuse in an easily-accessible location. Fig.D6 — 21 — EAGLE 5-2020 2378J.01...
-
Page 22: Fuel System 2
Do not smoke when refueling. Stop the engine and switch off any electric equipments before refueling. It is dangerous to pretend to be an expert. This may cause damages. Refer to expert and authorized specialists for all types of maintenance and repair. — 22 — "BRIG"... -
Page 23: Drain System 2
Do not dispose bulky objects in front of the cockpit drain sockets. Do not modify drain systems. Before navigation check the drain valves. Never locate heavy objects on the drain hoses. It will be cause of bucking, distortions and d am ag es. — 23 — EAGLE 5-2020 2378J.01... - Page 24 Before navigation check the drain valves. Never locate heavy objects on the d r ai n h o se s. It w i ll b e c a u s e o f bucking, distortions and damages. — 24 — "BRIG"...
-
Page 25: Show Er Kit 2
Always drain the water out from the water tank and all hoses, if it is likely lowering the ambient temperature to negative values. This way you prevent damage to the tank and hoses freezing water in them — 25 — EAGLE 5-2020 2378J.01... -
Page 26: Wiring Diagram
9 — Electric horn. 1 8 — Switch with automatic circuit breaker — shower pump. 1 0 — Fuel level gauge. 1 9 — Switch with automatic circuit breaker — electric horn. 1 1 — Fuel level meter — 26 — "BRIG"... -
Page 27: Preparation For Exploitation 2
Check the tube pressure before every navigation. The rated pressure value is 0.15 bar (2.2 psi). If the tube pressure more than nominal, deflate the tube slightly. Boat exploitation with board pressure more than nominal decreases boat service life. — 27 — EAGLE 5-2020 2378J.01... -
Page 28: Storage Battery Installation 2
It is possible to install the boat on several reference points. Thereby the point of support (1) mus t be an obligatory, and the point of support (2), (3), (4) must be an additional. Lateral roller supports can be used only with a view of prevention from tipping. — 28 — "BRIG"... - Page 29 Main load area Fig.D11 (keel line) Maximum transportable mass In o rd er t o avo i d th e h u ll Eagle 5 – 885 kg damage, install the boat on the stated areas only. — 29 — EAGLE 5-2020...
-
Page 30: How To Install Sundeck 3
— Further, please place two soft cushions onto the false decks and fasten them with the help of press-buttons (Fig. D12d). front seat of the steering console false deck boards Soft cushion Front locker removable cushions Always check fixation of the sundeck cushions. Fig.D12 — 30 — "BRIG"... -
Page 31: Reboarding Means 3
If you are in the water, and the ladder is folded, you can lay out it and return onboard. The ladder can be fixed with Velcro. Just unclip it.(fig.D13) Be careful - the rotating propeller on the engine Fig.D13 — 31 — EAGLE 5-2020 2378J.01... -
Page 32: Crew Limit 3
Passengers should always use the handholds to avoid falling overboard. On the picture (Fig.D14) you can see the recommended location of the crew in the boat Eagle 5. In order to use the bow seat (persons indicated in the figure as A, B, C and D) SunDeck must be folded while the boat is in moving. -
Page 33: Mooring. Strong Point 3
The breaking strength of rope shall in mooring ropes may cause general not exc eed 80% of the injury. breaking strength of the respective strong point. clam-bollard stern cleats bow U-bolt Fig.D15 — 33 — EAGLE 5-2020 2378J.01... -
Page 34: Anchoring And Tow Ing. Stong Point 3
Always use a roller (5) and clam-bollard (6) to tighten the rope to avoid damage of the buoyancy tube. Roller and clam-bollard are made of nylon and have a limited lifespan. Check them periodically for damage. Replace them if necessary. — 34 — "BRIG"... -
Page 35: Maintenance 3
0°C, it must be kept at a temperature above +15°C at least for 1 hour before to be unpacked and unfolded. For small repair boat tube use the coated fabric and glue set from the complete set. — 35 — EAGLE 5-2020 2378J.01... -
Page 36: Operating Regulations 3
This arrangement will enable you to avoid any traumas and to reach the boat. Take all possible precautions against penetration of fuel, oil or electrolyte from the storage battery into the inflatable boat. If it does happen wash thoroughly the fouled spots with water. — 36 — "BRIG"... - Page 37 If the liferaft is contained in a soft bag then it may be stowed in a compartment but shall be readily available for use. Liferaft not supplied by the manufacturer and must be installed by owner. — 37 — EAGLE 5-2020 2378J.01...
- Page 38 The steersman of the towed boat should be assisted by another crew member to monitor the process of towing. In this case, certain communication gestures should be agreed upon beforehand. The rope have to be attached to both boats in a manner ensuring its immediately, single- motion release. — 38 — "BRIG"...
- Page 39 (batteries, fuel tank, engine) overboard to ensure additional floatability. Handling under power Manoeuvrability above 30knotes (55 km/h) is limited. Sudden turn may cause loss of control. Reduce speed before sharp turn, in either direction. — 39 — EAGLE 5-2020 2378J.01...
- Page 40 Observe right-of-way as defined by Rules of the Road and required by COLREG. Always be certain to have sufficient distance to stop or manoeuvre if required to avoid c o llision s. — 40 — "BRIG"...
-
Page 41: W Arning Signs And Labels 4
Check with your dealer for the correct warning signs and labels mounting location. BOAT CAPACITY LABEL. Place of installation: on the hull near the stern seat WARNING.MAXIMUM ENGINE WEIGHT. Place of installation: on the hull of the boat near the outboard engine. — 41 — EAGLE 5-2020 2378J.01... - Page 42 SEVERE INJURY or DEATH WARNING. ROTATING PROPELLER Place of installation: from the outside of the boat transom. W ARNING. FAILURE TO FOLLOW THESE W ARNINGS COULD SEVERE INJURY OR DEATH Place of installation: on the steering console. — 42 — "BRIG"...
- Page 43 Stamp and signature 4.Bilge pump Stamp and signature Stamp and signature 5.Steering system Stamp and signature 6.Engine power system 7.Engine installation, test and Stamp and signature c om pletio n plan tsan d fittings done by — 43 — EAGLE 5-2020 2378J.01...
