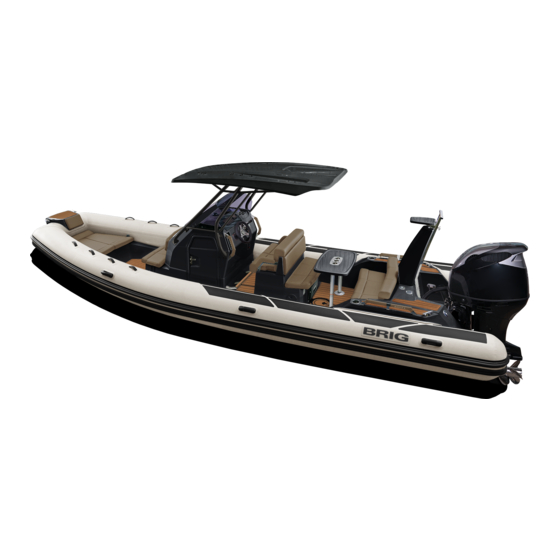

OWNER'S MANUAL
RIGID INFLATABLE BOAT
Eagle 8
MODEL:
236F.01
Design Category: B/C
Directive 2013/53/EU
2022 Owner's Manual Eagle 8
BRIG ltd
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Eagle 8 and is the answer not in the manual?

Questions and answers

Related Manuals for BRIG Eagle 8

Summary of Contents for BRIG Eagle 8

  • Page 1 OWNER’S MANUAL RIGID INFLATABLE BOAT Eagle 8 MODEL: 236F.01 Design Category: B/C Directive 2013/53/EU 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 2: Table Of Contents

    62 – REMOVABLE TABLE 32 – ELECTRIC TOILET 63 – SUN DECK 35 – FRIDGE 65 – WARNING SIGNS and LABELS 37 – TOWING 68 – GENERAL BOATING SAFETY 39 – MOORING 72 – BOATER'S CHECKLIST 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 3: Danger Levels

    “assuming command” of the craft. Your dealer or yacht club will be pleased to advise you of local sea schools, or competent instructors. This owner's manual is not a detailed maintenance or trouble-shooting guide. In the case of difficulty, refer to the boat builder or his representative. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 4 You must understand that it is your responsibility to keep safety equipment in proper condition. PLEASE KEEP THIS OWNER’S MANUAL IN A SECURE PLACE, AND HAND IT OVER TO THE NEW OWNER WHEN YOU SELL THE CRAFT. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 5: Ce Certification

    Design Category C: This craft is designed to operate in winds up to Beaufort force 6 and the associated wave heights (significant wave height up to 2 m, see Note below). Such conditions may be encountered in exposed inland waters, in estuaries, and in coastal waters in moderate weather conditions. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 6 Gale 34-40 17.2-20.7 Rough sea Strong Gale 41-47 20.8-24.4 Very rough sea Storm 48-55 24.5-28.4 Heavy Violent Storm 56-63 28.5-32.6 Very heavy Hurricane 64 and over 32 and over Stormy 14 and over 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 7: Identification Plates

    6 - Design Categories according to Directive 2013/53/EU 7 - Maximum number of persons (75 kg each) for C or B Design Categories 8 - Maximum outboard power rating (in kW) 9 - Nominal pressure for each inflatable buoyancy chambers 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 8 Plate with identification number. Installed on the hull of the boat, on the transom side, starboard side. UA-QRK12345A021 «UA» - manufacturer country code «QRK» - Manufacturer Identification Code (MIC) «12345» - boat serial number «A021» - boat production date 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 9: Technical Specifications

    Maximum recommended load (including mass of the persons and cargo onboard, but excluding mass of the max motor, the mass of the contents 1345 kg of fixed fuel, water tanks when full) (builder’s plate) Loaded displacement mass (LDC) 3330 kg 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 10 (approximately level). Avoid placing heavy weights high up. You must be sure that you clearly and unambiguously understand the meaning of all parameters of the boat. Contact your BRIG dealer for clarification. 2022 Owner’s Manual Eagle 8...

  • Page 11: Main Dimensions

    MAIN DIMENSIONS. The dimensions of the Eagle 8 comply with the data specified in the Fig.1. All dimension measurements indicated have a tolerance of ±3%. The length of the boat with the motor is shown conditionally. It can vary depending on the angle of the motor deflection.

  • Page 12: Boat General View

    BOAT GENERAL VIEW. On the Fig.2a(2b) you can see the maximum installed equipment for the Eagle 8, which may differ from the configuration of your boat. Fig.2a 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 13 Fig.2b 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 14: Crew Limit

    Folding table can not be used as a handhold. The table should be folded while the boat is moving. For the safe placement of persons "A","B","C","D" SunDeck must be folded while the boat is in moving. The buoyancy tube cannot be used as a seat for Design Category B. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 15 Fig.3a. Crew limit for Design Category B Fig.3b.Crew limit for Design Category C 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 16 Never exceed the crew limit. Always check the correct and safe accommodation of persons onboard. Reduce speed when persons are sitting on the buoyancy tube. Periodically check the handholds. There should be no damage on the handholds and their fixation. Defective handholds can cause injury. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 17: Buoyancy Tube

    Step 2. Then fill the two middle compartments to a pressure of 0.1bar (1.45 psi). Step 3. Then fill the front compartment to a nominal pressure of 0.2 bar (2.9 psi). Step 4. Fill the two middle compartments to a nominal pressure of 0.2 bar (2.9 psi). 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 18 To deflate tube compartment, open the valve cap, press down on spindle (4) (Fig. 4) with your finger and turn it counterclockwise until the spindle locks in the down position. Fig.4a 1 - Inflation valve, 2 - partition 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 19 If this happens, immediately rinse the tube with clean water using a soft sponge. Do not allow dirt or marine growths on the tube. Wash the tube with clean water or use only certified detergents. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 20: Steering Console

    18- ventilation hole 5- glass holders 12- windlass control switch 19- inlet ventilation of the waste water tank 6- engine remote control 13- cabin door 20- seat lock 7- handrail 14- steering wheel 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 21 The cabin door lock requires periodic maintenance and lubrication. Contact your BRIG dealer at least once a year to inspect and check door lock. Contact your BRIG dealer at least once a year to inspect and check door lock. The bolts securing the console to the boat hull require periodic maintenance. Contact your BRIG dealer at least once a year for inspection.

  • Page 22: Helm Seat And Cushions

    The front seats (Fig.6 (3)) can be used in two positions: as a seat and as a bolster. Fig.6 1- backrest 6- ventilation hole of the inner seat compartment 2- armrest 7- rear backrest 3- front seats / bolster 8- rear seat 4- seat body 9- fridge 5- hatch 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 23 - Do not dispose bulky objects in front of the venting holes. - Never block the ventilation openings. This will lead to the formation of mold and mildew. Insufficient ventilation can damage the fridge. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 24: Fuel System

    10 – fuel feed hose with inner Ø9.5mm (3/8") (from fuel 5 – fuel tank venting hose with inner Ø16mm (5/8") tank to outboard engine) 6 – outer neck for fuel fill 11 – fuel filter 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 25 Never use automotive style fuel filters on your boat. Dispose of all fuel residue materials in an environmentally safe fashion. These filters are available on-line, through marinas, retail marine outlets, or can be ordered via your closest BRIG dealer.
  • Page 26 Never locate heavy objects on the venting hoses. Insufficient ventilation of the fuel tank compartment can lead to the accumulation of gasoline vapors. Note that due to a possible fire or explosion danger never store flammable liquids and/or portable fuel tanks in any storage compartment aboard the vessel. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 27: Drain System

    7- drain hoses of bilge pumps (inner 12- bilge pump 2 control switch diaphragm Ø30mm (1 3/16”)) 13- console switch panel 4- drain hoses (inner Ø51mm (2”)) 8- inspection hatch 14- bilge pump 1 control switches 9- drain plug 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 28 Check the operation of the flexible diaphragm in the stern drain sockets(3) periodically. Clean it from dirt, algae, build-up if necessary. The diaphragm has a limited life and may lose its flexibility. Contact your BRIG dealer for a replacement. Bilge drain system.
  • Page 29 Always keep the manual device for removing water from the boat (bucket, hand pump) in an easily accessible place. Leaving the boat for a long time with the bilge pumps ON (“Auto” mode) can discharge the battery. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 30: Fresh Water System (Shower)

    1. Open the filler neck (6). The filler neck is labeled "Water". Fill the tank with fresh water (43L (11 gal). The water tank does not have a level sensor. The tank is completely full if water flows out of the ventilation nozzle (7) of the water tank. Close the filler neck tightly. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 31 Flush the system thoroughly periodically with fresh water to avoid mold and odor. Water on freezing can damage the fresh water system. Water from the tank and hoses must be removed if there is a risk of freezing. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 32: Electric Toilet

    16- macerator switch (emptying the 4- vented loop with valve 10- inspection hatch wastewater tank overboard) 5- inspection hatch (on the locker 11- ball faucet 2 for wastewater under the seat) discharge (3/4”) 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 33 2 (11). When waste tank is empty, switch off the button "WASTE PUMP" (16) and close "faucet 2" (11). The level gauge on the toilet control panel (15) must shows "Lo". 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 34 7.The active carbon filter (7) prevents unpleasant odors from escaping from the wastewater tank. The filter works as an adsorbent and has a limited life. Replace it if necessary. To do this, contact your BRIG dealer. Water on freezing can damage the wastewater system.

  • Page 35: Fridge

    We recommend using a separate battery to power the fridge. The fridge can discharge your battery. To power the fridge, turn ON the appropriate switch (marked as «HOUSE») on the panel with battery isolation switches (Fig.2b, (28)). Turn ON the switch (Fig.11, (6)) located in the console cabin. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 36 • The fridge has been designed with a product lock protection in the event of low battery voltage. In the event of a compressor block, follow the instructions in the fridge manual and/or contact specialized technicians or your BRIG dealer.

  • Page 37: Towing

    Use both U-bolts at the same time to tow your boat. The towing rope (2) must have a hook (3) to quickly disconnect your boat from the tugboat. This rope is not supplied by the manufacturer. You must purchase it yourself from BRIG dealers.
  • Page 38 2. Do not use for towing any structural elements of the boat that are not designed for this. 3. Always check the U-bolts, towing ring and their attachment points for damage. There should be no cracks or other damage. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 39: Mooring

    1. Be careful when mooring or navigating near rocky shores. Buoyancy tube can be damaged with sharp objects. 2. Do not use for mooring any structural elements of the boat that are not designed for this. 3. Be careful when mooring. Suddenly tensioned mooring ropes may cause injury. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 40: Anchoring

    HOW TO OPERATE WITH ANCHOR SYSTEM. Before beginning to operate with anchor system, carefully study the owner's manual for electric windlass. Please, respect all requests and follow all instructions stated in above indicated manual. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 41 In the event of overloads in the anchor system, the circuit breaker (8) can set itself (automatically) to the OFF position. In this case, you can turn ON the circuit breaker only after eliminating the reason for turning it off. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 42 The benefits of that anchor are that it are very effective in boulder bottoms, perform relatively well with low rode scopes and set fairly reliably. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 43 Always turn off the windlass circuit breaker when the windlass is not in use to prevent any accidental engagement. Always keep hands and feet off an operating windlass. If the chain gets blocked, turn the windlass off and try to free the chain extremely carefully. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 44: Electrical System

    This section reviewed the individual electrical components and their locations and functions in the electrical system. For more complex questions beyond the scope of this manual, please contact your nearest BRIG dealer. Do not modify the electrical system yourself. Any modifications, repairs and routine maintenance of the electrical system and all of its components may only be performed by authorized representatives.

  • Page 45: Battery Isolation Switches Panel

    5 - thermal circuit breaker 40A (see section “FUSE” of this manual) 6 - windlass circuit breaker (see section “ANCHORING” of this manual) 7 - bilge pump 2 control switch with resettable fuse (see sections “DRAIN SYSTEM”, “FUSE” of this manual) Fig.18 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 46 It is recommended not to leave the switch “Emergency parallel” in the ON position as under the right conditions a severe discharge could result in both batteries becoming “dead”. FUSES. PREVENT SEVERE INJURY OR DEATH! DISCONNECT ALL ELECTRICAL POWER SOURCES BEFORE ATTEMPTING TO REPAIR OR REPLACE ANY ELECTRICAL COMPONENT. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 47 The fuse holder box-1 and fuse holder box-2 (Fig.19) are located inside the steering console. All fuses in these boxes are standardized blade fuses. To replace a blown fuse, you need to open the cover of fuse holder box, pull out the blown fuse and install a new one of the same rating. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 48 For more information about the windlass circuit breaker (19), see the “ANCHORING” section of this manual. To restart the windlass circuit breaker you need to raise the lever switch (19a) to a horizontal position. Fig.19 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 49: Batteries

    When replacing batteries never mix types such as an AGM with flooded lead. For more battery information refer to your outboard owner’s manual or BRIG dealer. Usually all batteries are located inside the boat rear compartment. All batteries must be securely fixed with special fasteners.

  • Page 50: Fire Extinguishers

    10. Never smoke around batteries or bring any source of ignition near them. FIRE EXTINGUISHERS. The fire extinguisher is not supplied by the manufacturer. Your boat must be equipped with a fire extinguisher by a BRIG dealer when the boat is delivered.
  • Page 51 Read the instructions for use of the fire extinguisher carefully. Be sure you understand correctly how to use a fire extinguisher in an emergency. Train your boat crew to use a fire extinguisher correctly. In an emergency, you will have little time. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 52: Reboarding Means

    Be sure to use a hand hold for support as needed when on the ladder. Never try to board using any part of the outboard motor as serious injury may occur. Be careful while on the left platform. The ladder on the platform or its parts may be the cause of injuries. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 53: Boat Lifting

    You can see the diagram of the boat slinging for lifting in Fig. 21. Dimensions are in mm. Fig.21 1 – two bow lifting U-bolts 3 – front lifting slings 2 – two aft lifting U-bolts 4 – stern lifting slings 5 – bow hatch 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 54 5. People cannot be onboard during the lifting. 6. Never stand under or near the boat suspended. 7. Do not use other slinging methods than those specified. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 55: Boat Installation On Trailer

    Other surfaces of the boat's hull cannot be used as primary reference surfaces. Use them as support against rollover. NOTE: Never use a buoyancy tube to support a boat on a trailer or keel-blocks. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 56: Console And Stern Seat Cover

    Never use a buoyancy tube to support a boat on a trailer or keel-blocks. Incorrect installation of the boat on a trailer or keel-blocks can damage the boat's hull. You can always get more information from the BRIG dealer regarding the installation of the boat on a trailer or keel-blocks for storage.
  • Page 57 Before the cover set is folded for storage, dry it from moisture. This will help prevent the formation of mold and extend the life of the cover set. Fig.23 1 – console cover, 2 – stern seat cover, 3 - snap fastener 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 58: Overall Cover

    Tighten the rope (2) evenly on the left and right sides. Tie the rope securely. Secure the upper and lower belts (3) with buckles (4). Contact your BRIG dealer if you need advice. 2022 Owner’s Manual Eagle 8...
  • Page 59 ALWAYS CHECK ANY CLEANER BEFORE USING. Most stains can be removed if caught early, and cleaned with a soft bristle brush and a cleaner like Dawn dish soap. Create lather and lightly scrub with the brush. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 60: Sun Top

    SUN TOP. If your boat equipped with a sun top (Fig.26), you can unfold it to protect passengers from the sun's rays. Fig.26 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 61 Do not use chlorine-based cleaners to clean or wash the sun top.Their negative effects can develop over time. ALWAYS CHECK ANY CLEANER BEFORE USING. Most stains can be removed if caught early, and cleaned with a soft bristle brush and a fresh water. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 62: Removable Table

    2. It is allowed to move the boat with an unfolded table, if the boat speed is not more than 7knots (12 km/h). 3. The table cannot be used as a handholds. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 63: Sun Deck

    To fold the sun deck, follow these steps in reverse. Fig.28 1 – seat in front of the console 4 - bow cushions 2 – sun deck base 5 – sun deck cushions 3 – sun deck support 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 64 Your cushions upholstery is made of marine quality coated fabrics collection SILVERTEX®. Manufacturer - SPRADLING® company. You can find more information on the maintenance and care of this fabric on the manufacturer's website. Or contact your BRIG dealer. Do not place wet towels, all-weather gear, swimwear, etc. on cushions.

  • Page 65: Warning Signs And Labels

    Do not remove warning signs and labels. Check their suitability periodically. If the warning signs are damaged and you cannot read the text or symbols, you must order new ones from your BRIG dealer. Check with your dealer for the correct warning signs and labels location.
  • Page 66 WEIGHT WARNING THIS BOAT HAS BEEN DESIGNED FOR A MAXIMUM OUTBOARD ENGINE WEIGHT OF LBS. 7 - WARNING. READ THE OWNER’S MANUAL 2077.904 4 - WARNING Wakeboard 8 – Fresh water 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 67 Carbon monoxide (CO) can cause brain damage or death DISCHARGE OF OIL PROHIBITED 11 - Trash Overboard Label Aims to eliminate and reduce the amount of garbage being dumped into the sea from ships. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 68: General Boating Safety

    7. Anchor over the bow but never over the stern. Operation in shallow water presents a number of hazards including sand bars and water levels influenced by tides. If the vessel strikes an underwater hazard, check for boat and engine damage. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 69 BE SURE YOU DO NOT OVERLOAD THE BOAT. READ AND UNDERSTAND THE SEATING ARRANGEMENT DRAWING IN THE “CREW LIMIT” CHAPTER. THE DRAWINGS IN THAT CHAPTER DISPLAYS THE DESIGNATED SEATING ARRANGEMENT FOR A BALANCED LOAD AND BOAT MAXIMUM PERSONS SEATING CAPACITY 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 70 6. Do not operate your vessel for extended periods with the bow up in slow cruise conditions especially close behind a vessel being towed or one operating at slow speeds. 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 71 Remember to consult with local agencies since areas such as “no wake zones,” swimming beaches, “diver down flag” and inland landlocked lakes fall under their responsibilities. This section is only an introduction to the Navigation Rules. We strongly recommend additional training before getting behind the “wheel”. 2022 Owner’s Manual Eagle 8 BRIG ltd...

  • Page 72: Boater's Checklist

    - EMERGENCY GEAR (Fire extinguisher, bailer, paddle, anchor and line, signaling device, tool kit, etc?) - ENGINE (In neutral?) - CAPACITY PLATE (Are you overloaded or overpowered?) - WEATHER CONDTONS (Safe to go out?) - ELECTRICAL EQUIPMENT (Lights, horn, pump, etc?) 2022 Owner’s Manual Eagle 8 BRIG ltd...
  • Page 73 Eagle 8 MODEL SERIAL No. Date of manufacture Quality inspection stamp 2022 Owner’s Manual Eagle 8 BRIG ltd...
