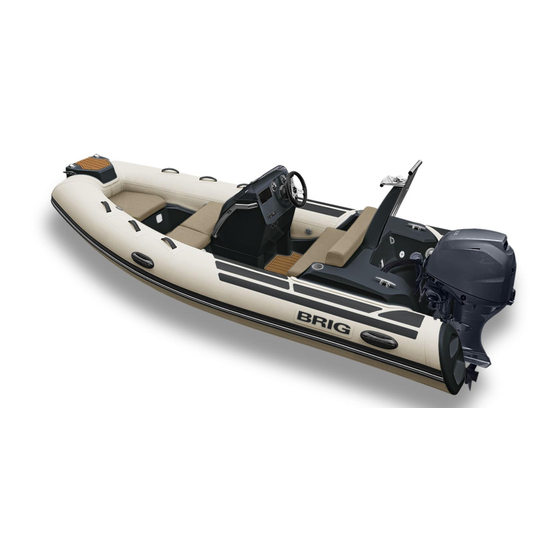

- Page 1 OWNER'S MANUAL English "EAGLE" SERIE: E780 M O D E L : complete sets: E780 E780N OverNight Design category (2013/53/EU): B / C ISO6185: Type VIII...
-
Page 2: Table Of Contents
HOW TO INSTALL STERN PLATFORMS HOW TO INSTALL SUNDECK Care & Maintenance of your Sunbrella® Fabric HOW TO INSTALL A TABLE STORAGE BATTERY INSTALLATION INFLATION/DEFLATION BOAT TUBE BOAT TRANSPORTATION BY TRAILER MAINTENANCE OPERATING REGULATIONS — 2 — "BRIG" inflatable boats... - Page 3 CHECK, THAT THE CHECKS HAVE BEEN MADE AND THAT THE PLANTS HAVE BEEN COMPLETED BEFORE DELYVERY. BRIG Ltd declines any responsibility for systems and accessories that have not been installed and checked by expert and authorised personnel. The manual and all its enclosures should be stored carefully, and the manual should always be kept aboard.
- Page 4 Recreational Craft Directive 2013/53/EU Certifying Body: INTERNATIONAL MARINE CERTIFICATION INSTITUTE Rue Abbe Cuypers 3 / B-1040Bruxelles / Belgique Notified Body : 0609 www.imci.org Name of Manufacture: BRIG Ltd. Lozovskaya 88, Dergachy 62303 Kharkovskaya obl. UKRAINE www.brig-ribs.com — 4 — "BRIG" inflatable boats...
-
Page 5: Danger Levels
DANGER LEVELS. The manual contains warnings, identified as follows: A note like this indicates that there is serious risk, that is likely to cause death or permanent serious injury, if appropriate precautions are not taken. A note like this indicates the existence of risk that may cause death or injury, if appropriate precautions are not taken. -
Page 6: Identification Plate
Without them the boat does not comply with the legislation in effect. The plates must never be removed. Any tampering or removal not authorised by the manufacturer is the full responsibility of the owner. — 6 — "BRIG" inflatable boats... -
Page 7: Beaufort Wind Scale And Corresponding State Of The Sea, After Few Hours Of Wind, Away From The Coast
BEAUFORT Wind Scale and Corresponding State of the Sea, After Few Hours of Wind, Away From the Coast. State of the sea Force Denomination Knots Km/h m/sec and wave height in meters Calm <1 <1 0-0.2 Calm Light Air 0.3-1.5 Calm Light Breeze 6-11... -
Page 8: Safety Regulations
(ISO 6185), so always make reference to total maximum transportable weight. The max weight of the installable motors indicates the maximum overall weight applicable on the stern board, including any emergency motors. NEVER exceed the stated value. — 8 — "BRIG" inflatable boats... - Page 9 ALWAYS REMEMBER ABOUT FIRE DANGER . Fire may be caused by: Crew negligence when smoking, the presence aboard of flammable liquids, electrical contacts, propulsion motor, errors in fueling, or if maintenance has not been performed as required. Once again, it is important that the crew behave correctly and that the boat is kept in order to avoid serious damage to it and to persons. Easily flammable products must not be kept aboard.
-
Page 10: Technical Specifications 1
Maximum recommended load (including weight of the max engine(s), passengers and cargo onboard, but excluding 1565 1565 the mass of the contents of fixed fuel and water tanks when full) Loaded displacement mass (LDC) 3020 3020 — 10 — "BRIG" inflatable boats... - Page 11 E780 COMPLETE SETS. Rigid inflatable boat model E780 has two complete sets: E780 and E780N OverNight. In the enlarged cabin E780N OverNight two people can sleep lying down freely. Pilot seat E780N OverNight has an extra rear soft seat for two people. Cabin E780N OverNight has a closed space for a biotoilet.(see fig.D) More details of complete set for E780 and E780N you can see in the table below.
- Page 12 Driver seat with extra rear soft seats Polyester arch with navigation lights Stern soft seat with backrest Front step-plate Fuel system with fuel tank 340 litres Drain system with automatic bilge pumps Anchor with electrical windlass — 12 — "BRIG" inflatable boats...
- Page 13 E 7 8 0 E780N Shower kit : Water tank (45 litres) Shower handset Shower pump Removable sundeck and table Soft cushions of the cabin Front locker removable cushion Rear platforms Foldable stainless steel ladder Auxiliary motor bracket Ski mast Overall cover Cover for steering console and seat Collapsible sun-top...
- Page 14 1 9 2 1 — 14 — "BRIG" inflatable boats...
-
Page 15: Boat Design 1
BOAT DESIGN. The boat series "EAGLE" E780 consists of the next main components (Fig. D1): - polyester hull (1); - reinforced buoyancy tube (2); - steering console (16); - composed driver seat/bolster (17); - polyester arc (21). DESCRIPTION: 1 — Polyester hull. 2 —... -
Page 16: Polyester Hull 1
— inspection hatch (13); — mast for towing skier (14); — box with cap for shower handset (15); — foldable stainless steel ladder (25, Fig. D1); — lifter of stern compartment door seat (20). — 16 — "BRIG" inflatable boats... -
Page 17: Reinforced Buoyancy Tube 1
There is also three-position battery disconnector located in the stern compartment. The fore part of the cockpit may be simply converted into the sundeck by means of false deck and soft cushions. REINFORCED BUOYANCY TUBE. The boat buoyancy tube has U-shaped form. The tube is separated by means of inner elastic partitions into five chambers of a similar volume, each being provided with an air fill valve. -
Page 18: Polyester Arc 1
— console recess with glass cap (7); — two stainless steel bearings for feet (8); — stainless steel handrail (9); — electric horn (on the right side of the console). Console equipment (Fig. D5): — 18 — "BRIG" inflatable boats... -
Page 19: Steering Console 1
—hydraulic steering system; — steering wheel (1); — fuel level clock (2); — speedometer (3); — additional equipment (4) (tachometer or multi-purpose meter, trimmer, voltmeter, clock); — socket 12V with fuse (5). — electrical circuit breaker (for electrical windlass) (6) (can be installed inside of the console). -
Page 20: Fuel System 2
Do not modify fuel system. Any modification, repair and planned maintenance of the fuel system may be made by authorized representative specialists only. Check that there are no leaks in the fuel systems Do not smoke when refueling. Stop the engine and switch off any electric equipments before refueling. — 20 — "BRIG" inflatable boats... -
Page 21: Shower System 2
SHOWER SYSTEM. Shower system includes the next components (Fig. D7): — water tank 45L (12gal) (1); — neck for water fill (2); — shower pump (3); — box for shower handset (4); — shower handset with push button control and shower hose (5); —... -
Page 22: Drain System 2
Before navigation check the drain sockets.DRAIN PLUG (8) (Fig.D8) MUST BE TIGHTLY CLOSED WHEN BOAT ON WATER. Never locate heavy objects on the drain hoses. It will be cause of bucking, distortions and damages. — 22 — "BRIG" inflatable boats... -
Page 23: Anchor System 2
ANCHOR SYSTEM. Anchor system ( if included to the complete set ) is located inside the bow anchor locker (Fig. D9). Anchor system includes the next components: — stemhead roller (1); — electrical anchor windlass (2); — clutch nut (3) —... -
Page 24: How To Operate With Anchor System 2
7.Continue to stow the anchor, until it will be fixed on a stemhead roller. 8.Switch off windlass circuit breaker (6)(Fig. D5) and then main battery disconnector. 9.Hook safety pin (7)(Fig. D9) to chain. Close the bow anchor hatch. — 24 — "BRIG" inflatable boats... - Page 25 ANCHOR CORRECT POSITION. ANCHOR NOT CORRECT POSITION. CONTINUE TO STOW THE ANCHOR. RESTART TO STOW THE ANCHOR. CHECK, THAT THE ANCHOR HAVE OCCUPIED CORRECT POSITION AND ONLY AFTER THAT CONTINUE TO STOW THE ANCHOR. Safety pin must always been hooked to the chain when the windlass is not in use. Do not use the windlass for different purposes it was designed for.
- Page 26 WIRING DIAGRAM E780. — 26 — "BRIG" inflatable boats...
- Page 27 DESCRIPTION: 1 — Battery (2 pcs.) (is not included to the complete set). 1 6 — Switch with automatic circuit breaker — anchor light (white). 2 — Three-position battery disconnector. 1 7 — Windlass circuit breaker. 3 — Outboard motor (is not included to the complete set). 1 8 —...
-
Page 28: Wiring Diagram
— 28 — "BRIG" inflatable boats... -
Page 29: How To Install Doors To The Steering Console 2
HOW TO INSTALL DOORS INTO THE STEERING CONSOLE . — please, insert a door frame with doors into a doorway in the steering console body (Fig. A2); — fix the door frame with the help of screws, nuts and washers from the door frame complete set. To avoid the water penetration into the console inner layers please tight all the holes/ free space with any water-resistant filler. -
Page 30: How To Install Polyester Arc 3
The polyester arc is designed to withstand the stresses of navigation and act as a support for the lights and horn. Do not use it inappropriately to rest your weight on it. Do not begin navigation without checking that the bolts of the polyester arc are tightened correctly. — 30 — "BRIG" inflatable boats... -
Page 31: Mounting Of The Composed Driver Seat/Bolster 3
MOUNTING OF COMPOSED DRIVER SEAT/BOLSTER. bolt M8 In order to install composed driver seat/bolster, please perform arrester washer the next operations (Fig. A6): washer — open the hatch on the back side of the seat; — align the holes in the bottom of the seat with the thread bushings in the deck and fix the seat with the help of bolts M8 and washers from the complete set of the composed driver seat/bolster;... -
Page 32: How To Install Stern Platforms 3
(Fig. A8a). Fix stern platforms with the help of bolts M8, nuts M8, washers 8 (Fig. A8b). To avoid the water penetration into the hull, use water-resistant filler for filling all the holes/free space. — 32 — "BRIG" inflatable boats... -
Page 33: How To Install Sundeck 3
HOW TO INSTALL SUNDECK. Sundeck set includes two false deck boards and two soft cushions. One of the boards (the small one) may be used as an upper part of the demountable table. In order to install the sundeck (Fig. A8), please do the next: —Insert the bigger board of the false deck into the special groove between the front seat of the steering console and the console base part (Fig. -
Page 34: Care & Maintenance Of Your Sunbrella® Fabric
Care & Maintenance of your Sunbrella® Fabric If soft seats and cushions of your BRIG boat are made from Sunbrella® Protection fabric, please read this instruction for the proper care of fabric. 303 High Tech Fabric Guard restores your fabric’s original Sunbrella®... -
Page 35: How To Install A Table 3
HOW TO INSTALL A TABLE. There are two special places in the fore and rear parts of the deck, The speed of the boat with installed the intended for mounting the table. In order to install the table, please perform the next operations (Fig. A10): table can not exceed 7 km/h (4 knots) —... - Page 36 Board air chambers are hermetical if they keep own form during 8 hours. In this case: – primary pressure has to be nominal; – input valves openings have to be tightly closed by caps. — 36 — "BRIG" inflatable boats...
-
Page 37: Boat Transportation By Trailer 3
BOAT TRANSPORTATION BY TRAILER. Points of support Installed on a trailer (or on kell-blocks for storage) the boat should been laying on all surface of the Main loading area (keel line) (see Fig. T1). It is possible to install the boat on four reference points as minimum. -
Page 38: Maintenance 3
0°C, it must be kept at a temperature above +15°C at least for 1 hour before to be unpacked and unfolded. For small repair boat tube use the coated fabric and glue set from the complete set. — 38 — "BRIG" inflatable boats... -
Page 39: Operating Regulations 3
OPERATING REGULATIONS. Dear ownwr, We thank your for your purchase and do hope that you will have a great fun of it. However, to make your joy and pleasure complete, we would request you to read carefully and observe the directions and recommendations specified below. IT IS STRICTLY FORBIDDEN to handle the boat in the state of intoxication and without individual rescue means being used (life-saving belts, jackets, etc.) IT IS FORBIDDEN to use an outboard motor of power exceeding the maximum... - Page 40 When sailing with an outboard engine the steersman should shift his body forward in the course of acceleration to prevent the boat forebody from raising under the force of upthrust waves. — 40 — "BRIG" inflatable boats...
- Page 41 Despite the strong shell of the boat we recommend carefully handle and operate with sharp and pricking objects which you have on board . It concerns, for example, a knife blade, fish-hook point, etc. Approaching to rocky shores, shoals, moles, etc. , please be careful to avoid damages of your boat. It is strictly prohibited to drag the boat across rough surfaces (shingle, rocks, concrete, etc.).
- Page 42 (batteries, fuel tank, engine) overboard to ensure additional floatability. Handling under power 40 knotes (74 km/h) Manoeuvrability above is limited. Sudden turn may cause loss of control. Reduce speed before sharp turn, in either direction. — 42 — "BRIG" inflatable boats...
- Page 43 220 kW (300 HP) Maximum propulsion power rating for the boat Do not operate your boat with an engine of rated power larger than that stated on the builder's plate in the boat. Do not operate this craft at negative propulsion unit trim settings (bow down) at high speed. Craft may lean over on side.
- Page 44 If you are in the water, and the ladder is folded, you can lay out it and return onboard. The ladder can be fixed with Velcro. Just unclip it. Be careful - the rotating propeller on the engine — 44 — "BRIG" inflatable boats...
- Page 45 — 45 — EAGLE E780 - 2018 236A.01...
- Page 46 Stamp and signature 2.Electric system Comments: Stamp and signature Comments: 3.Drain system. Stamp and signature Comments: Stamp and signature 4.Bilge pump(s) Comments: 5.Shower kit Stamp and signature Stamp and signature Comments: 6.Electrical anchor system — 46 — "BRIG" inflatable boats...
- Page 47 Stamp and signature Comments: 7.Steering system Stamp and signature Comments: 8.Engine power system 9.Engine installation, test Stamp and signature Comments: and completion of plantsand fittings done by. Comments: Comments: — 47 — EAGLE E780 - 2018 236A.01...
- Page 48 MODEL E780 SERIAL No. UA-QRK Date of manufacture Quality inspection stamp — 48 — "BRIG" inflatable boats...
