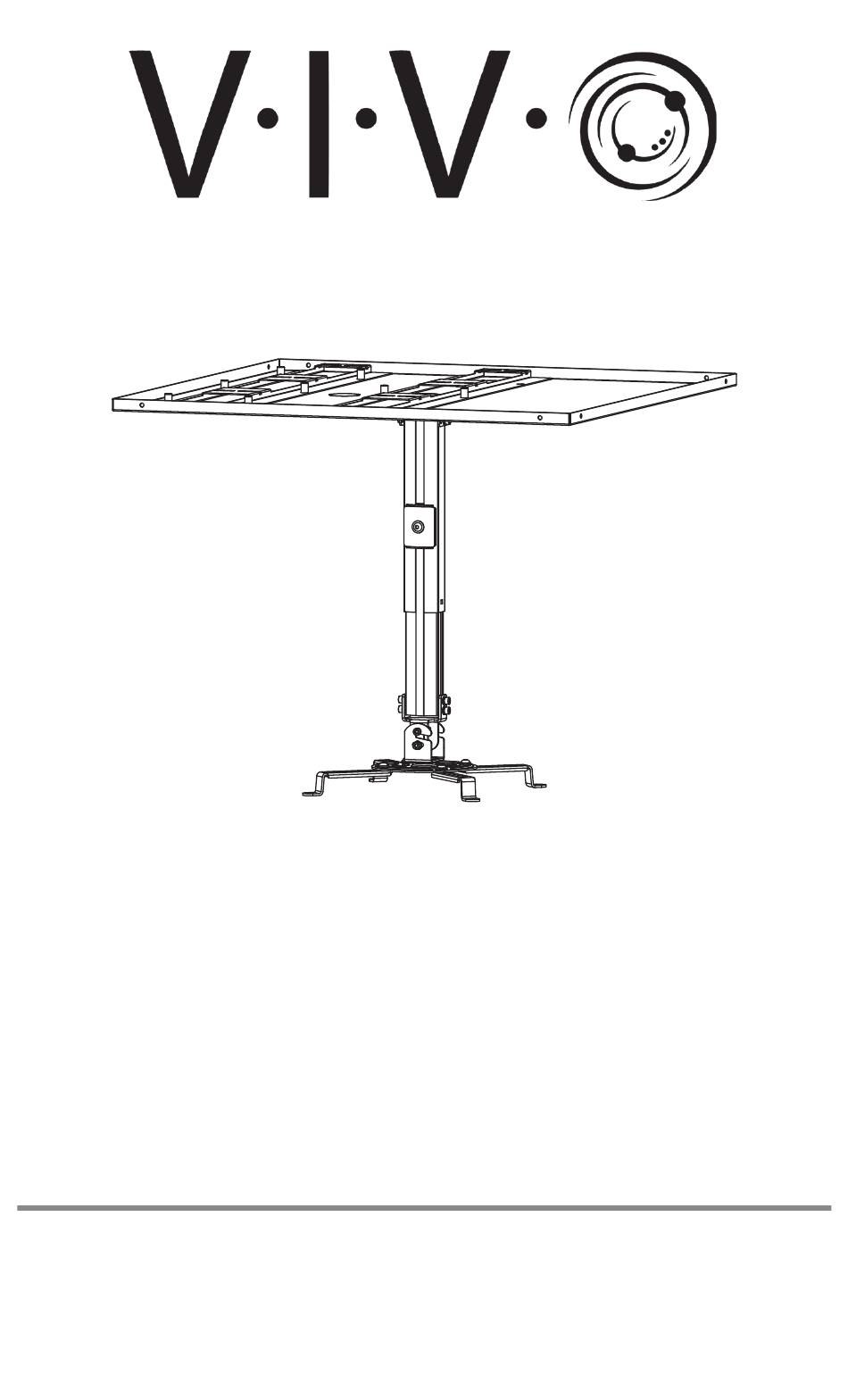

- Page 1 Exteneded Universal Drop Ceiling Projector Mount MOUNT-VP08DP Assembly Manual...
- Page 2 Better Products for a Better Workspace Experience We are dedicated to creating high-end ergonomic solutions for the office with top of the industry support. Explore Endless Workspace Solutions www.vivo-us.com...
- Page 3 If you do not understand these directions, or if you have any doubts about the safety of the installation, please contact our product support team at 309-278-5303 or help@vivo-us.com for further assistance. Check carefully to make sure there are no missing or defective parts. Failure to report missing parts within 30 days may result in denial of free replacement.
- Page 4 Package Contents A (x1) B (x1) C (x1) Mount Tilt Bracket Mounting Bracket D (x1) E (x2) F (x1) Ceiling Plate Clip Security Cable Included Hardware & Tools S-G (x2) S-A (x2) S-B (x2) S-C (x6) S-D (x6) S-E (x6) S-F (x2) Threaded M6x18mm...
-
Page 5: Assembly Steps
Assembly Steps *Optional* Direct Ceiling Installation Wood Joist Mounting: Proceed to Page 14 Concrete/Brick Mounting: Proceed to Page 15 STEP 1 Remove the plug from Ceiling Plate (D). STEP 2 Insert the T Ends of Security Cable (F) through two of the slots on Ceiling Plate (D) as shown, spreading them apart so that the weight is distributed as much as possible. - Page 6 STEP 2 - Cont’d Place the Ceiling Plate (D) into the ceiling grid. Insert the end of Security Cable (F) through the small side hole on Cable Lock (F1) in the direction of the arrow. Wrap the Security Cable (F) around a beam or other support and feed it back through the center hole in Cable Lock (F1).
- Page 7 STEP 3 Option A: Above Ceiling Cable Management If cables are located above the ceiling, route cables through the large opening in Mount Option B: Below Ceiling Cable Management If cables are located below the ceiling, route the cables through the side of Mount...
- Page 8 STEP 4 Slide the Clips (E) over the T-Bar to hold down the Ceiling Plate (D). STEP 5 (S-A) (S-B) Attach the Mount to the Ceiling Plate using M6x18mm Screws with M6 Washers (T-B) tighten using a 5mm Allen Wrench...
- Page 9 STEP 6 Secure Bracket (B) to Mount (A) using Threaded Plate (S-G), Plastic Spacers (S-F), M5x12mm Screws (S-C), Small M5 Washers (S-D), Plastic M5 Washers (S-E), and 4mm Allen Wrench (T-A).
- Page 10 STEP 7 Loosen the four screws on the Mounting Bracket (C) using 4mm Allen Wrench (T-A) and unfold the Arms (C1). 4 Hole Mounting Patterns Align arms on Mounting Bracket (C) with mounting holes in projector and secure to projector using Screws (M-A through M-D) and Washers (M-E through M-H) most appropriate for your projector.
- Page 11 3 Hole Mounting Patterns If you projector only has 3 mounting holes, use 4mm Allen Wrench (T-A) to remove one of the Arms (C1) from the Mounting Bracket (C). Align arms on Mounting Bracket (C) with mounting holes in projector and secure to projector using Screws (M-A through M-D) and Washers (M-E through M-H) most appropriate for your projector.
- Page 12 STEP 8 Hook the projector onto the Tilt Bracket (B) on the outside of the Oval Washers. Oval Washer Secure using M5x12mm Screws (S-C) with M5 Plastic Washers (S-E) on the inside and M5 Washers (S-D) on the outside. Tighten using 4mm Allen Wrench (T-A).
- Page 13 STEP 9 Adjusting Height & Tilt Forward Tilt Side to Side Tilt 1. Height Adjustment 2. Tilt Adjustment Use 4mm Allen Wrench (T-A) to Use 4mm Allen Wrench (T-A) to loosen joint to loosen joint to adjust height. adjust tilt angle. Tighten joint to set. Tighten joint to set.
- Page 14 * Optional * Wood Joist Mounting Use top plate of Mount (A) to mark mounting holes on ceiling. Remove mount and pre-drill holes following instructions below. Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 3/16” (4.5mm) Hole Depth: 2.2”...
- Page 15 * Optional * Concrete/Brick Mounting Use top plate of Mount (A) to mark mounting holes on ceiling. Remove mount and pre-drill holes following instructions below. Pre-Drilling Instructions Drill mounting holes using illustration shown Drill Bit: 3/8” (10mm) Hole Depth: 2.4” (60mm) Use Anchors (W-B), ST6.3x55mm Screws (W-A), and M6 Mounting Washers (W-C) to attach Mount (A) as shown in diagram.
- Page 16 Need Help? We’re Here For You Monday-Friday from 7am-7pm CST Saturday 8am-4pm CST Email Us Chat with Live Agent Give Us a Call help@vivo-us.com www.vivo-us.com 309-278-5303 ext. 1 FOR MORE GREAT VIVO PRODUCTS, CHECK OUT OUR WEBSITE AT: WWW.VIVO-US.COM VIVO-us @vivo_us @VIVOus VIVO...
