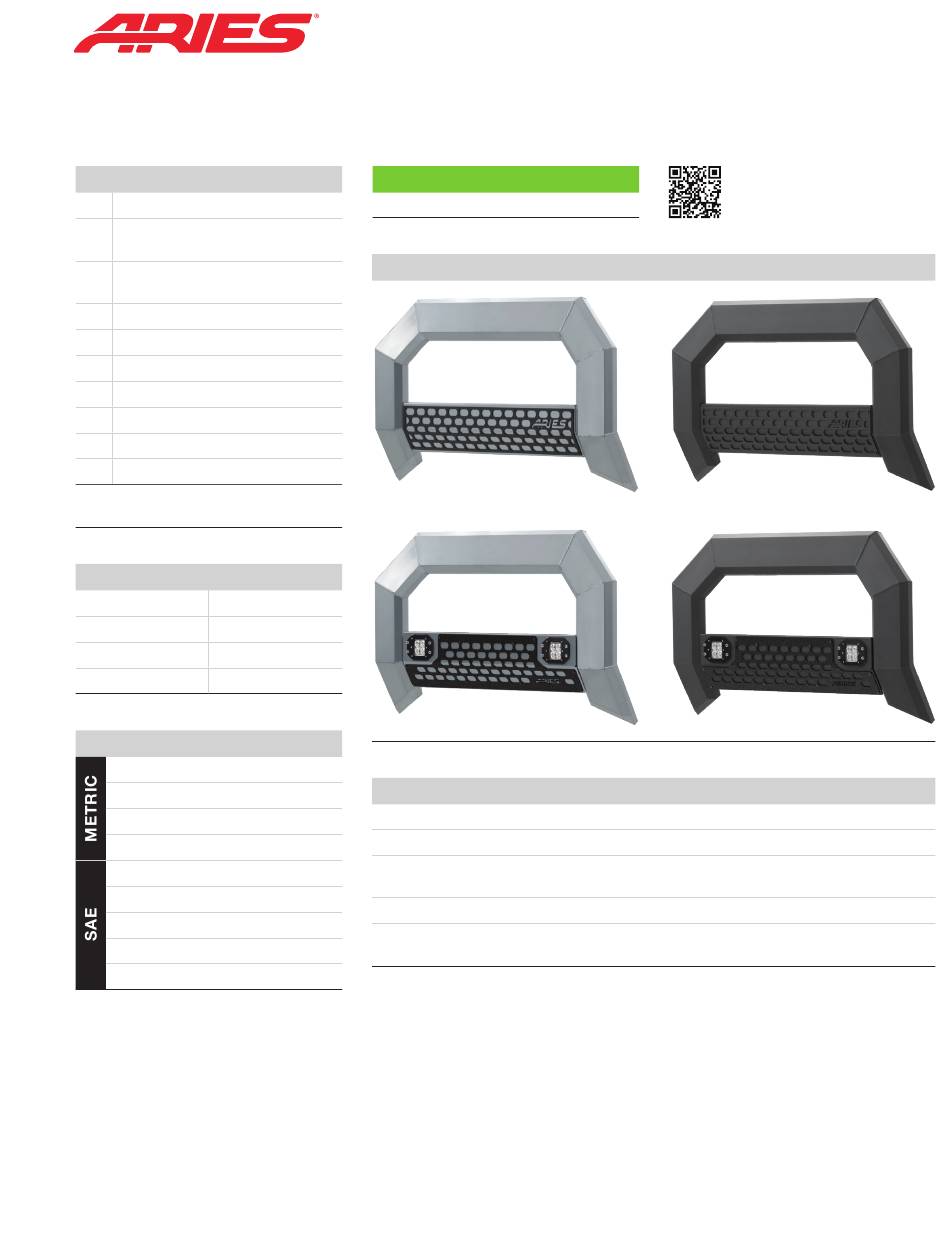

INSTALLATION MANUAL
Parts List
1
Bull bar
2
Driver / left
mounting bracket
2
Passenger / right
mounting bracket
6
Hex bolt, M8
6
Flat washer, M8
6
Nylock nut, M8
4
Hex bolt, M10
8
Flat washer, M10
4
Nylock nut, M10
1*
LED wiring harness*
* Wiring harness only included
with LED equipped models
Tools Required
Ratchet
Socket, 13mm
Extension
Socket, 16mm
Level
Socket, 18mm
Wrench, 17mm
Torque Specifications
M6 bolt
3 ft.-lbs.
M8 bolt
7 ft.-lbs.
M10 bolt
16 ft.-lbs.
M12 bolt
28 ft.-lbs.
1/4" bolt
3 ft.-lbs.
5/16" bolt
7 ft.-lbs.
3/8" bolt
16 ft.-lbs.
7/16" bolt
20 ft.-lbs.
1/2" bolt
28 ft.-lbs.
Level of Difficulty
Easy

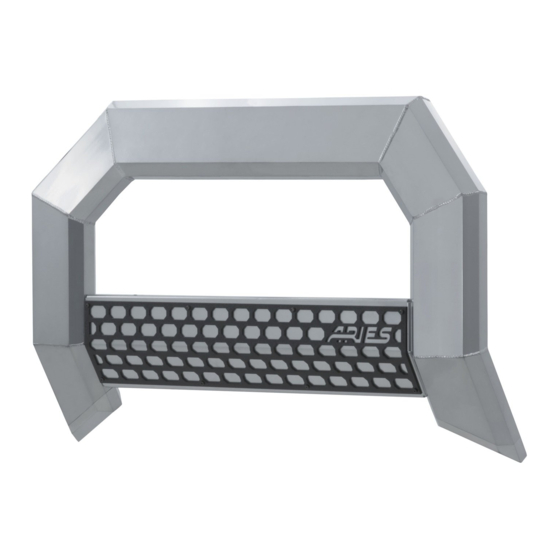

Product Image
2153002
2153102
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For chrome powder coat, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • RC • 877.287.8634 • NEED ASSISTANCE?
Scan
for helpful
install tips
2163002
2163102
• ARIESAUTOMOTIVE.COM
Advertisement
Table of Contents
Related Manuals for Aries 2153002
Summary of Contents for Aries 2153002
- Page 1 Hex bolt, M8 Flat washer, M8 Nylock nut, M8 Hex bolt, M10 Flat washer, M10 Nylock nut, M10 LED wiring harness* 2153002 2163002 * Wiring harness only included with LED equipped models Tools Required Ratchet Socket, 13mm Extension...
- Page 2 Step 1 Starting on the driver side, remove the two factory hex bolts. Step 2 Secure the driver-side mounting bracket to the vehicle using the previously removed hex bolts. Snug the hardware, but do not fully tighten. Step 3 Repeat steps 1 and 2 to attach the passenger-side mounting bracket.
- Page 3 Step 5 With help, lift the bull bar into place and align the mounting tabs on the inside of the mounting brackets. Step 6 Insert a M10 hex bolt with flat washer on the outside of the bracket and a M10 flat washer and nylock nut on the inside.
- Page 4 Test the lights to ensure proper function. Step 10 Congratulations on the installation of your new ARIES AdvantEDGE bull bar. ™ With the bull bar installed, periodic inspections should be performed to ensure all mounting hardware remains tight.
