Aries 2165102 Installation Manual

INSTALLATION MANUAL
Level of Difficulty
Easy

Parts List

1 Bull bar
1 Driver / left mounting bracket
1 Passenger / right mounting bracket
1 Driver / left side brace bracket
1 Passenger / right side brace bracket
1 Driver / left side adapter bracket
1 Passenger / right side adapter bracket
2 Bolt plate, M12
2 Hex bolt, M12
6 Flat washer, M12
4 Lock washer, M12
4 Hex nut, M12
4 Hex bolt, M10
4 Nylock nut, M10
8 Flat washer, M10
4 Hex nut, M8
4 Flat washer, M8
4 Nylock nut, M8
2 Hex bolt, M14
2 Lock washer, M14
2 Flat washer, M14
1 LED wiring harness*
* Wiring harness only included
with LED equipped models

Tools Required

Ratchet Box wrench set
Socket set Level
Socket extension --

Torque Specifications

M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

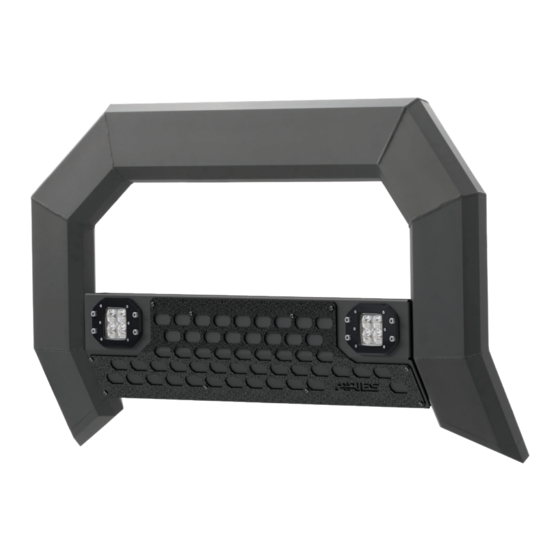

Product Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.

Maintenance

To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.

Product Registration and Warranty

CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
• NEED ASSISTANCE? • 877.287.8634 • 2165102-INS-RA • PAGE 1
