Aries 2157002 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Moderate

Parts List

1 TrailCrusher bumper
™
1 Driver / left side bracket
1 Passenger / right side bracket
1 License plate bracket
1 Bolt plate
8 Bolt retainer
6 Button head cap screw, M6
6 Lock nut, M6
10 Carriage bolt, M12
10 Flange nut, M12
2 Cable tie

Tools Required

Torque wrench Ratchet
Socket set Level
Wrench set Hex key set
Small screw driver --

Torque Specifications

M12 bolt 58 ft-lbs.
M14 bolt 93 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

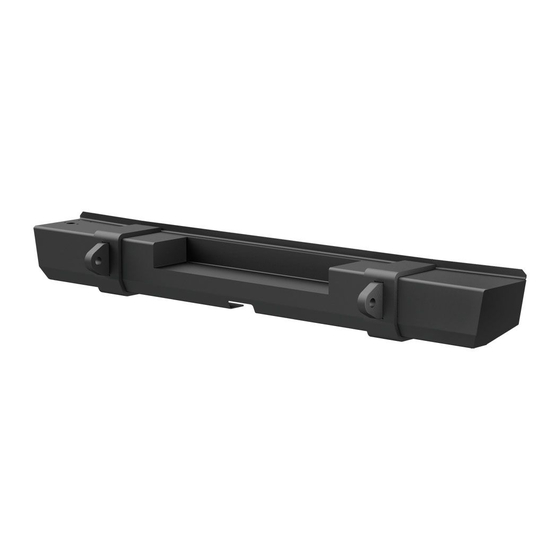

Product Photo
Brackets and Hardware

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.

Product Registration

CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
• NEED ASSISTANCE? • 877.287.8634
Driver / left
side bracket
Passenger / right
side bracket
• 2157002-INS-RA • PAGE 1
2157002
