INSTALLATION MANUAL
Level of Difficulty
Moderate
Parts List
1
Bull bar
1
Driver / left mounting bracket
1
Passenger / right mounting bracket
4
Hex bolt, M8
4
Flat washer, M8
4
Nylock nut, M8
4
Bolt plate, M12
4
Flat washer, M12
4
Nylock nut, M12
1*
LED wiring harness*
* Wiring harness only included
with LED equipped models
Tools Required
Ratchet
Extension
Level
Wrench set
Socket set
--
Torque Specifications
M8 bolt
7 ft-lbs.
M12 bolt
28 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

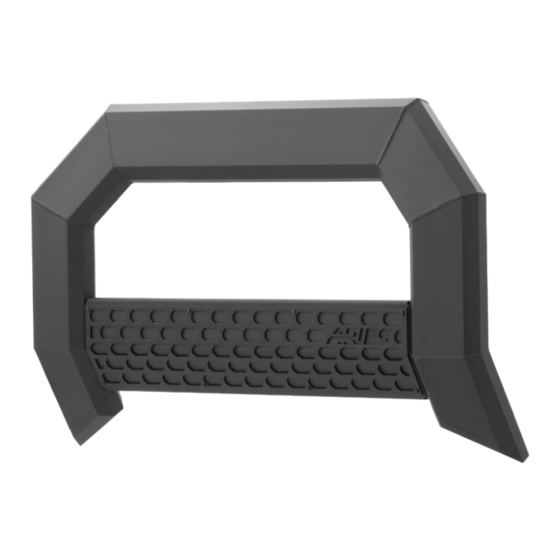

Product Photo
NOTICE
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To help prevent damage to the product or vehicle, refer to the specified
torque specifications when securing hardware during the installation process.
Maintenance
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Product Registration and Warranty
CURT Group stands behind our products with industry-leading warranties.
Provide feedback and help us to improve our products by registering your purchase at:
warranty.curtgroup.com/surveys
•
NEED ASSISTANCE?
•
877.287.8634
2164003
•
RA
•
PAGE 1
2164103
Advertisement
Table of Contents
Related Manuals for Aries 2164003
Summary of Contents for Aries 2164003
- Page 1 Bull bar Driver / left mounting bracket Passenger / right mounting bracket Hex bolt, M8 Flat washer, M8 Nylock nut, M8 Bolt plate, M12 2164003 2164103 Flat washer, M12 Nylock nut, M12 LED wiring harness* NOTICE * Wiring harness only included Before you begin installation, read all instructions thoroughly.
- Page 2 Step 1 For vehicles without tow hooks, skip to step 2. Remove and set aside the driver-side and passenger-side tow hooks. Step 2 Place the driver-side mounting bracket up to the vehicle and secure the bracket using the supplied M12 hardware. Snug the hardware, but do not fully tighten.
- Page 3 Test the lights to ensure proper function. Step 8 Congratulations on the installation of your new ARIES AdvantEDGE bull bar. With the bull bar installed, periodic inspections should be performed to ensure all mounting hardware remains tight.
