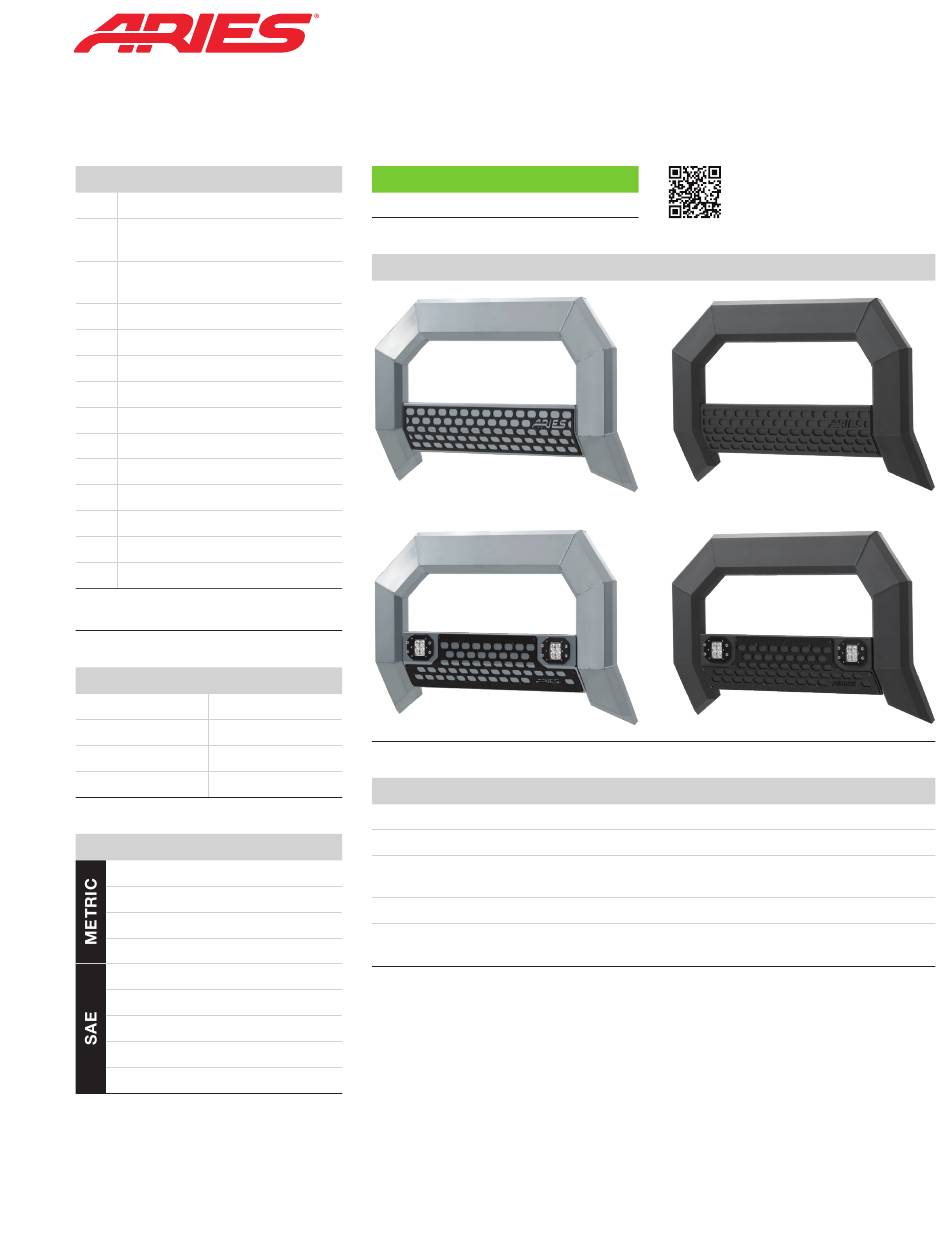

INSTALLATION MANUAL
Parts List
1
Bull bar
2
Driver / left
mounting bracket
2
Passenger / right
mounting bracket
4
Hex bolt, M8
4
Flat washer, M8
4
Nylock nut, M8
2
Bolt plate, double, M10
2
Bolt plate, single, M10
4
Hex bolt, M10
14
Flat washer, M10
6
Lock washer, M10
6
Hex nut, M10
4
Nylock nut, M10
1*
LED wiring harness*
* Wiring harness only included
with LED equipped models
Tools Required
Ratchet
Socket, 13mm
Wrench, 17mm
Socket, 16mm
Wrench, 18mm
Socket, 18mm
Level
Extension
Torque Specifications
M6 bolt
3 ft.-lbs.
M8 bolt
7 ft.-lbs.
M10 bolt
16 ft.-lbs.
M12 bolt
28 ft.-lbs.
1/4" bolt
3 ft.-lbs.
5/16" bolt
7 ft.-lbs.
3/8" bolt
16 ft.-lbs.
7/16" bolt
20 ft.-lbs.
1/2" bolt
28 ft.-lbs.
Level of Difficulty
Easy

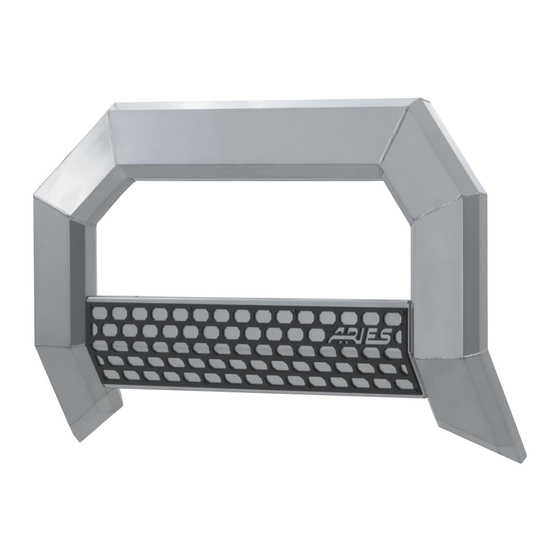

Product Image
2154000
2154100
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For chrome powder coat, polish may be used to clear small scratches
and scuffs on the finish. Mild soap may be used also to clean the product.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • RD • 877.287.8634 • NEED ASSISTANCE?
Scan
for helpful
install tips
2164000
2164100
• ARIESAUTOMOTIVE.COM
Advertisement
Table of Contents
Related Manuals for Aries 2154000
Summary of Contents for Aries 2154000
- Page 1 Hex bolt, M8 Flat washer, M8 Nylock nut, M8 Bolt plate, double, M10 Bolt plate, single, M10 Hex bolt, M10 Flat washer, M10 2154000 2164000 Lock washer, M10 Hex nut, M10 Nylock nut, M10 LED wiring harness* * Wiring harness only included...
- Page 2 Step 1A - Vehicles without tow hooks For vehicles with tow hooks, skip to Step 2A. Locate the two mounting points on the front end of the vehicle. Locate the driver-side mounting point. Step 1B - Vehicles without tow hooks Place the mounting bracket up to the vehicle.
- Page 3 Step 2A - Vehicles with tow hooks For vehicles with tow hooks, locate the driver-side factory tow hook on the front of the vehicle. Step 2B - Vehicles with tow hooks Loosen the front mounting bolt of the tow hook and remove the rear bolt. Step 2C - Vehicles with tow hooks Place the mounting bracket onto the vehicle and slide it over the front bolt...
- Page 4 Step 4 Place the driver-side bracket over the bolts and secure the bracket to the bull bar using two M8 flat washers and two M8 nylock nuts. Snug the hardware, but do not fully tighten. Repeat this step for the passenger-side bracket.
- Page 5 Test the lights to ensure proper function. Step 9 Congratulations on the installation of your new ARIES AdvantEDGE bull bar. ™ With the bull bar installed, periodic inspections should be performed to ensure all mounting hardware remains tight.
