Aries 2156001 Installation Manual

INSTALLATION MANUAL

Level of Difficulty

Moderate

Parts List

1 TrailCrusher bumper
™
4 Button-head cap screw,
1/2" - 13 x 3 1/2"
2 Button-head cap screw,
1/2" - 13 x 2"
6 Flat washer, 1/2"
6 Lock washer, 1/2"
4 Backup washer

Tools Required

Torque wrench Socket extension
Socket set Torx drive, T55
Hex drive, 5/16" Level

Torque Specifications

1/2" bolt 64 ft-lbs.
Use above torque setting unless otherwise noted
ARIESAUTOMOTIVE.COM

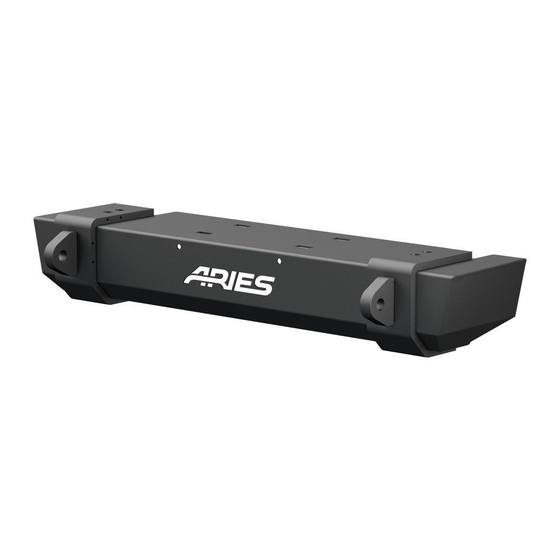

Product Photo

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
To protect the product, wax after installing. Regular waxing is recommended
to add a protective layer over the finish. Do not use any type of polish or wax
that may contain abrasives that could damage the finish.
For polished, gloss and other smooth finishes,
polish may be used to clear small scratches and scuffs on the finish.
Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive
cleaners, abrasive pads, wire brushes or other similar products that may damage the finish.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
• NEED ASSISTANCE? • 877.287.8634 • 2156001-INS-RC • PAGE 1
