INSTALLATION MANUAL
Parts List
1
Angular brush guard
8
Flat washer, M6
8
Lock washer, M6
Tools Required
Ball screwdriver, 5mm
Torque Specifications
M6 bolt
3 ft.-lbs.
M8 bolt
7 ft.-lbs.
M10 bolt
16 ft.-lbs.
M12 bolt
28 ft.-lbs.
1/4" bolt
3 ft.-lbs.
5/16" bolt
7 ft.-lbs.
3/8" bolt
16 ft.-lbs.
7/16" bolt
20 ft.-lbs.
1/2" bolt
28 ft.-lbs.
Level of Difficulty
Easy

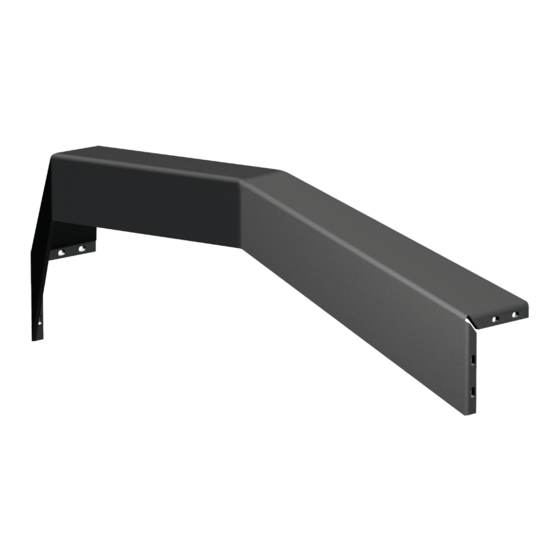

Product Image
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
For black finishes, mild soap may be used to clean the product.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
PAGE 1 • 2156050-INS-RA • 800.798.0813 • NEED ASSISTANCE?
2156050
Scan
for helpful
install tips
• ARIESAUTOMOTIVE.COM
Advertisement
Table of Contents
Related Manuals for Aries 2156050
Summary of Contents for Aries 2156050
- Page 1 For black finishes, mild soap may be used to clean the product. Refer to the table to the left when securing hardware during the installation process to help prevent damage to the product or vehicle. • ARIESAUTOMOTIVE.COM PAGE 1 • 2156050-INS-RA • 800.798.0813 • NEED ASSISTANCE?
- Page 2 Snug the hardware. Do not tighten Step 4 Make sure the angular brush guard is level and tighten all hardware. Congratulations on the installation of your new ARIES angular brush guard. ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2156050-INS-RA • PAGE 2...
