DS60 cable information
The primary and secondary nodes use the same cable type to connect to DS60 disk shelves.

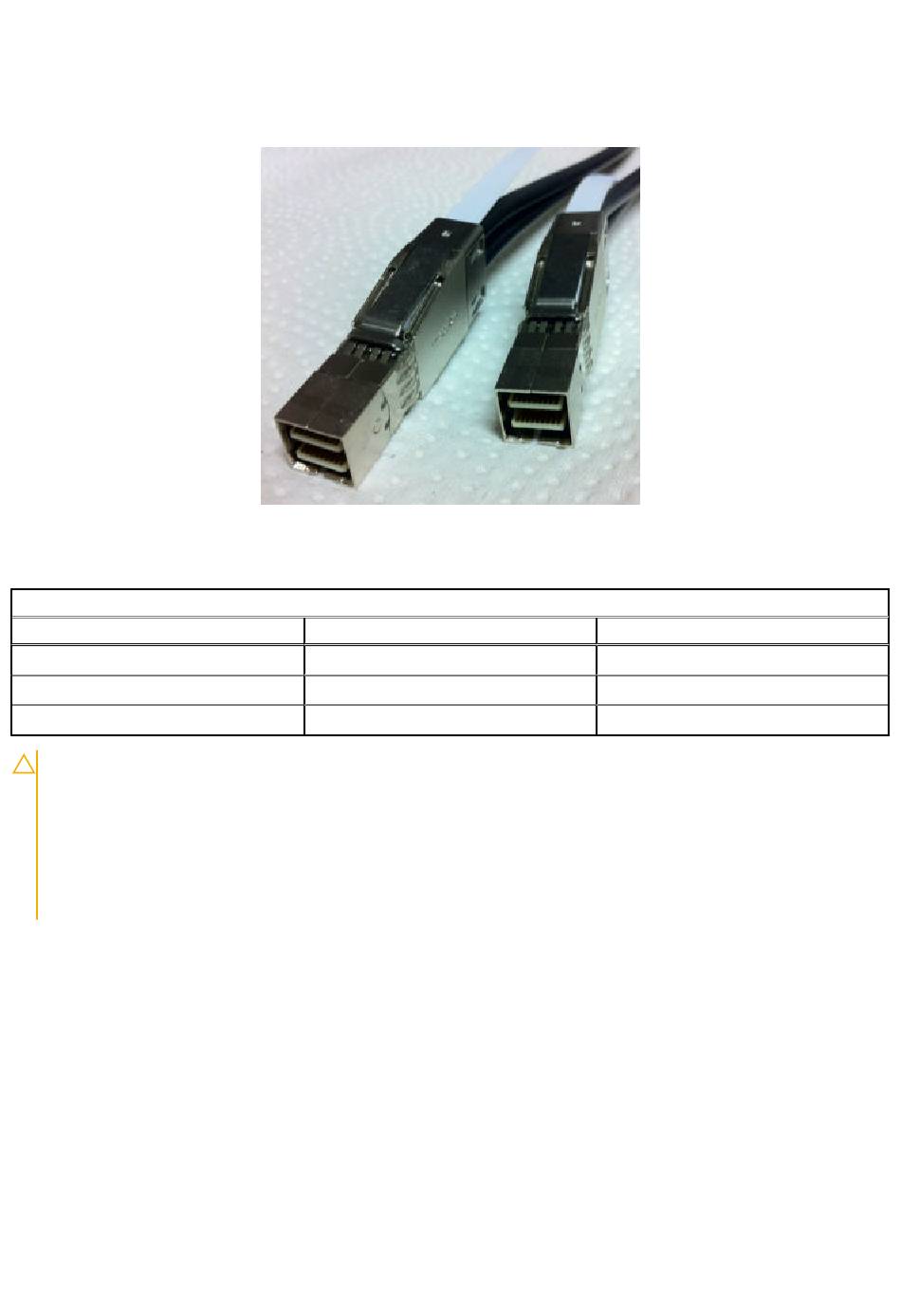

Figure 67. SAS I/O module to DS60 connector
Table 19. Cables for node 0 and node 1 to DS60 shelf loop
HD-mini-SAS connector on controller and enclosure
Cable model code
XC-DS60-SAS-3M
XC-DS60-SAS-4M
XC-DS60-SAS-5M
CAUTION:
Observe the following considerations when cabling new shelves:
● Work on one SAS loop at a time.
● Allow at least eight minutes between each cable removal or insertion on a SAS I/O module in the Data Domain
controller to allow the Data Domain system to apply required firmware updates and device mapping on the
DS60 shelf.
● Verify all SAS cables are fully seated at both ends.
● If possible, utilize available SAS I/O module connections to add new storage enclosures.
66
Connect Cables and Power On
Part number
038-004-380-01
038-000-212-00
038-000-214-00
Cable length
3 m (118 in)
4 m (158 in)
5 m (196 in)
