● Two bracket assemblies, one marked for the left side and one marked for the right side of the rack

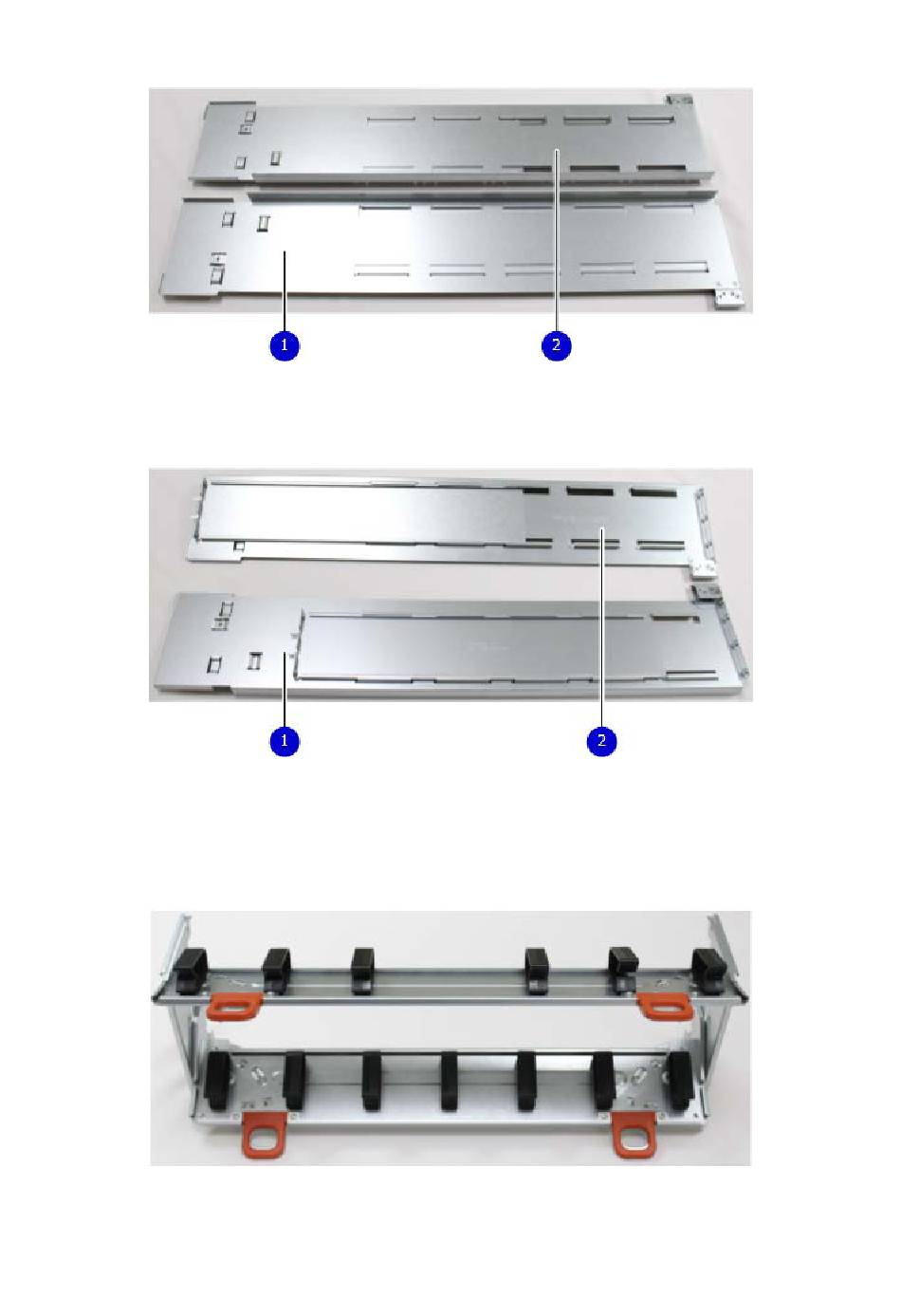

Figure 5. Rail bracket inside
1. Left inside bracket
2. Right inside bracket
Figure 6. Rail bracket outside
1. Left outside bracket
2. Right outside bracket
A cable management assembly (CMA), for organization of cables at the rear of the system, is already installed onto the DD9800
system on a Data Domain rack. For field installed systems, the CMA is shipped with the DD9800 system.
Figure 7. Cable management assembly (CMA)
14 Install the System in the Rack
