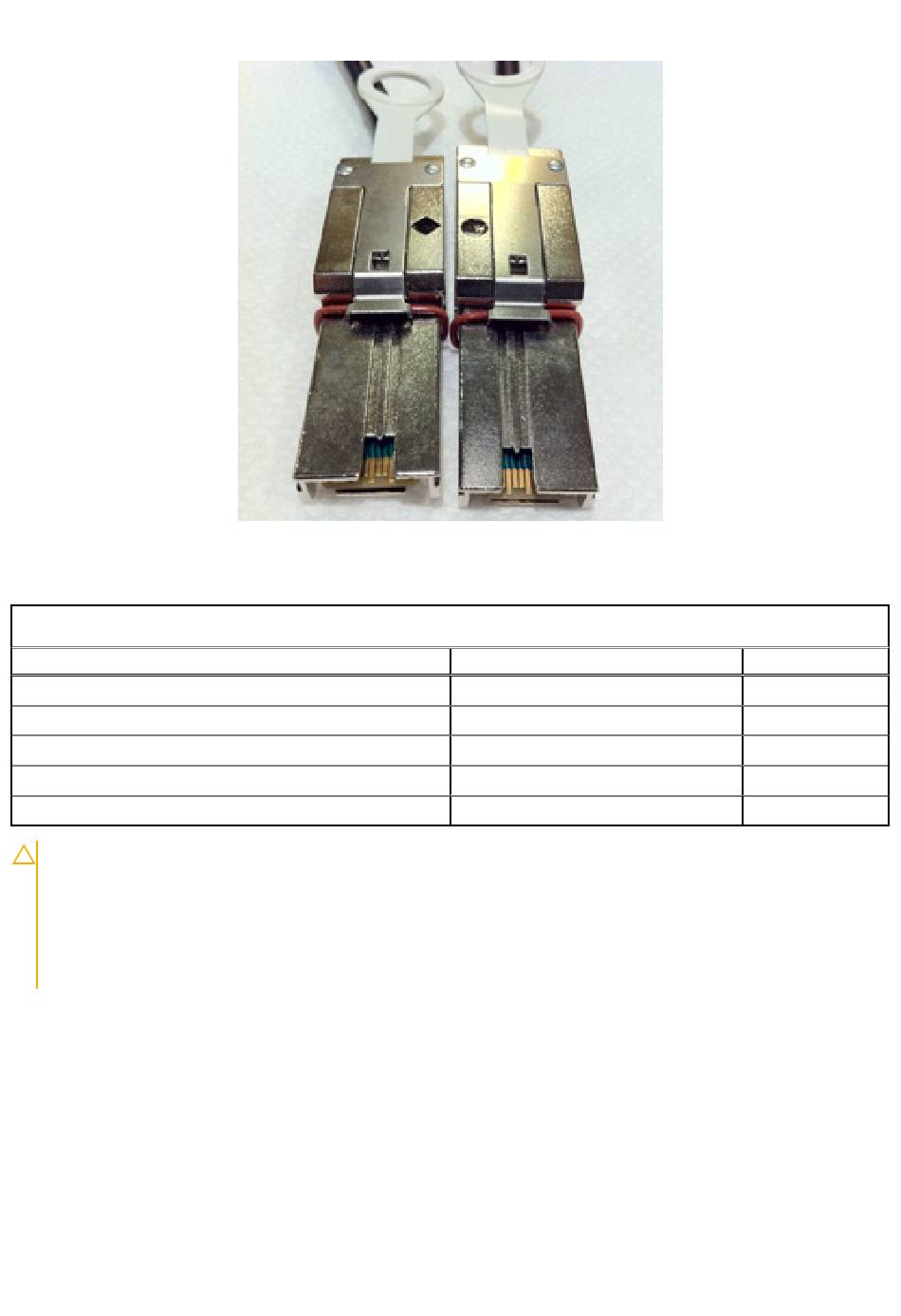

Figure 61. Cables for ES30 to ES30 connections
Table 10. ES30 to ES30 cable options
Mini-SAS cable, SFF-8088 connectors on both ends, one end keyed for host ports and the other keyed for
expansion ports
Cable model
X-SAS-MSMS1
X-SAS-MSMS2
X-SAS-MSMS3
X-SAS-MSMS4
X-SAS-MSMS5
CAUTION:
Observe the following considerations when cabling new shelves:
● Work on one SAS loop at a time.
● Allow at least two minutes between each cable removal or insertion on a SAS I/O module in the Data Domain
controller.
● Verify all SAS cables are fully seated at both ends.
● If possible, utilize available SAS I/O module connections to add new storage enclosures.
Part number
038-003-786
038-003-787
038-003-751
038-003-628
038-003-666
Connect Cables and Power On
Cable length
1 m (39 in.)
2 m (79 in.)
3 m (118 in.)
4 m (158 in.)
5 m (196 in.)
