Connecting the expansion shelves and the controllers

Multiple expansion shelves are connected together and to the controller with qualified SAS cables.
NOTE: You must save any extra SAS cables for future use.
The diagrams in the following sections show recommended cabling and component placement of a system and shelves in the
rack(s). The cables that are provided support the controller and shelves in the rack positions as shown in the diagrams.
● Refer to the diagrams in the
system.
● Refer to the diagrams in the
system.
For more information about specific shelf cabling rules and guidelines for different types of shelves, see:
● Data Domain ES30 and FS15 Expansion Shelf Hardware Guide
● Data Domain DS60 Expansion Shelf Hardware Guide

ES30 cable information

The cable end that connects to an ES30 from node 0 has a mini-SAS connector with a
The cable end that connects to an ES30 from node 1 has a mini-SAS connector with a
Cables between ES30s have mini-SAS connectors on both ends.

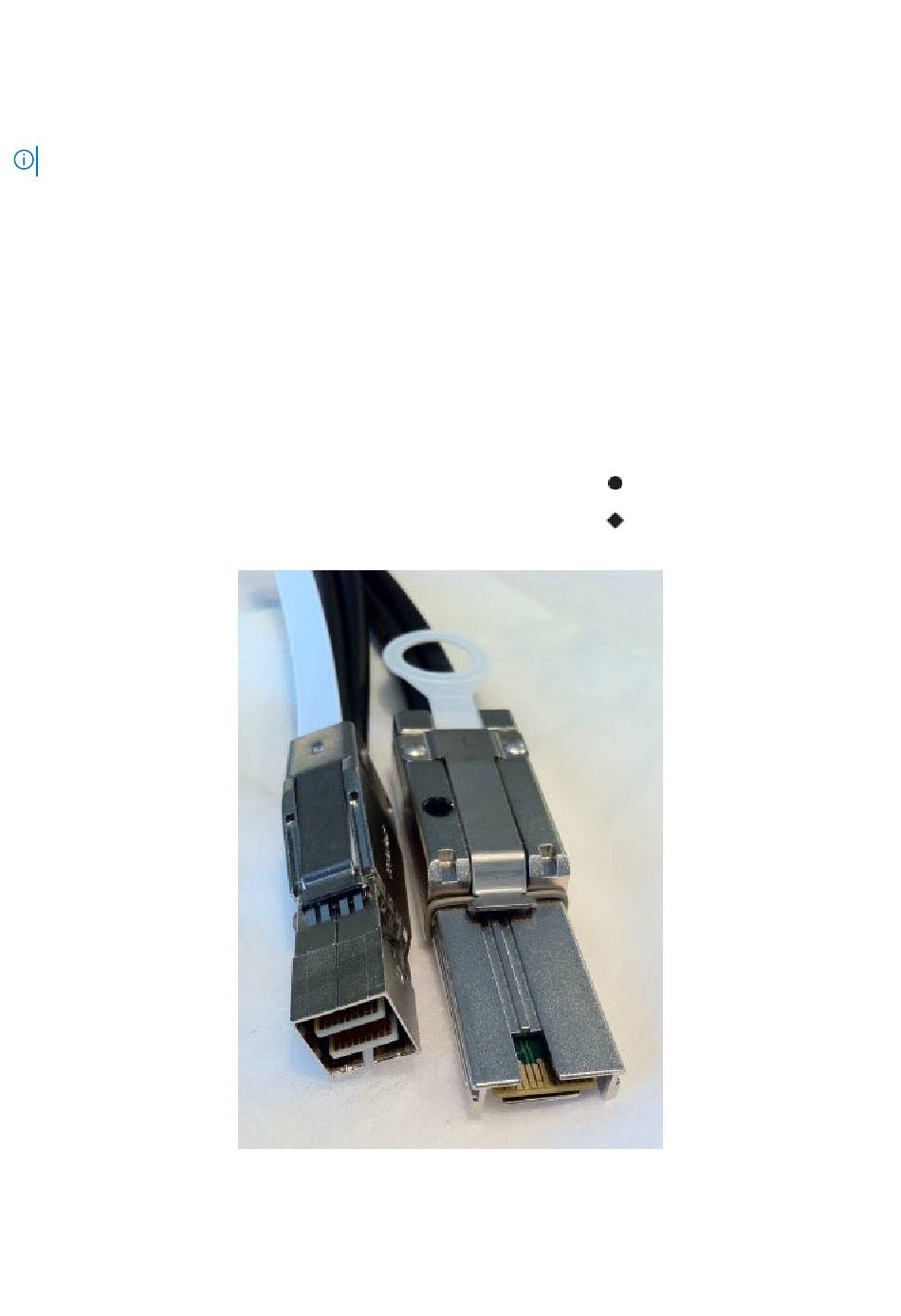

Figure 59. Node 0 SAS I/O module to ES30 host port connector
Connecting multiple ES30 shelves to the DD9800 system
Connecting multiple DS60 shelves to the DD9800 system
on page 56 to connect a DD9800
on page 67 to connect a DD9800
port.
port.
Connect Cables and Power On 53
