4. Move to the front of the rail and align the mounting slots with the mounting holes near the front of the rail.

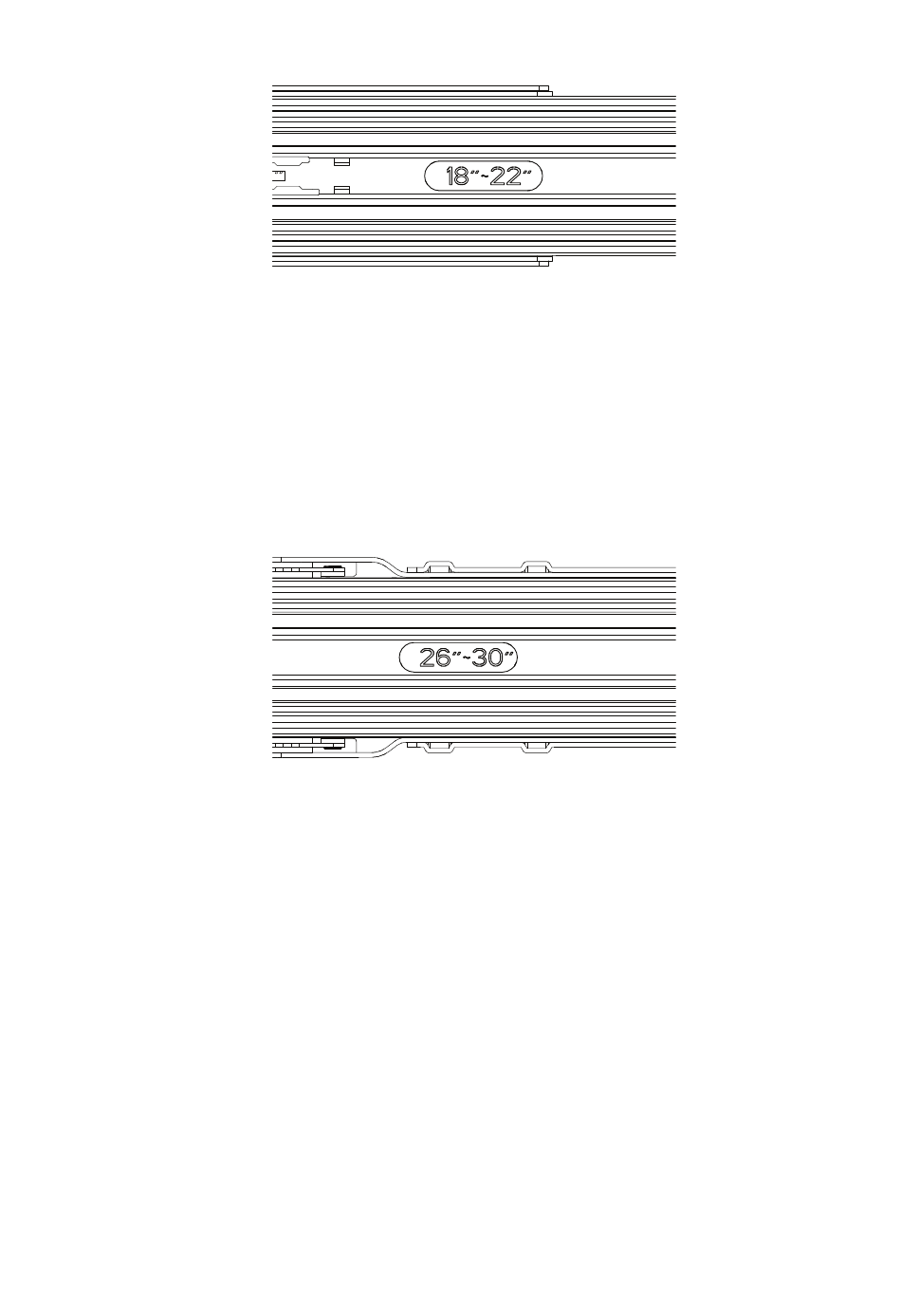

Figure 51. 18"-22" marking
5. Slide the inner rail mechanism to the front of the rail until the 18"-22" mark is visible. If the inner mechanism is locked,
depress the leaf spring and press the rail locking mechanism to free it.
6. Adjust the hardware to make sure the mounting holes are aligned with the mounting slots.
7. Secure the length adjustment bracket in place using both screws and nuts that were removed earlier.
8. Repeat for the other rail.
● To change the length of the rail to 26-30", do the following:
1. Orient one of the rails to identify the front of the rail so that the inside of the rail is visible with the spacing markings
visible.
2. Locate the most forward (closest to the front of the rail) screw and nut which hold the length adjustment bracket in
place.
3. Using a screwdriver and a nut driver (pliers or vise-grips will work as well), remove the forward-most screw and nut.
4. Slide the length adjustment bracket to the rear of the rail until it stops.
Figure 52. 26"-30" Marking
5. Slide the inner rail mechanism to the rear of the rail until the 26"-30" mark is visible. If the inner mechanism is locked,
depress the leaf spring to free it.
6. Adjust the hardware to make sure the mounting holes are aligned with the mounting slots.
7. Secure the length adjustment bracket in place using the screw and nut that were removed earlier.
8. Repeat for the other rail.
● To change the length of the rail to 30-34"" (longest setting) do the following:
1. Orient one of the rails to identify the front of the rail so that the inside of the rail is visible with the spacing markings
visible.
2. Locate the two screws and nuts which hold the length adjustment bracket in place.
3. Using a screwdriver and a nut driver (pliers or vise-grips will work as well), remove both screws and nuts. The length
adjustment bracket will be free of the rail.
4. Move the length adjustment bracket to the rear of the rail and align the mounting slots with the mounting holes near the
rear of the rail.
CL5501
CL5502
Install the Disk Shelves in the Rack
45
