Summary of Contents for Ursalink EM500-LGT
- Page 2 Please clarify your application environment before deployment, in case the device can function well. The device is not intended to be used as a reference sensor, and Ursalink will not should responsibility for any damage which may result from inaccurate readings.
-
Page 3: Table Of Contents
6.1.3 DIN Rail Mounting....................18 6.2 Sensor Installation.......................18 7. Payload Format..........................19 8.Sensor Management via Ursalink Cloud..................19 8.1 Ursalink Cloud Registration....................19 8.2 Add a Ursalink LoRaWAN Gateway..................20 8.3 Add EM500-LGT to Cloud....................21 Appendix............................22 Default LoRaWAN Parameters....................22 Default Uplink Channels......................22... -
Page 4: Overview

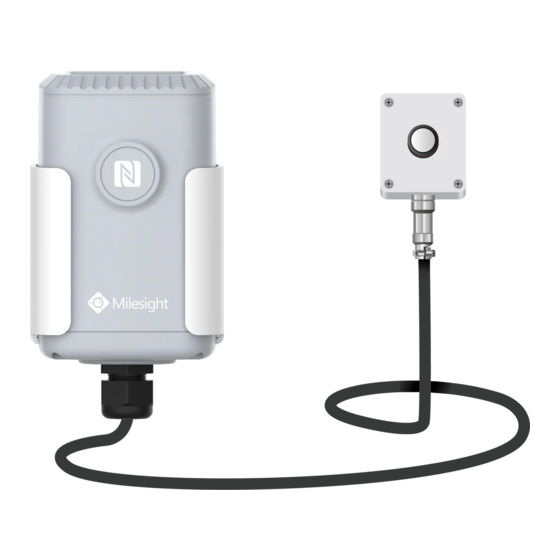

Sensor data are transmitted in real-time using standard LoRaWAN protocol. LoRaWAN enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Ursalink Cloud or thr ough the user's own Network Server. -
Page 5: Hardware Introduction
1 × Warranty Card 1 × Quick Guide (Include sensor) Screws Clamp 1 × DIN Rail (Optional) If any of the above items is missing or damaged, please contact your Ursalink sales representative. 2.2 Transceiver Overview Front View: ①LoRa Antenna (Internal) ②NFC Area... -
Page 6: Dimensions
EM500-LGT User Guide Back View: ④Battery (Internal) ⑤Wall Mounting Holes ⑥Pole Mounting Holes 2.3 Dimensions(mm) 3. Assembly and Preparation 3.1 Sensor Assembly Follow the steps below to connect light sensor cable to EM500 transceiver if they are separated. 1. Take off the mounting bracket, remove the cap, 2. -
Page 7: Insulating Sheet Disassembly
EM500-LGT User Guide 3. Pull out the motherboard, insert and lock 4. Put the motherboard back and restore the wires accordingly (see the label on the everything in its due position. motherboard or following picture). Pinouts: Color Description Black Blue... -
Page 8: Turn On/Off And Reset (Power Button)
EM500-LGT User Guide 4. Turn ON/OFF and Reset (Power Button) The LED indicator is inside the device. EM500-LGT can also be turned on/off and reset via Mobile APP or Toolbox. Function Action LED Indication Press and hold the button for more than Turn On Off →... - Page 9 EM500-LGT User Guide 3. When you perform one of the following operations, enter the password and attach the smartphone with NFC area to the device until the APP shows a successful prompt. Turn on/off the sensor Reset the sensor ...
-
Page 10: Template Configuration
EM500-LGT User Guide 5.1.2 Template Configuration Template settings are used for easy and quick device configuration in bulk. Note: Template function is allowed only for sensors with the same model and LoRa frequency band. 1. Go to “Template” page on the APP and save current settings as a template. -
Page 11: Configuration Via Pc
Make sure “Toolbox” is downloaded on your computer. Select one of the following methods to log in Toolbox. Type-C Connection 1. Connect the EM500-LGT to computer via type-C port. Type-C port is inside the transceiver of the EM500-LGT. 2. Select type as “General” and click password to log in Toolbox. (Default password: 123456) -
Page 12: Basic Configuration
EM500-LGT User Guide NFC Connection 1. Connect the NFC reader to computer, then attach the EM500-LGT to NFC area of the reader. 2. Select type as “NFC” and serial port as NFC reader port on Toolbox. 5.2.2 Basic Configuration 1. Click “Read” to read current data of the sensor. - Page 13 EM500-LGT User Guide 2. When you perform one of the following operations, enter the password and wait a few seconds until toolbox shows a successful prompt. (Password is not needed if you connect it via type-C port) Turn on/off the sensor ...
-
Page 14: Template And Reset
EM500-LGT User Guide 5.2.3 Template and Reset 5.2.3.1 Template Configuration Note: Template function is allowed only for sensors with the same model and LoRa frequency band. 1. Go to “Maintenance -> Template and Reset” page in Toolbox. 2. Click “Export” to save the current settings as a template. -
Page 15: Configuration Examples
EM500-LGT User Guide 5.3 Configuration Examples 5.3.1 LoRaWAN Channel Settings The configuration of LoRaWAN channel of EM500-LGT must match the LoRaWAN gateway’s. Refer Appendix to check default channel settings of EM500-LGT. Mobile APP Configuration: Open Toolbox APP and go to “Device ->Setting -> LoRaWAN Settings”to change the frequency and channels. -
Page 16: Data Calibration Settings
Log in Toolbox and go to “Device Settings -> Basic -> Calibration Settings” to enable the calibration and type the calibration value. 5.3.3 Alarm Settings EM500-LGT will upload the current data instantly after the threshold is triggered. Mobile APP Configuration: Open Toolbox APP and go to “Device -> Setting -> Threshold Settings”to enable the threshold... -
Page 17: Installation
EM500-LGT User Guide Software Configuration: Log in Toolbox and go to “Device Settings -> Basic -> Threshold Settings” to enable the calibration and input the calibration value. Installation 6.1 Transceiver Installation 6.1.1 Wall Mounting 1. Attach the mounting bracket to the wall and mark the two holes(around 16mm) on the wall. -
Page 18: Din Rail Mounting
EM500-LGT User Guide 6.1.3 DIN Rail Mounting Use 2 pieces of M3 × 6 flat head Phillips screws to fix the DIN rail to the device, and then hang the DIN rail on the mounting bracket. It is necessary to choose a standard bracket. -
Page 19: Payload Format
03(Set Reporting Interval) b0 04 => 04 b0 = 1200 8.Sensor Management via Ursalink Cloud Ursalink cloud is a comprehensive platform that provides multiple services including device remote management and data visualization with the easiest operation procedures. 8.1 Ursalink Cloud Registration Register and log in Ursalink Cloud. -
Page 20: Add A Ursalink Lorawan Gateway
EM500-LGT User Guide 8.2 Add a Ursalink LoRaWAN Gateway 1. Enable “Ursalink” type network server and “Ursalink Cloud” mode in gateway web GUI. Note: Ensure gateway has accessed the Internet. -
Page 21: Add Em500-Lgt To Cloud
3.Check if gateway is online in Ursalink Cloud. 8.3 Add EM500-LGT to Cloud 1. Go to “Device->My Devices” and click “Add Device”. Fill in the SN of EM500-LGT and select associated gateway. 2.After EM500-LGT is connected to Ursalink Cloud, Click or “History Data”... -
Page 22: Appendix
EM500-LGT User Guide Appendix Default LoRaWAN Parameters 24E124 + 2 to 11 digits of SN DevEUI e.g. SN = 61 26 A1 01 84 96 00 41 Then Device EUI = 24E124126A101849 AppEUI 24E124C0002A0001 Appport 0x55 NetID 0x010203 The 5...
