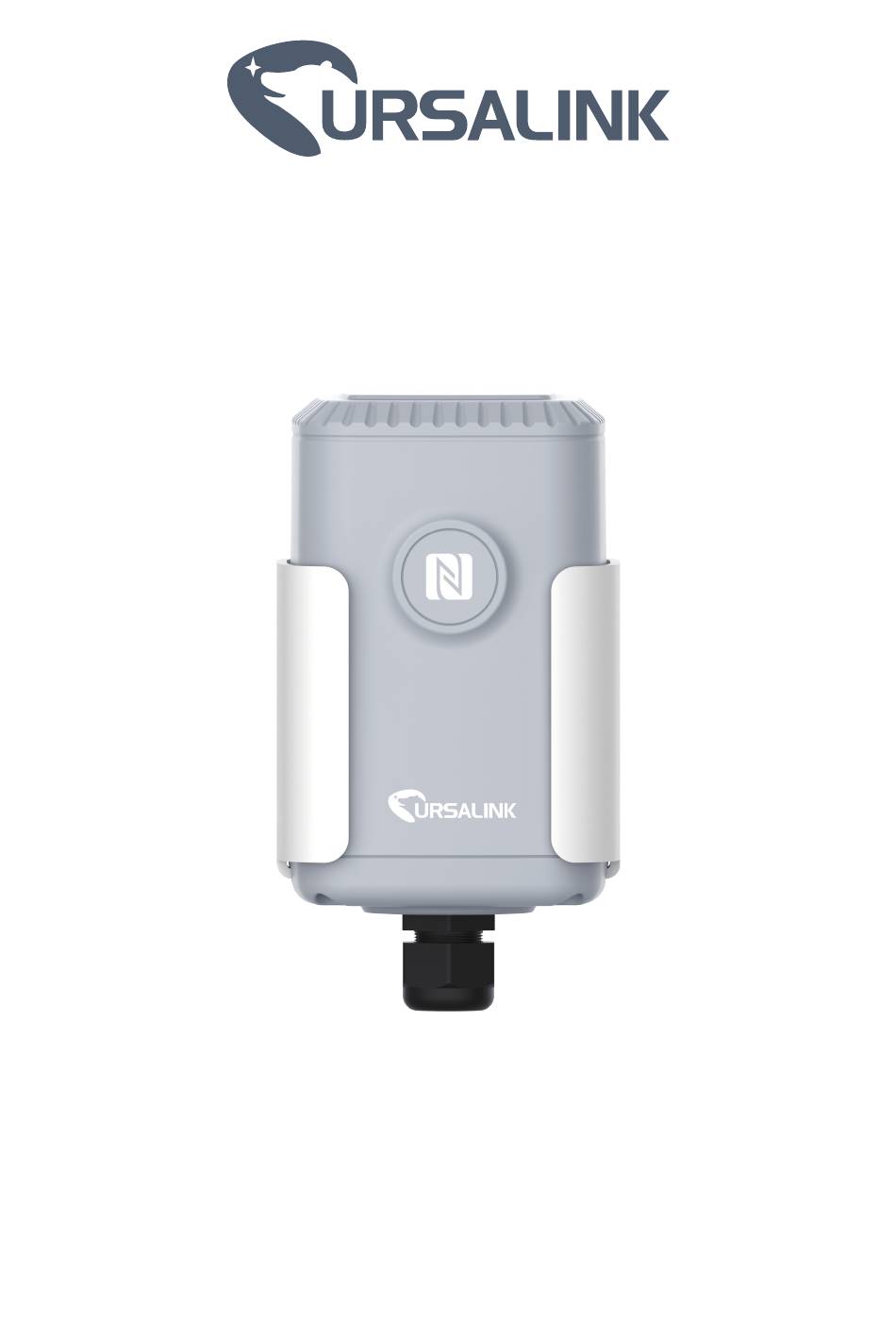

- Page 1 EM500 Series Quick Guide...
- Page 2 1 × EM500 (Include sensor) 1 × Hose Clamp 2 × Mounting Screws 1 × Quick Guide 1 × Warranty Card...
- Page 3 Front: ① 1. LoRa Antenna (Internal) ② 2. NFC Area 3. Waterproof Connector （Connectors may differ according to the sensor types） ③ Back: ④ 4. Battery (Internal) ⑤ 5. Wall Mounting Holes 6. Pole Mounting Holes ⑥...
-
Page 4: Install The Sensor
Install the Sensor (Note: For device with external sensor only) 1. Take off the mounting bracket, remove the cap, rubber seal and the screws on the bottom of the device, and then take off the enclosure cover. 2. Pass the cable through the cap, rubber seal and enclosure cover. - Page 5 3. Pull out the motherboard, insert and lock the wires according to the label attached. 4. Put the motherboard back and restore everything in its due position. Power Button ③ ④...
- Page 6 Turn On/Off EM500 Series Hardware: 1. Remove screws on the bottom of EM500 and take off the upper case, you can find the button beside the battery. 2. Turn on/off: Press the button for 3s to 10s until LED blinks.
-
Page 7: Windows Software
Windows Software: Connect NFC reader to your PC, open “Toolbox” and attach your EM500 to the NFC reader to turn it on or off. Toolbox Download: Windows： https://resource.ursalink.com/software/ toolbox.exe Android：... -
Page 8: Wall Mounting
Mount the EM500 Series Wall Mounting： Pole Mounting： Tel: +86-592-5023060 Web: www.ursalink.com Email: contact@ursalink.com...
