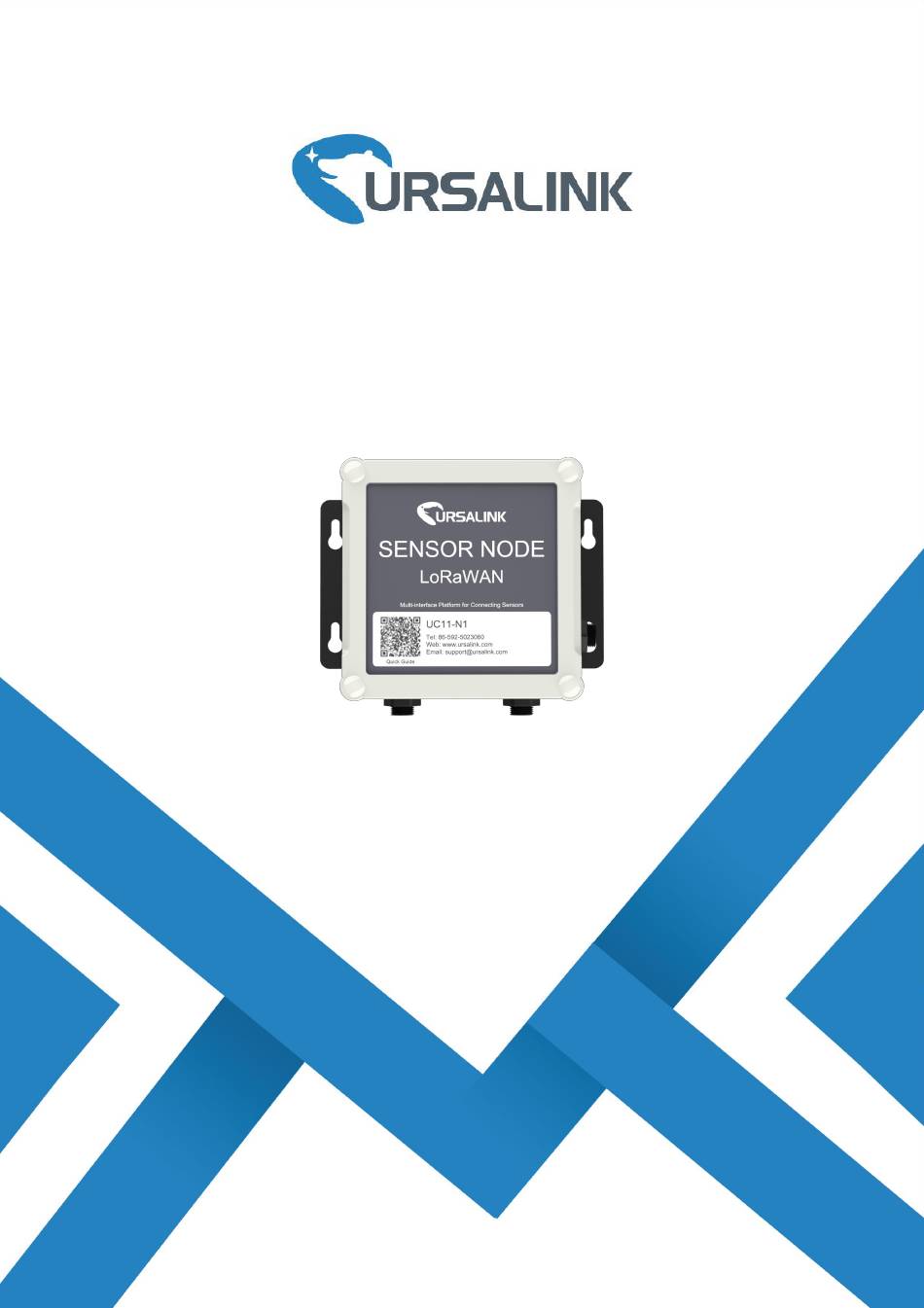

UC11-N1
Quick Start Guide
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UC11-N1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ursalink UC11-N1

Summary of Contents for Ursalink UC11-N1

  • Page 1 UC11-N1 Quick Start Guide...

  • Page 2: Related Documents

    Thank you for choosing Ursalink UC11-N1. This guide will teach you how to install the UC11-N1 and how to connect to Ursalink Cloud. Once you complete the installation, refer to the Ursalink UC11-N1 User Guide on how to perform configurations on the device.

  • Page 3: Package Contents

    Ursalink UC11-N1 Quick Start Guide 1. Packing List Before you begin to install the UC11-N1, please check the package contents to verify that you have received the items below. 1.1 Package Contents 1 × UC11-N1 Device 2 × Data Cable 1 ×...

  • Page 4: Pole Mounting

    2.3 Turn ON/OFF UC11-N1 Place the magnet on the sign “U” to turn on/off UC11-N1. Power on: Beep for 2 seconds Power off: Beep for 6 seconds www.ursalink.com...

  • Page 5: Getting Started

    Getting Started 4. Connect to Ursalink Cloud 4.1 Configure UC11-N1 via Toolbox Please connect PC and UC11-N1 directly via USB ports and open the Toolbox. Select Serial port and fill in the default login password: “123456”, and then click “Save”. ①...
  • Page 6 Ursalink UC11-N1 Quick Start Guide Click “General/Serial” to configure RS485 property and channel. ④ www.ursalink.com...
  • Page 7 Ursalink UC11-N1 Quick Start Guide In this Quick Start Guide, UC11-N1 connects with two equipment (light sensor and wind speed sensor), both sensors use Modbus RS485. Sensor property Sensor Serial Port Slave ID Register Type Light Sensor 9600 8N1 Holding Register (INT16)
  • Page 8 Ursalink UC11-N1 Quick Start Guide Click “General/AI” to configure analog input. ⑥ www.ursalink.com...
  • Page 9 Ursalink UC11-N1 Quick Start Guide 4.2 Ursalink Gateway Configuration Enable network server and mode as “Ursalink Cloud”. 4.3 Ursalink Cloud Configuration Register an Ursalink cloud account ① www.ursalink.com...
  • Page 10 Ursalink UC11-N1 Quick Start Guide Log in Ursalink Cloud and go to “Gateway/Add” to fill in the gateway SN and click “add”. ② Go to “My Devices” and click “add”. Fill in the SN of the UC11-N1 and select associated gateway. ③ www.ursalink.com...
  • Page 11 Ursalink UC11-N1 Quick Start Guide Click to configure the UC11-N1 from Ursalink cloud and add channel for the Modbus. ④ Note: Channel name should be as same as the one set in UC11-N1. Check "Data” that connects with UC11-N1. ⑤...
  • Page 12 Ursalink UC11-N1 Quick Start Guide Note: For More details, please refer to the UC11-N1 user guide. [END] www.ursalink.com...
