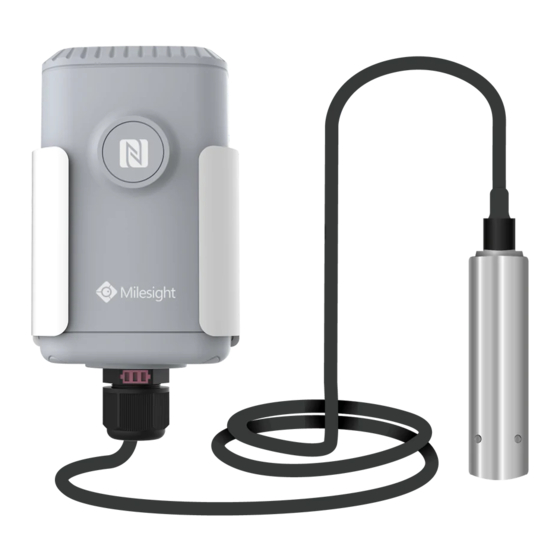

Summary of Contents for Ursalink EM500-SWL
- Page 2 Please clarify your application environment before deployment, in case the device can function well. The device is not intended to be used as a reference sensor, and Ursalink will not should responsibility for any damage which may result from inaccurate readings.
-
Page 3: Table Of Contents
6.1.3 DIN Rail Mounting....................18 6.2 Sensor Installation.......................18 7. Payload Format..........................19 8.Sensor Management via Ursalink Cloud..................20 8.1 Ursalink Cloud Registration....................20 8.2 Add a Ursalink LoRaWAN Gateway..................20 8.3 Add EM500-SWL to Cloud....................21 Appendix............................23 Default LoRaWAN Parameters....................23 Default Uplink Channels......................23... -
Page 4: Overview
Sensor data are transmitted in real-time using standard LoRaWAN protocol. LoRaWAN enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Ursalink Cloud or thr ough the user's own Network Server. -
Page 5: Hardware Introduction
1 × EM500-SWL 2 × Mounting 1 × Hose 1 × Warranty Card 1 × Quick Guide (Include sensor) Screws Clamp 1 × DIN Rail (Optional) If any of the above items is missing or damaged, please contact your Ursalink sales representative. -
Page 6: Transceiver Overview
EM500-SWL User Guide 2.2 Transceiver Overview Front View: ①LoRa Antenna (Internal) ②NFC Area ③Water-proof Connector with Vent Back View: ④Battery (Internal) ⑤Wall Mounting Holes ⑥Pole Mounting Holes 2.3 Dimensions(mm) 3. Assembly and Preparation 3.1 Sensor Assembly Follow the steps below to connect light sensor cable to EM500 transceiver if they are... -
Page 7: Insulating Sheet Disassembly
EM500-SWL User Guide 2. Pass the cable through the cap, rubber seal 1. Take off the mounting bracket, remove the cap, and enclosure cover. rubber seal and the screws on the bottom of the device, and then take off the enclosure cover. -
Page 8: Turn On/Off And Reset (Power Button)
EM500-SWL User Guide 4. Turn ON/OFF and Reset (Power Button) The LED indicator is inside the device. EM500-SWL can also be turned on/off and reset via Mobile APP or Toolbox. Function Action LED Indication Press and hold the button for more than Turn On Off →... -
Page 9: Read/Write Configuration Via Nfc
EM500-SWL User Guide 5.1.1 Read/Write Configuration via NFC 1. Enable NFC on the smartphone and open “Toolbox” APP. 2. Attach the smartphone with NFC area to the device to read basic information. Note: Ensure your smartphone NFC area and it is recommended to take off phone case before using NFC. -
Page 10: Template Configuration
EM500-SWL User Guide 5.1.2 Template Configuration Template settings are used for easy and quick device configuration in bulk. Note: Template function is allowed only for sensors with the same model and LoRa frequency band. 1. Go to “Template” page on the APP and save current settings as a template. -
Page 11: Configuration Via Pc
Make sure “Toolbox” is downloaded on your computer. Select one of the following methods to log in Toolbox. Type-C Connection 1. Connect the EM500-SWL to computer via type-C port. Type-C port is inside the transceiver of the EM500-SWL. 2. Select type as “General” and click password to log in Toolbox. (Default password: 123456) -
Page 12: Basic Configuration
EM500-SWL User Guide NFC Connection 1. Connect the NFC reader to computer, then attach the EM500-SWL to NFC area of the reader. 2. Select type as “NFC” and serial port as NFC reader port on Toolbox. 5.2.2 Basic Configuration 1. Click “Read” to read current data of the sensor. -
Page 13: Template Settings
EM500-SWL User Guide 2. When you perform one of the following operations, type the password and click “Enter”, then wait a few seconds until toolbox shows a successful prompt. (Password is not needed if you connect it via type-C port) Turn on/off the sensor ... -
Page 14: Upgrade
Note: If NFC connection is selected, please keep the two devices close and don’t move them in order to get the best connectivity as possible when upgrading. 5.3 Configuration Examples 5.3.1 LoRaWAN Channel Settings The configuration of LoRaWAN channel of EM500-SWL must match the LoRaWAN gateway’s. Refer to Appendix to check default channel settings of EM500-SWL. -
Page 15: Data Calibration Settings
EM500-SWL User Guide Note: If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas. Examples: 1, 40: Enabling Channel 1 and Channel 40... -
Page 16: Alarm Settings
EM500-SWL User Guide 5.3.3 Alarm Settings EM500-SWL will upload the current data instantly after the threshold is triggered. Mobile APP Configuration: Open Toolbox APP and go to “Device -> Setting -> Threshold Settings”to enable the threshold settings and input the threshold. -
Page 17: Installation
EM500-SWL User Guide Installation 6.1 Transceiver Installation 6.1.1 Wall Mounting 1. Attach the mounting bracket to the wall and mark the two holes(around 16mm) on the wall. Note: The connecting line of two holes must be a horizontal line. 2. Drill the holes according to the marks and screw the mounting screws into the wall. -
Page 18: Din Rail Mounting
EM500-SWL User Guide 6.1.3 DIN Rail Mounting Use 2 pieces of M3 × 6 flat head Phillips screws to fix the DIN rail to the device, and then hang the DIN rail on the mounting bracket. It is necessary to choose a standard bracket. -
Page 19: Payload Format
EM500-SWL User Guide 7. Payload Format All data are based on following format: Channel1 Type1 Data1 Channel2 Type2 Data2 Channel 3 1 Byte 1 Byte N Bytes 1 Byte 1 Byte M Bytes 1 Byte Please refer to decoder example: https://github.com/Ursalink-CN/ursalink-decoder... -
Page 20: Sensor Management Via Ursalink Cloud
8.1 Ursalink Cloud Registration Register and log in Ursalink Cloud. Ursalink Cloud URL: https://cloud.ursalink.com/login.html 8.2 Add a Ursalink LoRaWAN Gateway 1. Enable “Ursalink” type network server and “Ursalink Cloud” mode in gateway web GUI. Note: Ensure gateway has accessed the Internet. -
Page 21: Add Em500-Swl To Cloud
2.Go to “My Devices->Gateway” of Ursalink Cloud and click “Add” to add gateway to Ursalink Cloud via SN. 3.Check if gateway is online in Ursalink Cloud. 8.3 Add EM500-SWL to Cloud 1. Go to “Device->My Devices” and click “Add Device”. Fill in the SN of EM500-SWL and select associated gateway. - Page 22 EM500-SWL User Guide 2.After EM500-SWL is connected to Ursalink Cloud, Click or “History Data” to check the data on Ursalink cloud.
-
Page 23: Appendix
EM500-SWL User Guide Appendix Default LoRaWAN Parameters 24E124 + 2 to 11 digits of SN DevEUI e.g. SN = 61 26 A1 01 84 96 00 41 Then Device EUI = 24E124126A101849 AppEUI 24E124C0002A0001 Appport 0x55 NetID 0x010203 The 5...
