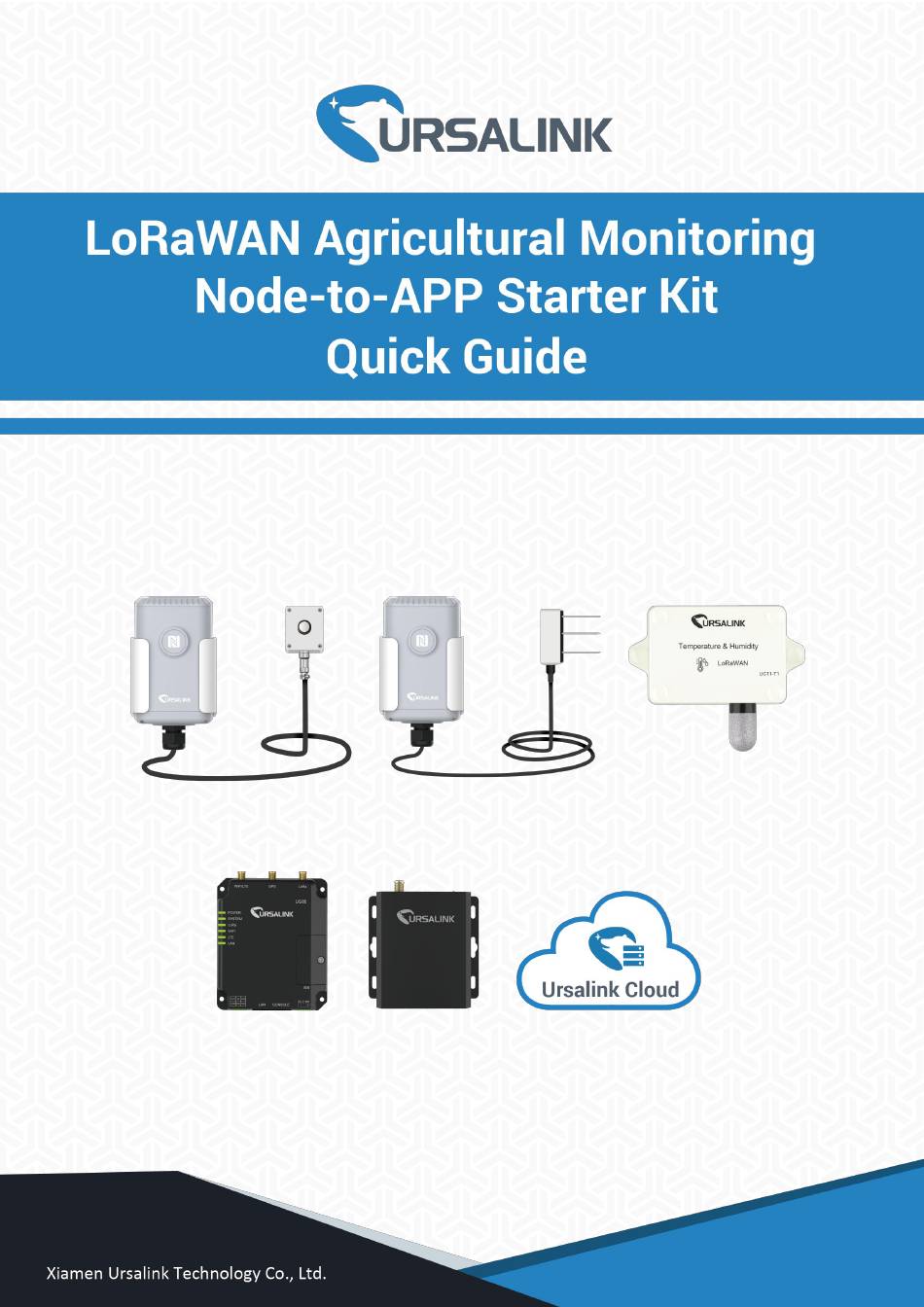

Ursalink UG85 Quick Manual

Lorawan agricultural monitoring node-to-app starter kit
Hide thumbs Also See for UG85:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Ursalink UG85

Summary of Contents for Ursalink UG85

  • Page 2  The kit must not be remodeled in any way.  UC11-T1 and EM500 are not intended to be used as reference sensors, and Ursalink will not should responsibility for any damage which may result from inaccurate readings.

  • Page 3: Table Of Contents

    6.2.2 Windows Software Configuration................15 7. Ursalink Cloud Configuration......................16 7.1 Ursalink Cloud Registration....................16 7.2 Add a UG85 to Cloud......................17 7.3 Add Ursalink LoRaWAN Nodes to Cloud................17 8. Hardware Installation........................19 8.1 UG85 Installation.........................19 8.2 UC11-T1 Installation......................19 8.3 UC1114 Installation......................19 8.4 EM500 Installation......................

  • Page 4: Overview

    LoRaWAN Agricultural Kit Quick Guide 1. Overview 1.1 Description Ursalink LoRaWAN Agricultural Monitoring Node-to-App Starter Kit is designed for simplifying the process of PoC about LoRaWAN network establishment and remote monitoring for the agricultural environment. More information about every product available https://www.ursalink.com/en/documents-download/...

  • Page 5: Software Preparation

    Mounting Screws Hose Clamps EM500-SMT-MEC20 EM500-LGT (For EM500) Please contact your Ursalink sales representative if the following situations occurs: Any of above items is missing or damaged;  Other accessories or device models are required for your application.  2.2 Software Preparation...

  • Page 6: Ug85 Gateway Configuration

    Default settings of UG85: IP Address: 192.168.23.150 Username: admin Password: password 3.2.1 Login the Web GUI A. Connect PC to LAN port of UG85 directly. Go to “Control Panel”→“Network and Internet”→”Network and Sharing Center” of the PC and click “Ethernet”.
  • Page 7 Internet Protocol Version 4(TCP/IPv4)” to configure a static IP address manually and save the configuration. D. Open a web browser on your PC (Chrome and IE are recommended) and type in the IP address 192.168.23.150. Enter the username and password to “Login” the web GUI of UG85.

  • Page 8: Network Connection

    LoRaWAN Agricultural Kit Quick Guide 3.2.2 Network Connection UG85 supports Ethernet, cellular(3G/4G) and Wi-Fi(option) backhaul. This guide will introduce how to make gateway access the network via Ethernet and cellular network. 3.2.2.1 Configure the WAN Connection A. Go to “Network”→ “Interface” → “Port” page to select the connection type and configure WAN information.
  • Page 9 C. Click “Save” and “Apply” for configuration to take effect. UG85 has two cellular interfaces named SIM1 & SIM2. Only one cellular interface is active at one time. If both cellular interfaces are enabled, SIM1 interface takes precedence by default.

  • Page 10: Network Server Configuration

    LoRaWAN Agricultural Kit Quick Guide 3.2.3 Network Server Configuration A. Go to “Packet Forwarder” → “General” page to enable the “Ursalink” type server. B. Go to “Network Server” → “General” page to enable the network server and Ursalink Cloud mode.

  • Page 11: Uc11-T1 Configuration

    LoRaWAN Agricultural Kit Quick Guide 4. UC11-T1 Configuration 4.1 Turn ON/OFF UC11-T1 Place the magnet on the sign “U” about 2s to turn on/off UC11-T1. Power on: Beep for 2 seconds Power off: Beep for 6 seconds 4.2 USB Configuration This chapter can be skipped if you don’t need to change the basic settings of UC11-T1.

  • Page 12: Uc1114 Configuration

    LoRaWAN Agricultural Kit Quick Guide C. Connect UC11-T1 to Laptop with standard D. After configuration, put back the roof USB cable. Configure UC11-T1 via Ursalink cover and screw the screws. Toolbox. 5. UC1114 Configuration 5.1 Antenna Installation Rotate the antenna into the antenna connector accordingly.

  • Page 13: Em500 Configuration

    LoRaWAN Agricultural Kit Quick Guide C. Connect UC1114 to computer via micro USB port and open the Toolbox to configure UC1114 if necessary. 6. EM500 Configuration 6.1 Turn on/off the Sensor 1. Take off the mounting bracket and waterproof case. 2.

  • Page 14: Em500 Configuration

    5. Enter the correct password and wait a few seconds until APP shows “Operate Successful!”. 6. Go to “Device”→ “Settings”→”LoRaWAN Settings” to change the supported frequency and channels according to UG85 radio settings, then click “Write” to save the configurations. Frequency settings can be referred to appendix.

  • Page 15: Windows Software Configuration

    6.2.2 Windows Software Configuration 1. Open configure software “Ursalink Toolbox” on the computer. 2. Connect type-C USB to computer (Type-C port is inside the device). 3. Select type as General and serial port , then type the login password and click “save”.

  • Page 16: Ursalink Cloud Configuration

    5. Click “Power On” to turn on the device or “Power Off” to turn off the device. 6. Go to “LoRaWAN Settings”→”Channel” to change the supported frequency and channels according to UG85 radio settings, then save the configurations. Frequency settings can be referred to appendix.

  • Page 17: Add A Ug85 To Cloud

    Ursalink Cloud URL: https://cloud.ursalink.com/login.html 7.2 Add a UG85 to Cloud 1. Go to “My Devices->Gateway” of Ursalink Cloud and click “Add” to add gateway to Ursalink Cloud via SN. 2. Check if gateway is online in Ursalink Cloud. 7.3 Add Ursalink LoRaWAN Nodes to Cloud 1.
  • Page 18 LoRaWAN Agricultural Kit Quick Guide 2. After all nodes are connected to Ursalink Cloud, Click or “History Data” to check the data on Ursalink cloud. 3. Go to “Dashboard” page to add and edit the dashboard.

  • Page 19: Hardware Installation

    8. Hardware Installation 8.1 UG85 Installation UG85 can be placed on a desktop or mounted onto a wall or a DIN rail. Please contact sales for wall mounting accessories before purchasing. This guide will introduce how to mount the gateway via DIN rail.

  • Page 20: Em500 Installation

    LoRaWAN Agricultural Kit Quick Guide 8.4 EM500 Installation 8.4.1 Sensor Installation EM500-SMT-MEC20 Installation Quick Test: Choose a suitable measurement place, and avoid rocks or other hard objects. Insert the sensor vertically into the soil. Do not rock the probe while inserting it. This method can only make a small range of measurements and needs multiple measurements to get the average value as calibration value.

  • Page 21: Transceiver Installation

    LoRaWAN Agricultural Kit Quick Guide EM500-LGT Installation Be sure place the round area of the sensor always on top and always towards the sun while using 8.4.2 Transceiver Installation EM500 transceiver support wall, pole and DIN rail mounting. Please contact sales for DIN rail mounting accessories before purchasing it.

  • Page 22: Appendix

    3. Use a screwdriver to tighten the locking mechanism by turning it clockwise. Appendix Default Uplink Channels Frequency UG85 UC11-T1/UC1114/EM500 Sensors 433.175, 433.375, 433.575, EU433 433.775, 434.065, 434.265, 434.465, 433.175, 433.375, 433.575 434.665...

  • Page 23: Default Lorawan Parameters

    LoRaWAN Agricultural Kit Quick Guide Default LoRaWAN Parameters DevEUI On the device label. 24E124C0002A0001 AppEUI 24E124C0002A0002 (UC1114) Appport 0x55 NetID 0x010203 The 5 to 12 digits of SN DevAddr e.g. SN = 61 26 a1 01 84 96 00 41 Then DevAddr = a1018496 AppKey 5572404c696e6b4c6f52613230313823...
