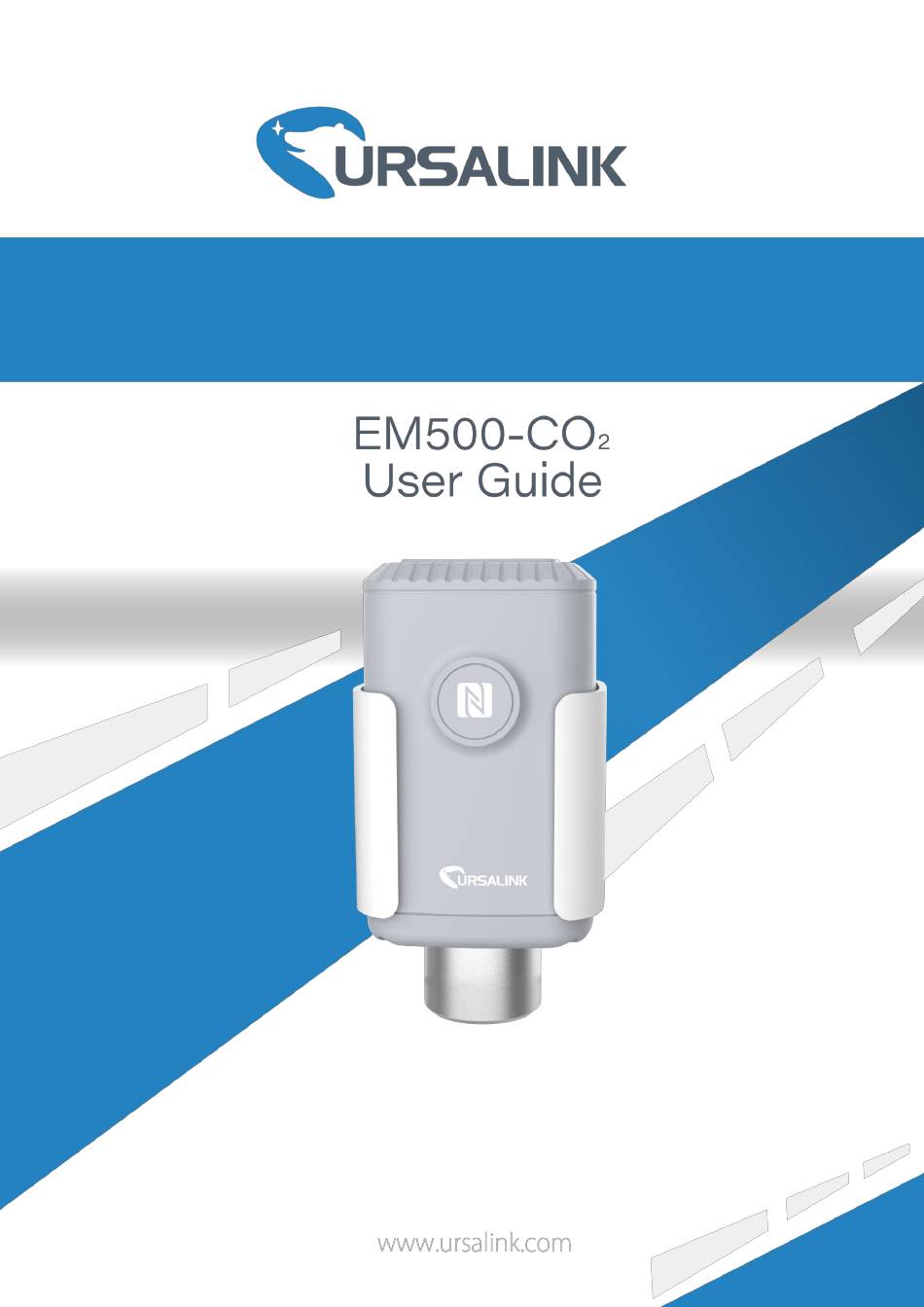

Ursalink EM500-CO2 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EM500-CO2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ursalink EM500-CO2

Summary of Contents for Ursalink EM500-CO2

  • Page 2  Please clarify your application environment before deployment, in case the device can function well.  The device is not intended to be used as a reference sensor, and Ursalink will not should responsibility for any damage which may result from inaccurate readings.

  • Page 3: Table Of Contents

    6.2 Pole Mounting........................17 6.3 DIN Rail Mounting....................... 18 7. Payload Format..........................18 8.Sensor Management via Ursalink Cloud..................19 8.1 Ursalink Cloud Registration....................19 8.2 Add a Ursalink LoRaWAN Gateway..................19 8.3 Add EM500-CO to Cloud....................21 Appendix............................22 Default LoRaWAN Parameters....................22 Default Uplink Channels......................22...

  • Page 4: Overview

    Sensor data are transmitted in real-time using standard LoRaWAN protocol. LoRaWAN enables encrypted radio transmissions over long distance while consuming very little power. The user can obtain sensor data and view the trend of data change through Ursalink Cloud or thr ough the user's own Network Server.

  • Page 5: Hardware Introduction

    1 × EM500-CO 2 × Mounting 1 × Hose 1 × Warranty Card 1 × Quick Guide Screws Clamp 1 × DIN Rail (Optional) If any of the above items is missing or damaged, please contact your Ursalink sales representative.

  • Page 6: Product Overview

    EM500-CO User Guide 2.2 Product Overview Front View: ①LoRa Antenna (Internal) ②NFC Area ③Vent Tube Back View: ④Battery (Internal) ⑤Wall Mounting Holes ⑥Pole Mounting Holes 2.3 Dimensions(mm)

  • Page 7: Insulating Sheet Disassembly

    EM500-CO User Guide Insulating Sheet Disassembly 1. Take off the mounting bracket, remove the lid and screws on the bottom of the device, and then take off the enclosure cover. 2. Pull out the insulating sheet on the side of the battery and check if electrode of the battery is reversed.

  • Page 8: Sensor Configuration

    EM500-CO User Guide 5. Sensor Configuration Ursalink EM500-CO sensor can be monitored and configured via one of the following methods: Mobile APP (NFC);  Windows software (NFC or Type-C port).  In order to protect the security of sensor, password validation is required when turning on/off the sensor or changing configuration.

  • Page 9: Template Configuration

    EM500-CO User Guide 1. Go to “Device > Status” to tap “Read” and attach the smartphone with NFC area to the device to read real-time data of sensor. 5.1.2 Template Configuration Template settings are used for easy and quick device configuration in bulk. Note: Template function is allowed only for sensors with the same model and LoRa frequency band.
  • Page 10 EM500-CO User Guide 4. Enter password of this device and keep the two devices close until the APP shows a successful prompt. 5. Slide the template item to the left to edit or delete the template.

  • Page 11: Configuration Via Pc

    Dedicated NFC Reader or Type-C USB cable  PC (Windows 10)  Toolbox: https://www.ursalink.com/en/software-download/  5.2.1 Log in the Toolbox Make sure “Toolbox” is downloaded on your computer. Select one of the following methods to log in Toolbox. Type-C Connection 1.

  • Page 12: Basic Configuration

    EM500-CO User Guide 5.2.2 Basic Configuration 1. Click “Read” to read current data of the sensor. 2. When you perform one of the following operations, enter the password and wait a few seconds until toolbox shows a successful prompt. (Password is not needed if you connect it via type-C port) Turn on/off the sensor ...

  • Page 13: Template And Reset

    EM500-CO User Guide 5.2.3 Template and Reset 5.2.3.1 Template Configuration Note: Template function is allowed only for sensors with the same model and LoRa frequency band. 1. Go to “Maintenance -> Template and Reset” page in Toolbox. 2. Click “Export” to save the current settings as a template. 3.

  • Page 14: Upgrade

    EM500-CO User Guide 5.2.4.2 Reset Go to “Maintenance -> Template and Reset” page in Toolbox, then click the “Reset” to reset the device to the factory settings. 5.2.4 Upgrade 1. Download firmware on your computer. 2. Go to “Maintenance -> Upgrade” page in Toolbox. 3.

  • Page 15: Data Calibration Settings

    EM500-CO User Guide Mobile APP Configuration: Open Toolbox APP and go to “Device ->Setting -> LoRaWAN Settings”to change the frequency and channels. Software Configuration: Log in Toolbox and go to “LoRaWAN Settings -> Channel” to change frequency and channels. Note: If frequency is one of CN470/AU915/US915, you can enter the index of the channel that you want to enable in the input box, making them separated by commas.

  • Page 16: Alarm Settings

    EM500-CO User Guide Software Configuration: Log in Toolbox and go to “Device Settings -> Basic -> Calibration Settings” to enable the calibration and type the calibration value. 5.3.3 Alarm Settings EM500-CO will upload the current data instantly after the threshold is triggered. Mobile APP Configuration: Open Toolbox APP and go to “Device ->...

  • Page 17: Installation

    EM500-CO User Guide Installation EM500-CO should be considered following notes to insure proper installation: sensor should be mounted no higher than 12-18 inches above the floor since CO  heavier than normal air and will flow down. Installation should be considered the layout of a space. Enclosed spaces or varying spaces ...

  • Page 18: Din Rail Mounting

    Temp=272*0.1=27.2 71=>113 68(Humidity) Hum=113*0.5=56.5 7D(CO 67 04=> 04 67=1127 68 27=> 27 68 =10088 73(Barometric Pressure) 10088*0.1=1008.8 01(Ursalink Protocol 01=> V1.0 Version) 09 (Hardware Version) 01 40=> V1.4 0a(Software Version) 01 14=> V1.14 0b(Power on Notification) 0c(Power off Notification) 0f(Device Type) 00 =>...

  • Page 19: Sensor Management Via Ursalink Cloud

    8.1 Ursalink Cloud Registration Register and log in Ursalink Cloud. Ursalink Cloud URL: https://cloud.ursalink.com/login.html 8.2 Add a Ursalink LoRaWAN Gateway 1. Enable “Ursalink” type network server and “Ursalink Cloud” mode in gateway web GUI. Note: Ensure gateway has accessed the Internet.
  • Page 20 EM500-CO User Guide 2.Go to “My Devices->Gateway” of Ursalink Cloud and click “Add” to add gateway to Ursalink Cloud via SN. 3.Check if gateway is online in Ursalink Cloud.

  • Page 21: Add Em500-Co To Cloud

    8.3 Add EM500-CO to Cloud 1. Go to “Device->My Devices” and click “Add Device”. Fill in the SN of EM500-CO and select associated gateway. 2.After EM500-CO is connected to Ursalink Cloud, Click or “History Data” to check the data on Ursalink cloud.

  • Page 22: Appendix

    EM500-CO User Guide Appendix Default LoRaWAN Parameters 24E124 + 2 to 11 digits of SN DevEUI e.g. SN = 61 26 A1 01 84 96 00 41 Then Device EUI = 24E124126A101849 AppEUI 24E124C0002A0001 Appport 0x55 NetID 0x010203 The 5 to 12 digits of SN DevAddr...
